Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
5.3 Relay Rack / Equipment Cabinet Frame Grounding Connection
For relay rack / equipment cabinet frame grounding requirements, refer to the current edition of the American National Standards
Institute (ANSI) approved National Fire Protection Association's (NFPA) National Electrical Code (NEC), applicable local codes, and
your specific site requirements.
Attach a customer grounding network lead to the equipment mounting rack per site requirements. Holes are provided on the top of
each relay rack for installing a lead with a two-hole lug that has 1/4" bolt clearance holes on 5/8" centers. When using 1/4-inch
hardware, recommended torque is 84 in-lbs. when a standard flat washer and lock washer are used. Refer to Figure 5.1 for locations.
NOTE!
REMOVE TAPE FROM HOLE LOCATIONS BEFORE INSTALLING LUG.
NOTE!
The DC return connection to this system can remain isolated from system frame and chassis (DC-I).
NOTE!
This system is suitable for installation as part of the Common Bonding Network (CBN).

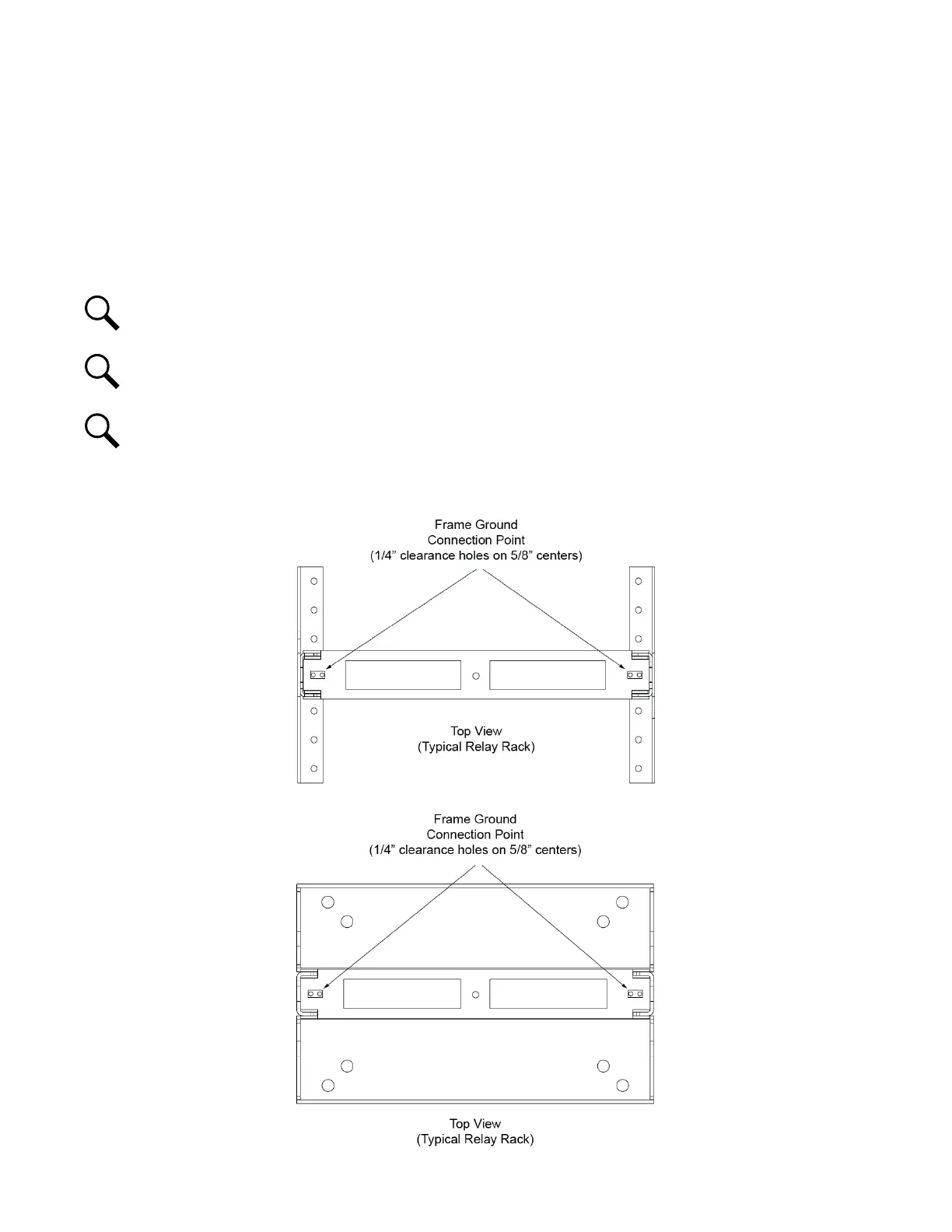

Figure 5.1 Relay Rack Frame Grounding Connection Points
