Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
122

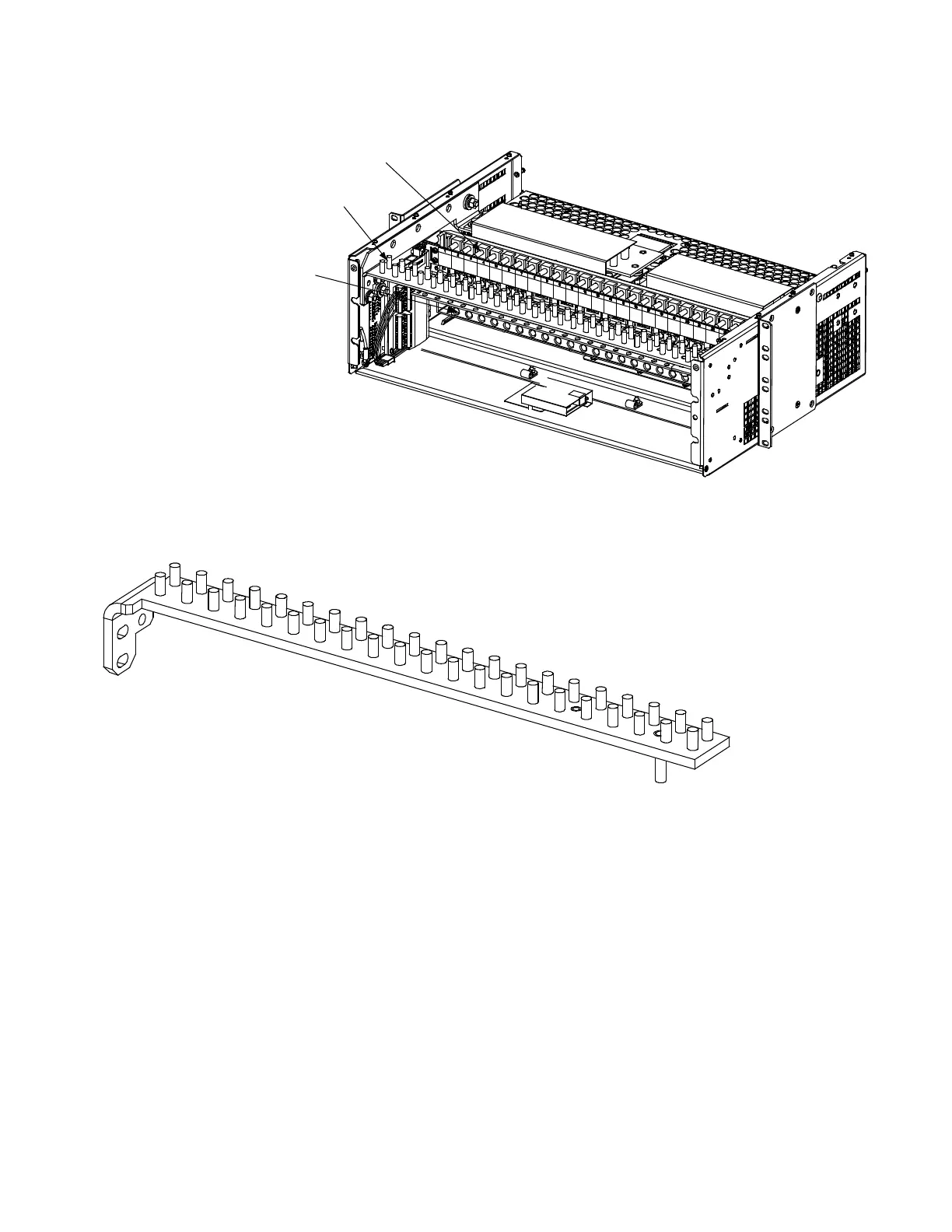

Figure 5.35 Load Return Side Connections in a List 20, 25 Distribution Cabinet
Distribution Row
(see previous page)
Load Return Bus
Load Return Bus
Load Bus
(see previous page)
Components removed in
illustration for clarity.
F
ront
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Load return busbar can
be rotated 90 degrees
(to route wiring through
top of cabinet). When
rotated, cable lugs will
be above top of cabinet.
