Load Connections to Single Voltage Plus Battery Disconnect Distribution Panels in a List 20, 25
Distribution Cabinet

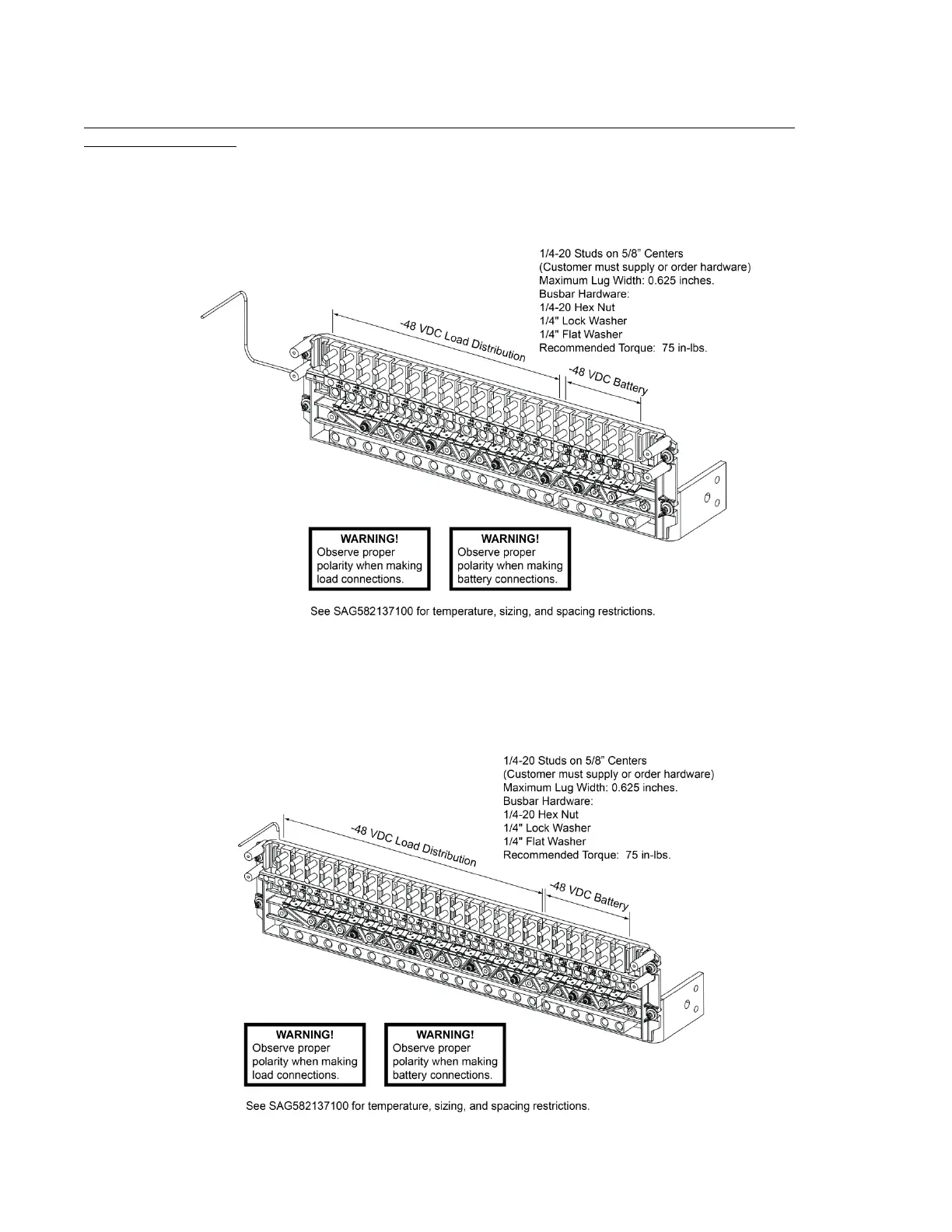

Figure 5.38 List BN Load Connections in a List 20 Distribution Cabinet
(14) -48 VDC Load Bullet/TPS/TLS Circuit Breaker/Fuse Positions and
(5) -48 VDC Battery Disconnect Bullet/TPS/TLS Circuit Breaker/Fuse Positions
Figure 5.39 List BA Load Connections in a List 25 Distribution Cabinet
(18) -48 VDC Load Bullet/TPS/TLS Circuit Breaker/Fuse Positions and
(6) -48 VDC Battery Disconnect Bullet/TPS/TLS Circuit Breaker/Fuse Positions
