Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
127

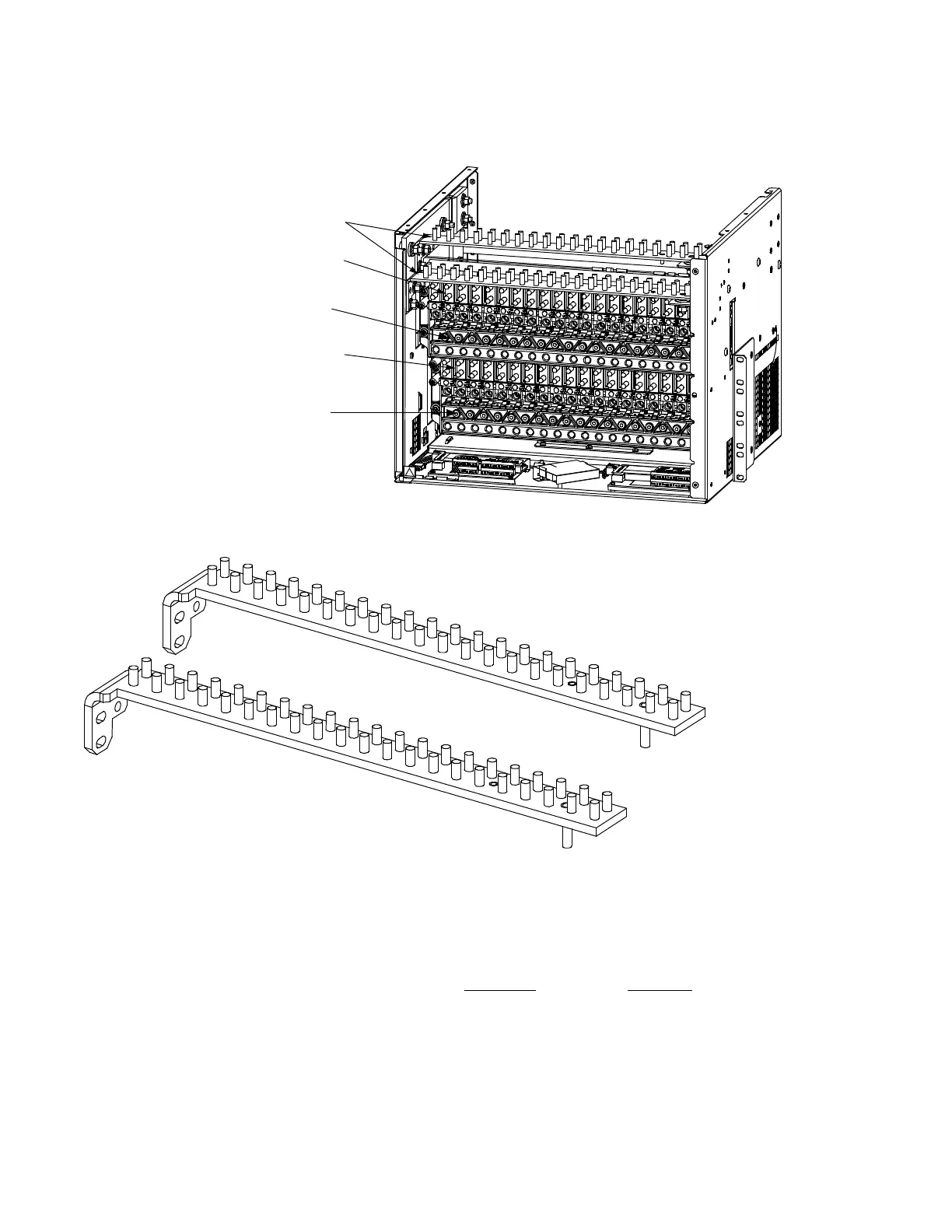

Figure 5.42 Load Return Side Connections in a List 21, 26 Distribution Cabinet
Components removed in
illustration for clarity.
Load Return Bus
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Note: If you have a larger cable, use the lug adapter kits as
follows and connect the flat busbar adapter piece to the top
return bar:
Rear Feed Top Feed
2-pole - 559804 2-pole - 563191
3-pole - 559805 3-pole - 563193
You could also use the “Special Application Crimp
Lug/Strap Combination” listed in SAG582137100 and
connect to either return bar.
Bottom Distribution Row
(see previous page)
Top Distribution Row
(see previous page)
Load Return Bus
Load Bus
(see previous page)
Load Bus
(see previous page)
Front
Load return busbars can
be rotated 90 degrees
(to route wiring through
top of cabinet).
Load return busbars can
be rotated 90 degrees
(to route wiring through
top of cabinet). When
rotated, cable lugs will
be above top of cabinet.
