Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
144

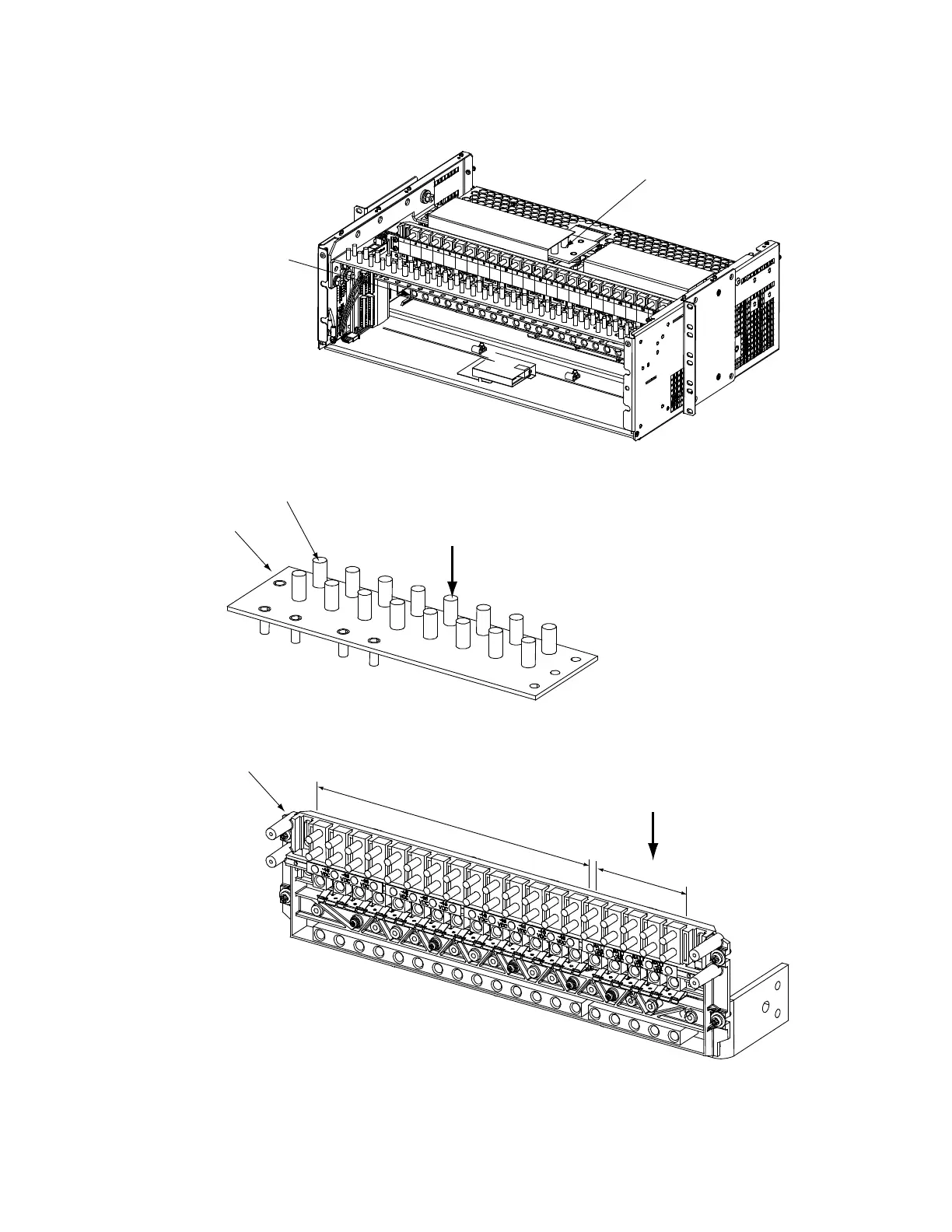

Figure 5.67 Battery and Central Office Ground Connections to List 20, 25 Battery Disconnect Distribution Positions
Central Office Ground
GND RTN
Front
Rear
Battery Return Bus
Distribution row shown for sample only.
Other configurations available.
-48V SUPPLY
Distribution Row
-48 VDC Load Distribution
-48 VDC Battery
3/8-16” Studs on 1” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 1.062 inches.
H
ardware:
3/8" Hex Nut
3/8" Lock Washer
3/8" Flat Washer
Torque to 300 in-lbs.
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Distribution Row
Components removed in
illustration for clarity.
Front
Battery Return Bus
List 25 Shown, List 20 Similar
