Vertiv NetSure 5100 Series Installation Manual

Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
151

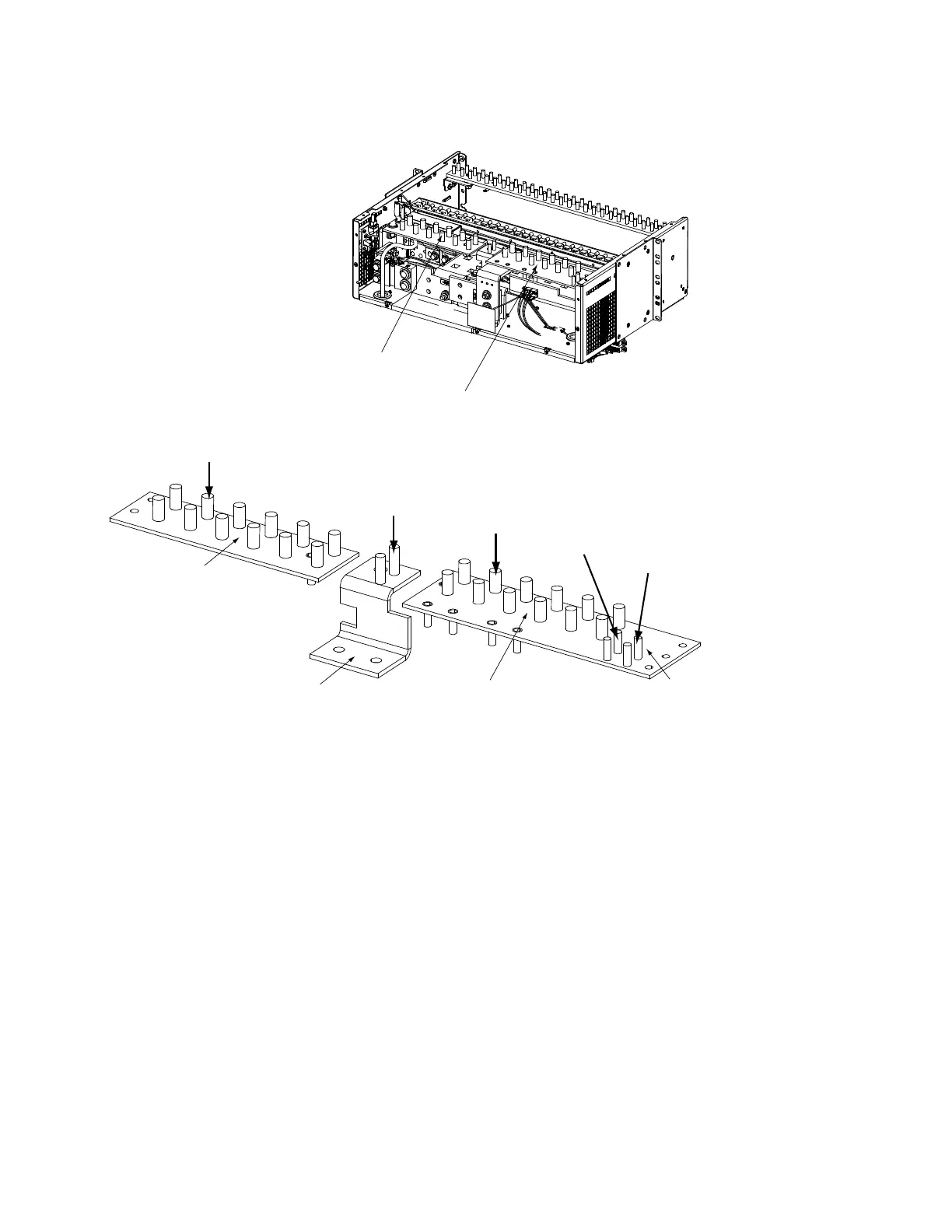

Figure 5.76 Battery, Remote DU, and Central Office Ground Connections to List 27 Distribution Cabinet Battery Busbars
Components removed in
illustration for clarity.
B
attery Return Bus
Battery (Load Side) Bus
Rear
GND RTN
-48V SUPPLY
Central
Office
Ground
Remote
Distribution
Unit (DU)
Return
Remote
Distribution
Unit (DU)
-48V Supply
Battery Return Bus
3/8-16” Studs on 1” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 1.062 inches.
Hardware:
3/8" Hex Nut
3/8" Lock Washer
3/8" Flat Washer
Torque to 300 in-lbs.
Battery (Load Side) Bus
3/8-16” Studs on 1” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 1.062 inches.
Hardware:
3/8" Hex Nut
3/8" Lock Washer
3/8" Flat Washer
Torque to 300 in-lbs.
Remote Distribution Unit (DU)
-48 VDC Supply Bus
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
Remote Distribution Unit (DU)
Return Bus
1/4-20 Studs on 5/8” Centers
(Customer must supply or order hardware)
Maximum Lug Width: 0.625 inches.
Busbar Hardware:
1/4-20 Hex Nut
1/4" Lock Washer
1/4" Flat Washer
Recommended Torque: 75 in-lbs.
