Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
156

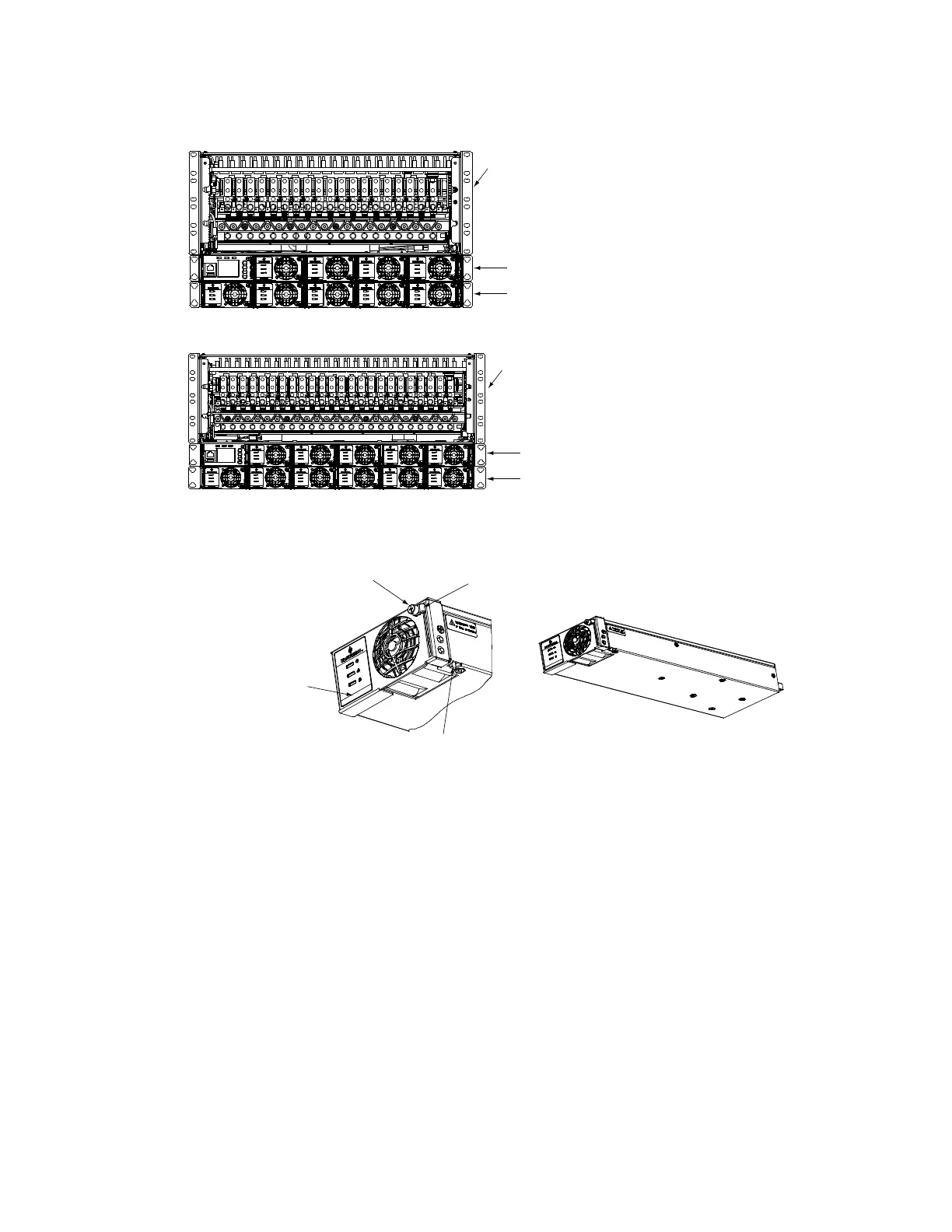

Figure 6.3 Installing Rectifier and Solar Converter Modules (List 20, 25)
Rectifier or Converter Module
Model Number Label
(
R48-2000e3 Rectifier)
(S48-2000e3 Solar Converter)
Captive Screw
Latch
Handle
Up to Four (4) Additional Module Mounting Shelves
588705300 List 41, 44, 45: Rectifie r, Solar
Converter Mounting Positions
(See PD588705300)
19-inch, 1-Row
Distribution Cabinet
One (1) Module Mounting Shelf w/ Controller
588705300 List 31, 34, 35: Controlle r, Rectifier,
Solar Converter Mounting Positions
(See PD588705300)
Up to Four (4) Additional Module Mounting Shelves
588705300 List 21, 24, 25: Rectifie r,
Solar Converter Mounting Positions
(See PD588705300)
One (1) Module Mounting Shelf w/ Controller
588705300 List 11, 14, 15: Controlle r, Rectifier,
Solar Converter Mounting Positions
(See PD588705300)
23-inch, 1-Row
Distribution Cabinet
Front
Front
