Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
24

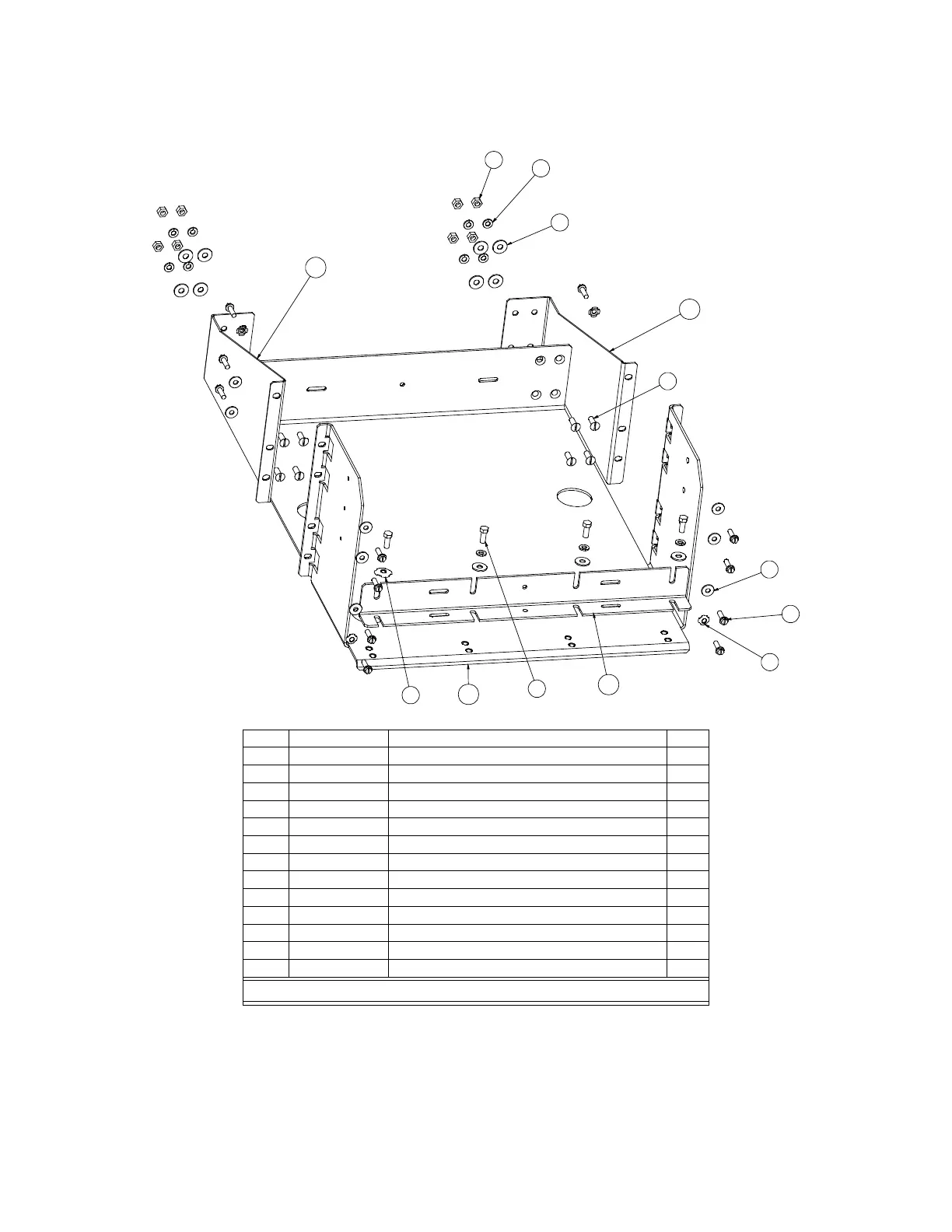

Figure 3.15 559812 Battery Tray
PARTS/MATERIAL LIST
INDEX PAR
T NO. DESCRIPTION QTY
1 228557100 NUT, - HEX -, 1/4-20 8
2 227640300 HHCS, 1/4-20 X 5/8 4
3 224430600 FH, 1/4-20 X 3/4 8
4 218710600 TFHH, 12-24 X 3/4 14
5 215640800 GND.W, 1/4 1
6 215640600 GND.W, 10/12 4
7 215111100 LW, 1/4, .489 OD, .062 THK 11
8 214110200 FW, 1/4, .734 OD, .063 THK 11
9 214109200 FW, NO.12, .625 OD, .063 THK 10
10 SXA2300205/1 BRACKET, BATTERY 1
11 SXA2300202/1 BRKT, BATT TRAY, RIGHT, MTG 1
12 SXA2300203/1 BRKT, BATT TRAY, LEFT, MTG 1
13 SXK2300204/1 TRAY, BATTERY, 19" MTG 1
1
2
3
4
5
6
7
8
9
11
13
12
10
559812
