Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
43

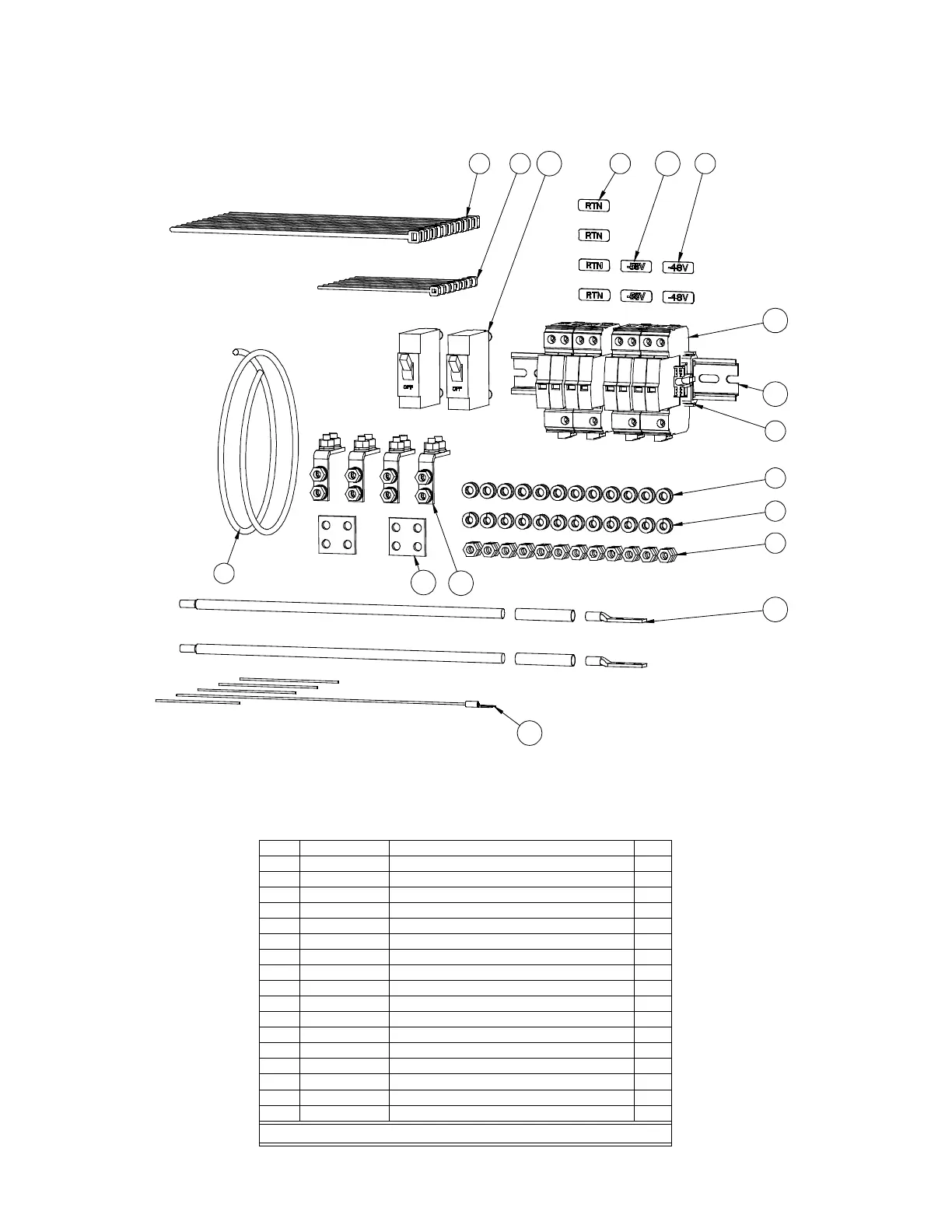

Figure 3.29 60051981 Kit Contents
1 3
8
9
6
16
17
11
2
10
EACH OF QTY (2) CABLE KITS
CONSISTS OF QTY. (6) CABLES
5
14
12 4
7
13
15
PARTS/MATERIAL LIST
INDEX PART NO. DESCRIPTION QTY
1 P88555 CBL TIE, 8.5" LONG, 40 LBS, UV RESIST 12
2 P59888A CABLE, 2PAIR/24 SOLID TINNED, INSIDE WIRE 8 ft
3 P18298 TY-RAP, 4.0" LONG, EXPENSE / BULK 8
4 545677DCP LABEL, POWER BUS, -48V 2
5 545676DCP LABEL, BUSBAR, RTN 4
6 118175DCP END CLAMP, DIN RAIL 3
7 228557100 NUT, - HEX -, 1/4-20 24
8 215111100 LW, 1/4, .489 OD, .062 THK 24
9 214110100 FW, 1/4, .500 OD, .063 THK 24
10 60056635 KIT, JUMPERS, SPD ALARM 1
11 60056563 KIT, CABLES, 6GA, SPD FIELD INSTALLATION 2
12 60028661 LABEL, BUS BAR, -58V 2
13 60016097 ADAPTER, 2 LUG, PLATE 2
14 10034885 SPD, VAL-SEC-T2-2+0-48DC-FM, 2907865 PHOENIX 4
15 559803 KIT, ADAPTER, 1 POLE 4
16 121449 DIN RAIL, 35MM X 7.5MM, 5.00" LONG 1
17 101609 BRKR, BULLET NOSE, 75A, 80VDC 2
