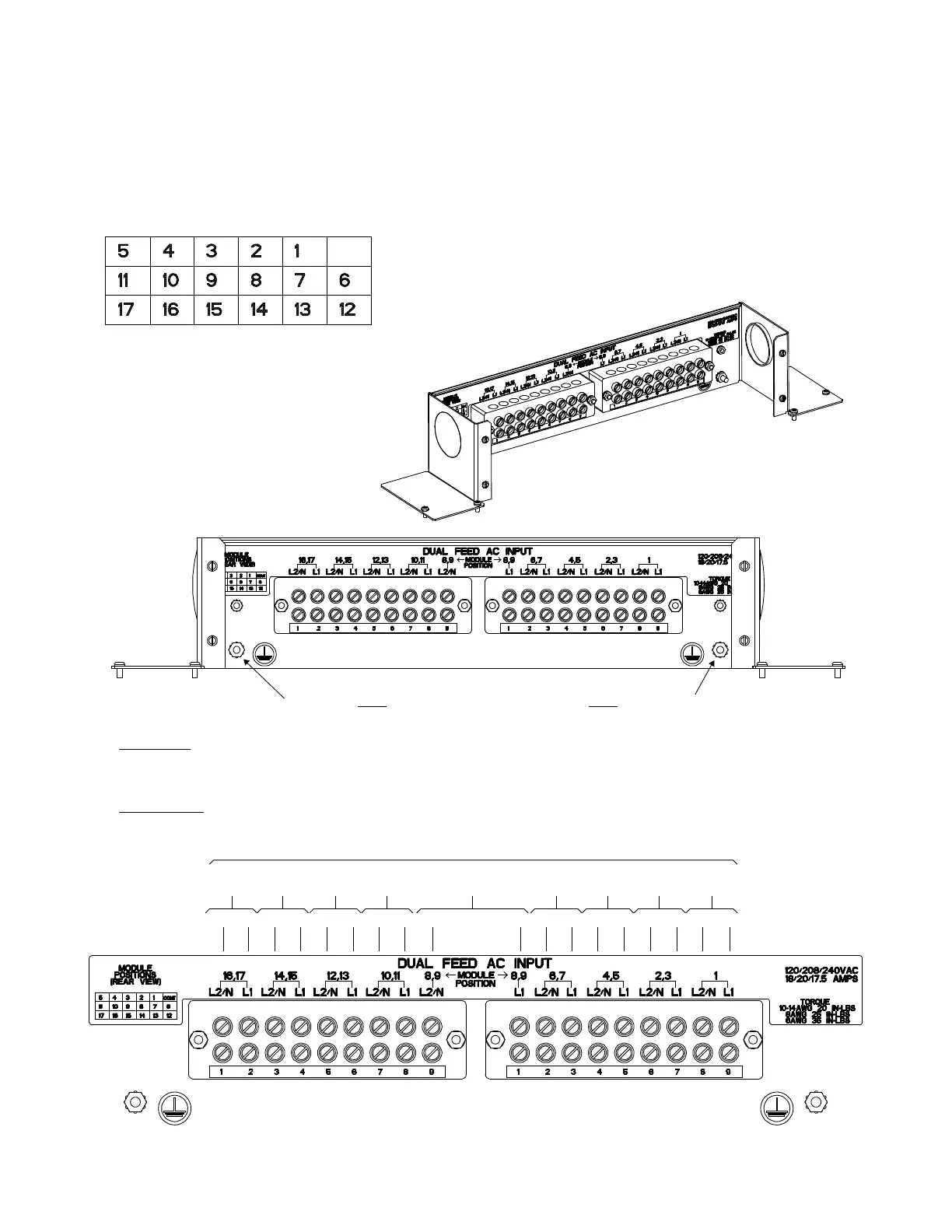

Figure 5.5 Rectifier AC Input Connections to Rectifier AC Input Panel (List 46)
(Nominal 120 VAC / 208 VAC / 240 VAC, Single Phase, 50 Hz / 60 Hz)
AC INPUT CONNECTIONS (582137100 List 46)
1 FEED PER 2 RECTIFIERS, SINGLE PHASE
Rectifier Module Mounting Slots (Rear View)
Module Mounting Assy. #1
Module Mounting Assy. #2
Module Mounting Assy. #3
Note:
Wiring to a field installed
module mounting assembly
is done at the rear of the
module mounting assembly.
L1L2 / N
Rect.
#16, #17
Rect.
#14, #15
Rect.
#12 #13
Rect.
#10, #11
Rect.
#8, #9
Rect.
#6, #7
Rect.
#4, #5
Rect.
#2, #3
Rect.
#1
L1L2 / N L1L2 / N L1L2 / N L1L2 / N L1L2 / N L1L2 / N L2 / NL1 L1L2 / N
Line to Line:
Connect Line 1 to L1.
Connect Line 2 to L2.
Line to Neutral
Connect Line to L1.
C
onnect Neutral to N.
Wire Size Capacity and Torque:
10 AWG to 14 AWG; 20 in-lbs.
8 AWG; 25 in-lbs.
6 AWG; 35 in-lbs.
Controller
RECTIFIER AC INPUT FEEDS
1 FEED PER 2 RECTIFIERS
120 VAC / 208 VAC / 240 VAC,
50 Hz / 60 Hz, SINGLE PHASE
FRAME GROUND FRAME GROUND
Two 10-32 Studs and Hardware.
Recommended Torque: 23 in-lbs.
