Vertiv™ NetSure™ 5100 Series -48 VDC Power System Installation Manual
Proprietary and Confidential © 2023 Vertiv Group Corp.
90

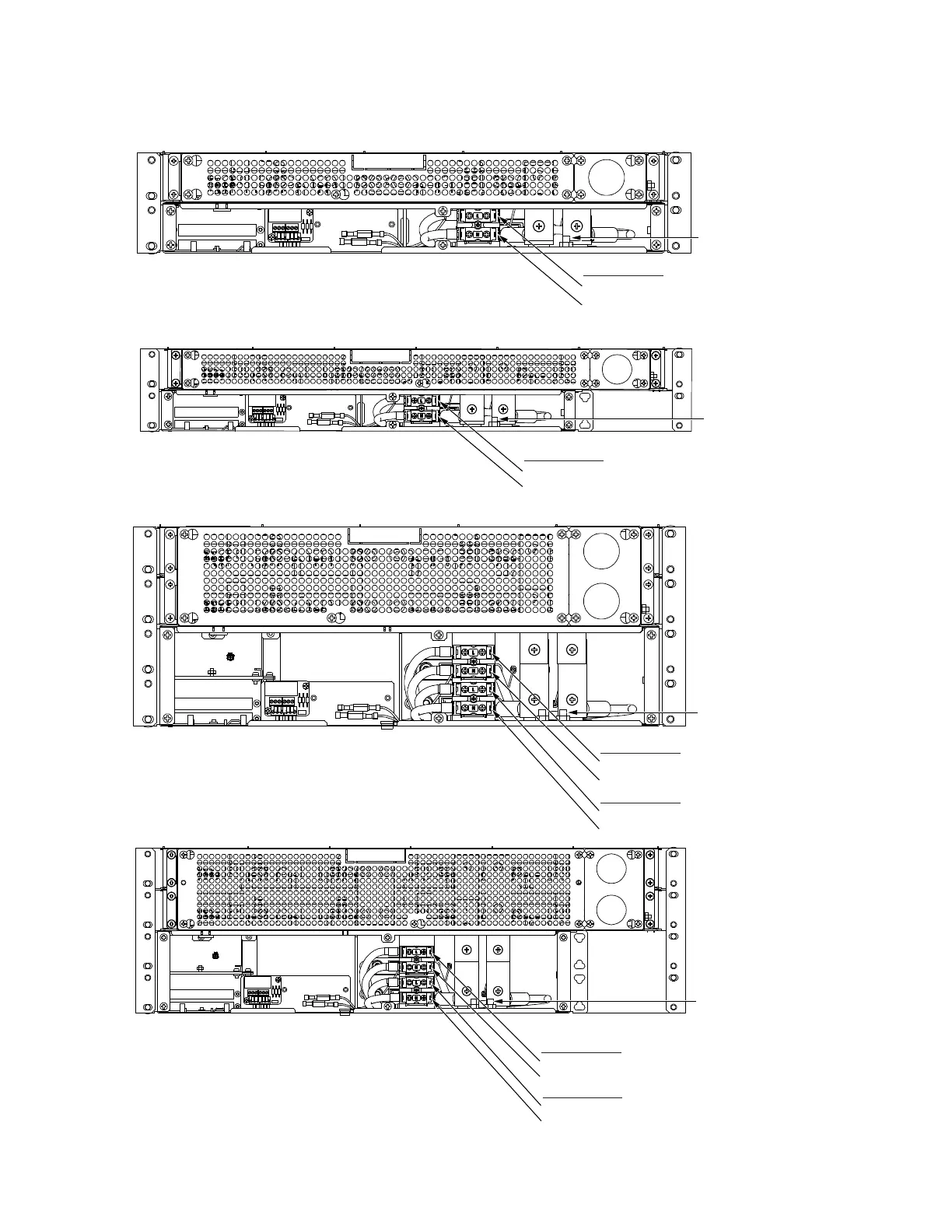

Figure 5.15 Nominal 120 VAC Output Connections, Lists 50, 52, 54, 56 (Bulk Output)
120 VA
C Output
FRAME GROUND
CONNECTION
One M6 x 14 mm
Studs and Hardware.
Recommended torque:
58 in-lbs
Line
Neutral
Rear 582137100 List 50 Wire Size Capacity: 20 AWG to 4 AWG.
Recommended Torque: 26 in-lbs.
Rear Panel Removed in Illustration
120 VAC Output
FRAME GROUND
CONNECTION
One M6 x 14 mm
Studs and Hardware.
Recommended torque:
58 in-lbs
Line
Neutral
Rear 582137100 List 52
Wire Size Capacity: 20 AWG to 4 AWG.
Recommended Torque: 26 in-lbs.
Rear Panel Removed in Illustration
120 VAC Output
FRAME GROUND
CONNECTION
One M6 x 14 mm
Studs and Hardware.
Recommended torque:
58 in-lbs
Line
Neutral
Rear 5821371 List 54 Wire Size Capacity: 20 AWG to 4 AWG.
Recommended Torque: 26 in-lbs.
Rear Panel Removed in Illustration
120 VAC Output
Line
Neutral
120 VAC Output
FRAME GROUND
CONNECTION
One M6 x 14 mm
Studs and Hardware.
Recommended torque:
58 in-lbs
Line
Neutral
Rear 582137100 List 56
Wire Size Capacity: 20 AWG to 4 AWG.
Recommended Torque: 26 in-lbs.
Rear Panel Removed in Illustration
120 VAC Output
Line
Neutral
