VIDEOJET DataFlex 6530 - 4.2 Setting the Screen Orientation

4-2 Videojet DataFlex 6530 Operator Manual - Rev AA
Startup
Figure 4-2 displays the CLARiTY Home screen in the OFFLINE state .
4.2 Setting the Screen Orientation
Depending on the position in which the CLARiTY controller is mounted, it may be necessary to
rotate the screen image by 180 degrees.
To change the screen orientation, proceed as follows:
1. Navigate to Tools > Setup > Control as shown in Figure 4-3.

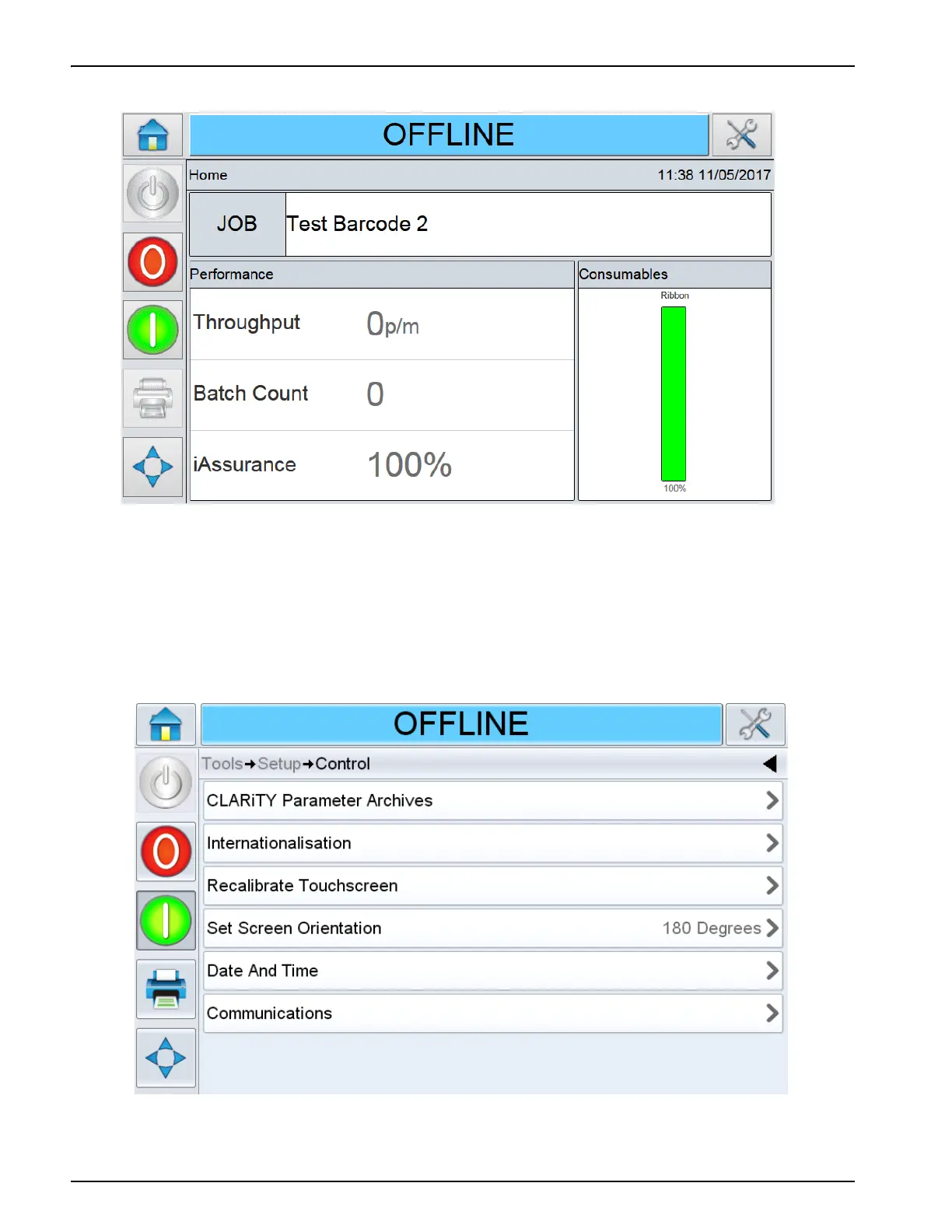

Figure 4-2: CLARiTY Home Screen in the Offline State
Figure 4-3: Screen Orientation
