5-10 Videojet DataFlex 6530 Operator Manual - Rev AA
CLARiTY Operating System
5.3.1 Using the Diagnostics Screen
Touch on the Tools screen to access the Diagnostics screen (Figure 5-6).
The Diagnostics screen displays the following parameters:
Option Description
Printhead Information on the status of printer components, the event log, printhead
health graph and encoder profiles. Refer to “Using the Printhead Screen”
on page 5-11.
Consumables Information on the ribbon supply and waste diameter, ribbon tension and
printing mode. Refer to “Using the Consumables Screen” on page 5-27.
Control Information on system information, versions and communications
configuration. Refer to “Using the Control Screen” on page 5-28
Options There are no options available at this time.
Table 5-7: Diagnostics Screen Description

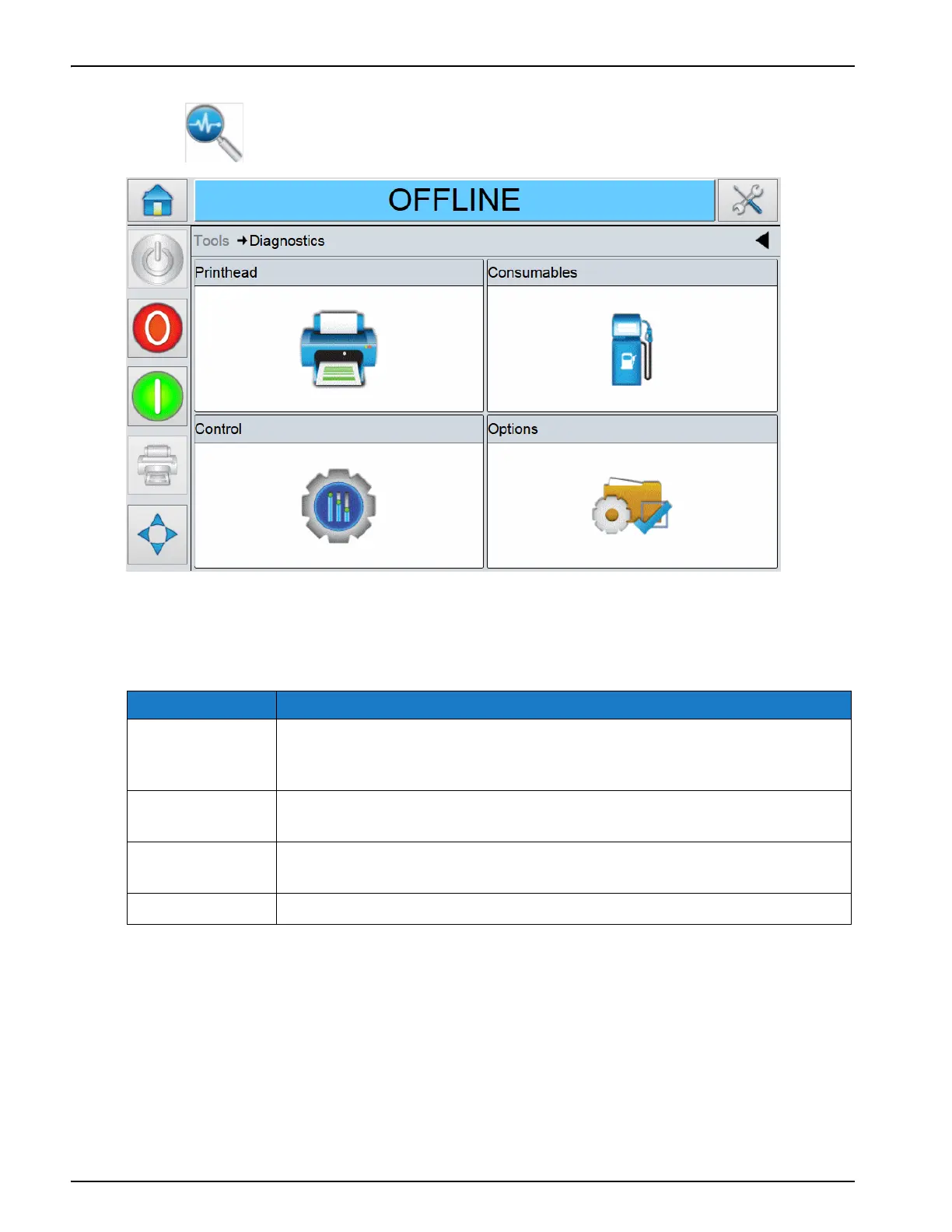

Figure 5-6: Diagnostics Screen
