4. POWERMASTER-30 G2 INSTALLATION
20 D-303222 PowerMaster-10/30 G2 Installer's Guide
4.6 GSM Module Installation (detail "N" in Figure 4.1)
Plug in the GSM module and fasten it as shown in the above
drawing.
A. GSM
B. Front unit
Caution! Do not install or remove the GSM module when the
system is powered by AC power or backup battery.
Insert the SIM card into the GSM module as shown in
the above drawing.
1. Slide top cover.
2. Open cover
3. Align SIM card in cover (note cover orientation)
4. Slide SIM card into cover
5. Rotate cover to close
6. Lock cover to close
IMPORTANT! Do not insert or remove SIM card when
the control panel is powered by AC power or battery.
Note: The GSM Alarm Transmission System
compliance with EN 50131-1 ATS4 was proven by
testing the signaling security requirements D2, M2,
T3, S1, I2” detailed in EN 50136-1-1:1998/A2: 2008,
EN 50136-2-1:1998/A1: 2001, EN50136-2-2: 1998.

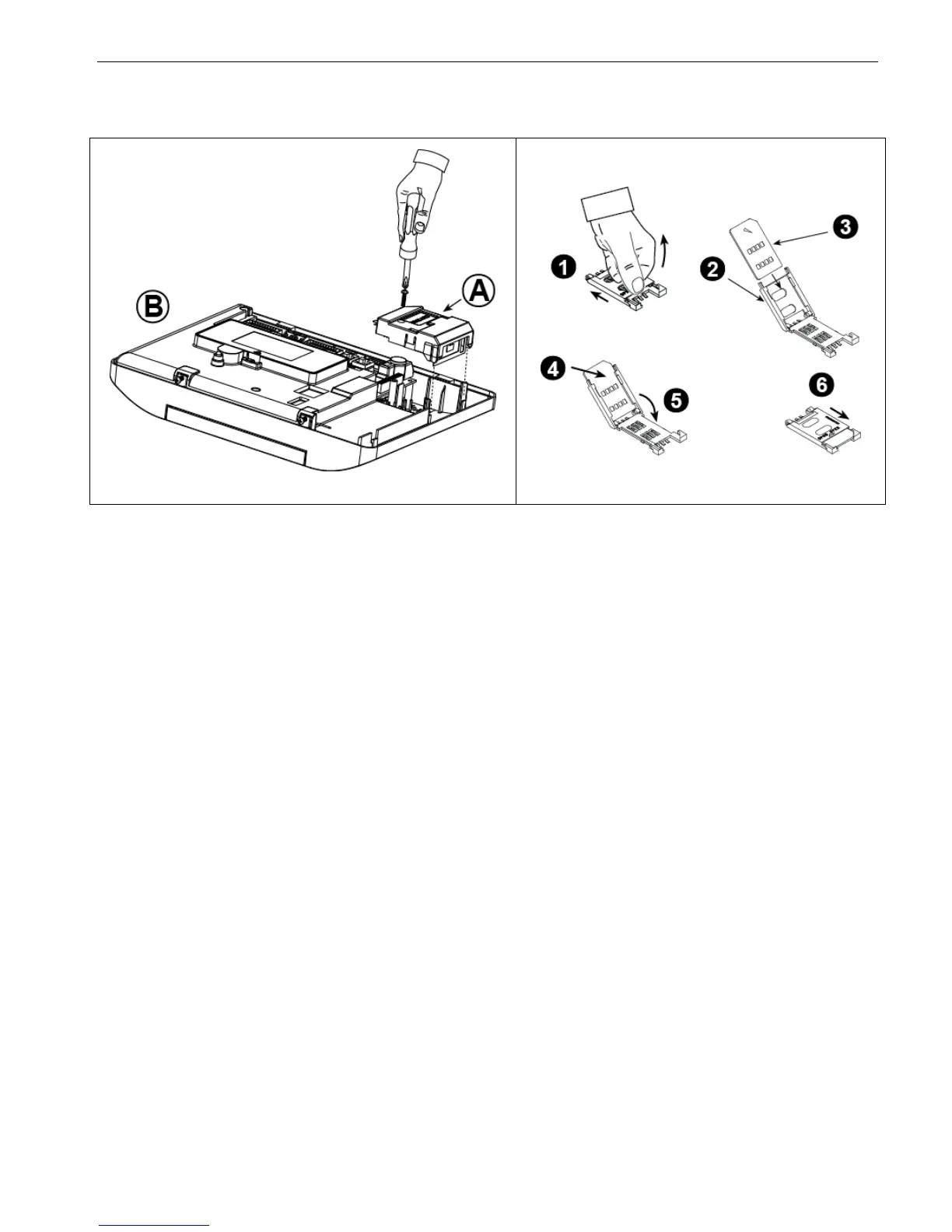

Figure 4.6 – Optional GSM Module Mounting and SIM Card Insertion
4.7 DUAL RS-232 Optional Module Mounting (detail "F" in Figure 4.1)
The Dual RS-232 is a module that enables connection of any two simultaneous devices, such as Local PC
programming or GSM Module.
The GSM unit enables the PowerMaster-30 G2 system to operate over a cellular network (for details regarding the
GSM modem features and connections, refer to the GSM Modem installation instructions).
Note: The Dual RS-232 Module is not to be connected in UL Listed product.

Visonic PowerMaster-10 G2 Specifications

General

Model	PowerMaster-10 G2
Category	Security System
Wireless Technology	PowerG
Remote Control	Yes
Event Log	1000 events
Communication	GSM, PSTN, IP
Frequency	868 MHz
Type	Wireless
Operating Temperature	-10°C to +55°C
Humidity	Up to 85% non-condensing
