Volvo L90E - Operator Seat, Lubrication

Operator seat, lubrication هﺪﻨﻧار ﯽﻟﺪﻨﺻ یرﺎﮑﻨﻏور
144
ﯽــﻟﺪﻨﺻ یرﺎـﮑﻨﻏور
هﺪﻨﻧار
یور زا ﻦﺘﺳﺎﺧﺮﺑ مﺎﮕﻨﻫ ﻪﭽﻧﺎﻨﭼ
هﺪﯿﻨـﺷ ﯽﻓﺎـﺿا یاﺪــﺻ ﯽﻟﺪﻨﺻ
ار ﯽﻟﺪﻨﺻ ﺮﯾز شور ﻪﺑ ﺪﯾﺎﺑ دﻮﺷ
: دﺮﮐ یرﺎﮑﻨﻏور
. ﺪﯿﻨﮐ زﺎﺑ ار
(A)
یﺎﻫ ﭻﯿﭘ -1
ار
(B)
ﯽــﻟﺪﻨﺻ هﺎﮕﻨﻤﯿـﺸﻧ -2
. ﺪﯾرادﺮﺑ
ار ﺎﻫﻻﻮﻟ و لﺎﺼﺗا یﺎﻬﺘﻤﺴﻗ -3
، ﻦــﻏور ﺎـــﺑ فﺮـﻃ ود ﺮـﻫ رد
. ﺪﯿﻨﮐ یرﺎﮑﻨﻏور
یﺎــﻫﺮﻨﻓ ﯽﯾﺎﻬﺘﻧا یﺎﻬﺘﻤﺴﻗ -4
. ﺪﯿﻨﮐ یرﺎﮑﺴﯾﺮﮔ ار
(D)
ﯽﮑﯿﺘــﺳﻼﭘ شﻮـﭘرد رﺎﻬـﭼ -5
ار ﯽﮑﯿﺘــﺳﻻ ﺮﯿﮔاﺪﺻ هﺪﻧراﺪﻬﮕﻧ
ﺖﻤـﺳ ﻪــﺑ ار ﺮﯿﮔاﺪﺻ و ﺪﯾرادﺮﺑ
ود تﻻﺎــﺼﺗا . ﺪﯿﻫد رﺎﺸﻓ ﻦﯿﯾﺎﭘ
. ﺪﯿﻨﮐ یرﺎﮑﻨﻏور ار
(E)
فﺮﻃ
رد ار
(F)
ﯽـــﻠﯾر یﺎﻬﺘﻤـﺴﻗ -6
. ﺪﯿﻨﮐ یرﺎﮑﺴﯾﺮﮔ فﺮﻃ ود ﺮﻫ
Operator seat,
lubrication

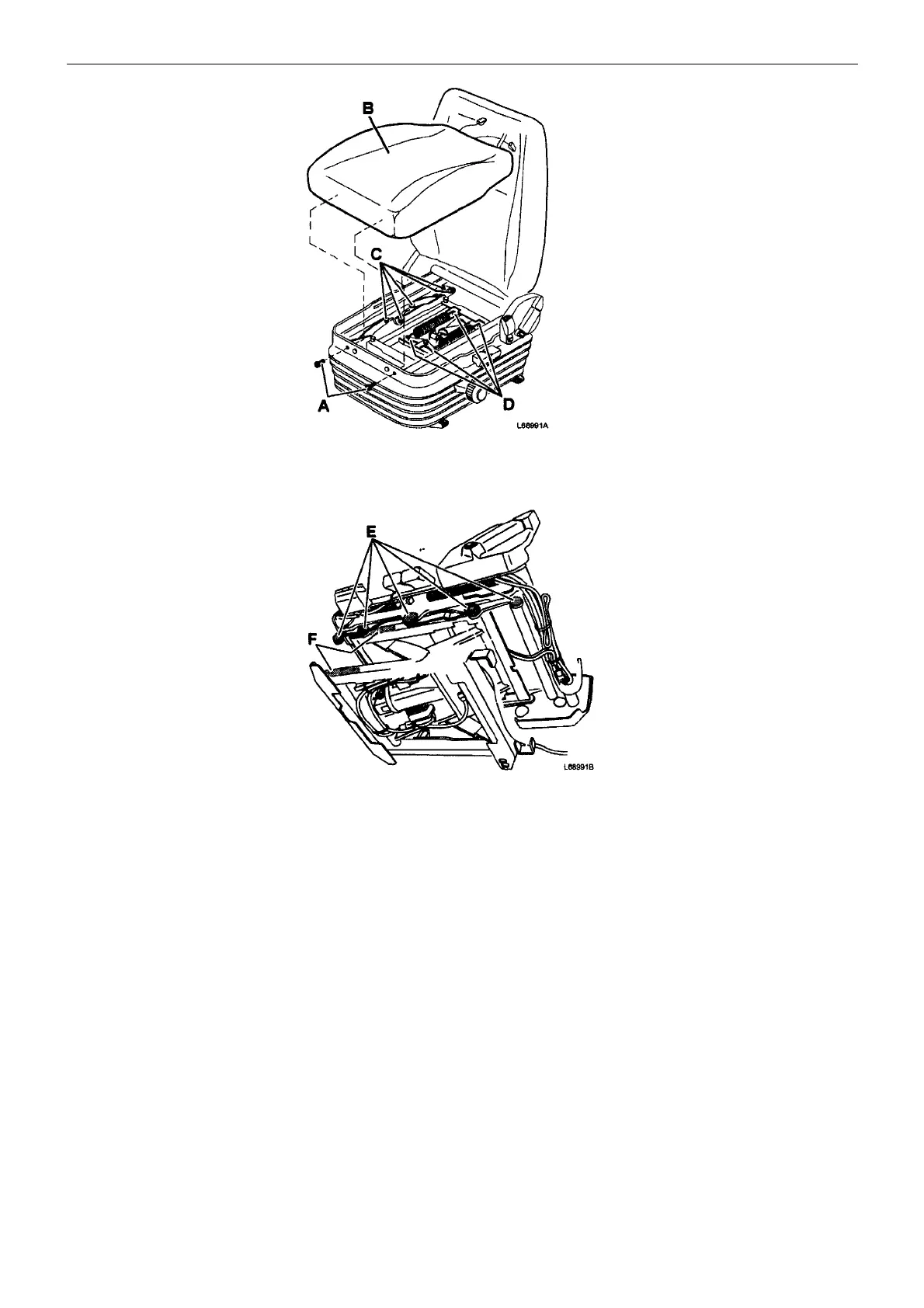

If squeaking noises arise,
the seat should be
lubricated as shown
below:
1 Remove bolts (A).
2 Fold up seat (B).
3 Lubricate linkage (C)
on both sides with oil.
4 Lubricate spring ends
(D) with grease.
5 Remove the four plastic
plugs retaining the
rubber bellows and push
down the bellows,
Lubricate linkages (E) on
both sides with oil.
6 Lubricate slide rails (F)
on both sides with
grease.
