Gear shifting هﺪﻧد ﺾﻳﻮﻌﺗ
76
سﻮﻜﻌﻣ هﺪﻧد دﺮﻜﻠﻤﻋ
مﺮــﻫا ﻪـﻛ ددﺮـﮕﻴﻣ ﺮـﺴﻴﻣ ﻲﻧﺎـﻣز سﻮـﻜﻌﻣ هﺪـﻧد
لﺮﺘــﻨﻛ و ﺪﺷﺎﺑ ﻚﻴﺗﺎﻣﻮﺗا ﺖﻴﻌﺿو رد هﺪﻧد بﺎﺨﺘﻧا
٤ ﺎـﻳ و ٣ ، ٢ هﺪـﻧد ﺖـﻴﻌﺿو رد ﺰﻴــﻧ هﺪﻧد بﺎﺨﺘﻧا
سﻮﻜﻌﻣ هﺪﻧد يﺎﻫﺪﻴﻠﻛ ﻦﻴﻨﭽﻤﻫ ﺪﺷﺎﺑ ﻪﺘﻓﺮﮔ راﺮﻗ
.ﺪﻨﺷﺎﺑ هﺪﺷ لﺎﻌﻓ ﺰﻴﻧ
Kick- down
هداد رﺎـــﺸﻓ سﻮـﻜﻌﻣ هﺪـﻧد ﺪـﻴﻠﻛ ﻪـﻜﻴﻣﺎﮕﻨﻫ
١٠
km/h
زا ﺮﺘــﻤﻛ ﺖﻛﺮﺣ ﺖﻋﺮﺳ ﻪﭽﻧﺎﻨﭼ ،دﻮﺸﻴﻣ
ﺪـﻴﻠﻛ رﺎــﺸﻓ زا ﺪﻌﺑ ﻪﭽﻧﺎﻨﭼ ﺎﻳ و ﺪﺷﺎﺑ (٦/٢
mph
)
١٠
km/h
زا ﺮﺘــﻤﻛ ﻪﺑ ﺖﻛﺮﺣ ﺖﻋﺮﺳ سﻮﻜﻌﻣ هﺪﻧد
.دﻮﺸﻴﻣ ﺮﻴﮔرد ١ هﺪﻧد ،ﺪﺑﺎﻳ ﺶﻫﺎﻛ (٦/٢
mph
)
beep
هﺎـﺗﻮﻛ ياﺪــﺻ ، ١ هﺪﻧد يﺮﻴﮔرد زا ﺲﭘ
.ﺪﺷ ﺪﻫاﻮﺧ هﺪﻴﻨﺷ
ﺮـﮕﻣ ﺪﻧﺎـﻣ ﺪـﻫاﻮﺧ ﻲﻗﺎــﺑ
١ هﺪﻧد رد ﺲﻜﺑﺮﻴﮔ
ددﺮــﮔ لﺎﻌﻓ مود رﺎﺑ ياﺮﺑ سﻮﻜﻌﻣ هﺪﻧد ﺪﻴﻠﻛ ﻪﻜﻧآ
ياﺮـﺑ ﺪــﻴﻠﻛ ﻲﺘﻗو ) دوﺮﺑ ﻻﺎﺑ رﺎﻴﺴﺑ رﻮﺗﻮﻣ رود ﺎﻳ و
( دﻮﺸﻴﻣ ﺮﻴﮔرد ٢ هﺪﻧد ،ددﺮﮕﻴﻣ لﺎﻌﻓ مود رﺎﺑ
رد هﺎﮕﺘـﺳد ،ﺪــﻨﻛ ﺮﻴﻴﻐﺗ ﺖﻛﺮﺣ ﺖﻬﺟ ﻪﭽﻧﺎﻨﭼ
.ﺪﻨﻛ ﻲﻣ ﺖﻛﺮﺣ ﻪﺑ عوﺮﺷ ٢ هﺪﻧد
ﺖـ ﻳ ا ﺪ ﻫ مﺮﻫا ﻪﺑ ﺰﻬﺠﻣ هﺎﮕﺘﺳد ﻪﭽﻧﺎﻨﭼ :ﻪﺟﻮﺗ
زا سﻮـﻜﻌﻣ هﺪﻧد ،ﺪﺷﺎﺑ (
optional
) (
CDC
)
.دﻮﺸﻴﻣ مﺎﺠﻧا ﻲﻟﺪﻨﺻ ﻪﺘﺳد يور ﺪﻴﻠﻛ ﻖﻳﺮﻃ
ﻪــﺑ ﻚﺒـﺳ هﺪـﻧد / رﻮـﺗﻮﻣ ردرﺎـﺘﻳر
ﻦﻴﮕﻨﺳ
ﻪـﺑ ﻚﺒـﺳ هﺪـﻧد / رﻮـﺗﻮﻣ ردرﺎــﺘﻳر ﻪﻤﻛد ﻚﻤﻛ ﻪﺑ
ﻦﻴﮕﻨـﺳ ﻪــﺑ ﻚﺒﺳ زا هﺪﻧد ﻊﻳﺮﺳ ﺾﻳﻮﻌﺗ ،ﻦﻴﮕﻨﺳ
ﺾـﻳﻮﻌﺗ زا و ددﺮـﮕﻴﻣ ﺮــﺴﻴﻣ ﻪﻠﺣﺮﻣ ود ﺎﻳ ﻚﻳ رد
ﻦﻏور يﺎﻣﺮﮔ زا و دﻮﺸﻴﻣ يﺮﻴﮔﻮﻠﺟ هﺪﻧد ﻪﺘﺳاﻮﺧﺎﻧ
.ﺪﺷ ﺪﻫاﻮﺧ ﻪﺘﺳﺎﻛ ﺰﻴﻧ ﻞﺴﻛا
يﺎـﻫرود رد رﻮـﺗﻮﻣ ردرﺎـﺘﻳر ﻪـﻤﻛد رﺎــﺸﻓ رﺎﺒﻜﻳ ﺎﺑ
.دﻮﺷ ﻲﻣ مﺎﺠﻧا ٣ ﻪﺑ ٤ زا هﺪﻧد ﺾﻳﻮﻌﺗ ،ﺮﺗﻻﺎﺑ
،ﻦﻴﻳﺎـــﭘ رود رد و مود رﺎـﺑ ياﺮـﺑ ﻪـﻤﻛد رﺎـﺸﻓ ﺎـﺑ
.دﺮﻴﮕﻴﻣ راﺮﻗ ٢ هﺪﻧد رد ﺲﻜﺑﺮﻴﮔ
زا ،دﻮـﺷ ﻪﺘـﺷاﺪﻬﮕﻧ ﻦﻴﻳﺎـﭘ رد ﻪــﻤﻛد ﻦﻳا ﻪﭽﻧﺎﻨﭼ
.دﻮﺷ ﻲﻣ يﺮﻴﮔﻮﻠﺟ ﻚﺒﺳ ﻪﺑ ﻦﻴﮕﻨﺳ هﺪﻧد ﺾﻳﻮﻌﺗ
نﺪﺷ ﻚﻳدﺰﻧ مﺎﮕﻨﻫ ﺎﻳو ﺎﻫ ﻲﺒﻴﺷاﺮﺳ رد ﺖﻟﺎﺣ ﻦﻳا
.دﻮﺸﻴﻣ هدﺎﻔﺘﺳا ،ﺖﻛﺎﺑ رﺎﺑ ﻪﻴﻠﺨﺗ ﺖﻬﺟ نﻮﻴﻣﺎﻛ ﻪﺑ
ﺖـﻛﺮﺣ ﺖﻋﺮﺳ ﺎﻳ و رﻮﺗﻮﻣ رود ﻪﭽﻧﺎﻨﭼ :ﻪﺟﻮﺗ
زا هﺪــﻧد ﺾـﻳﻮﻌﺗ ،دور ﻻﺎـﺑ هزاﺪـﻧا زا ﺶـﻴﺑ
.دﺎﺘﻓا ﺪﻫاﻮﺧ قﺎﻔﺗا ﻚﺒﺳ ﻪﺑ ﻦﻴﮕﻨﺳ
اﺮﭼ ،دور ﻻﺎﺑ رﺎﻴﺴﺑ ﺲﻜﺑﺮﻴﮔ ﺎﻳ و رﻮﺗﻮﻣ رود ﺮﮔا
ياﺪــﺻ و ددﺮـﮕﻴﻣ ﻦـﺷور يﺰـﻛﺮﻣ ﮓـﻧر ﺰـﻣﺮﻗ غ
ﭗـﻣﻻ و ﺪـﺷ ﺪـﻫاﻮﺧ هﺪﻨﻴــﺷ ﺰﻴﻧ راﺪﺸﻫ لﺎﻨﮕﻴﺳ
Overspeeding in Selected
ﺔﺘﺷﻮﻧ ﺎﺑ راﺪﺸﻫ
.ددﺮﮕﻴﻣ نﺎﻳﺎﻤﻧ
Gear
ﺎـﻳ و ﺪﻴﻫد ﺶﻫﺎﻛ ار ﺖﻛﺮﺣ ﺖﻋﺮﺳ ﻂﻳاﺮﺷ ﻦﻳا رد
ﻪﺘـﺳﺎﻛ رﻮــﺗﻮﻣ ورد زا ﺎﺗ ﺪﻴﻨﻛ بﺎﺨﺘﻧا ﺮﺘﻜﺒﺳ هﺪﻧد
.دﻮﺷ
Kick-down function
Kick-down is obtained, if the mode
selector is within the automatic range, the
gear selector control is in either of
positions 2. 3. or 4 and either of the kick-
down buttons is actuated.
• When the kick-down button is pressed,
1st gear will be engaged if the travelling
speed already is below 10 km/h (6.2 mph)
or if the speed drops below 10 km/h (6.2
mph) within 8 seconds after the button
was depressed.
• When 1st gear has been engaged the
buzzer will give off one short pip.
• 1st gear will remain engaged unless the
kick-down function switch is actuated a
second time or if the engine speed
becomes extremely high (when the switch
is actuated a second time, 2nd gear will
be engaged).
• If the direction of travel is changed, the
machine will start off in 2nd gear,
provided automatic shifting is selected.
NOTE: If the machine, as optional
extra, is equipped with lever
steering (CDC) the kick-down function
is also available on the arm rest
Engine retarding /
downshifting
With the aid of the button for engine
retarding / downshifting it is possible to
achieve an immediate downshift in one or
two stages or prevent unwanted
upshifting. In this way warming up of the
axle oil is reduced.
• One press of the button at higher
speeds, will result in a downshifting from
4th to 3rd gear.
• One further press of the button at a
lower speed, will result in a downshifting
to 2nd gear.
• If the switch is kept in the pressed-in
position, upshifting to the next higher gear
is prevented, which can be used when
operating downhill or when approaching a
vehicle which is to be loaded.
NOTE: If certain critical rotational
speeds and travelling
speeds are exceeded, upshifting takes
place.
• If the engine or transmission speed
become too high, the red central warning
lamp flashes, the buzzer sounds and the
alarm text Overspeeding In Selected
Gear is shown.
• Under these circumstances, lower the
travelling speed, or select a higher gear
to reduce the engine speed.
هﺪﻧد بﺎﺨﺘﻧا ﻲﺘﺳد لﺮﺘﻨﻛ يور ﺮﺑ سﻮﻜﻌﻣ هﺪﻧد ﻪﻤﻛد

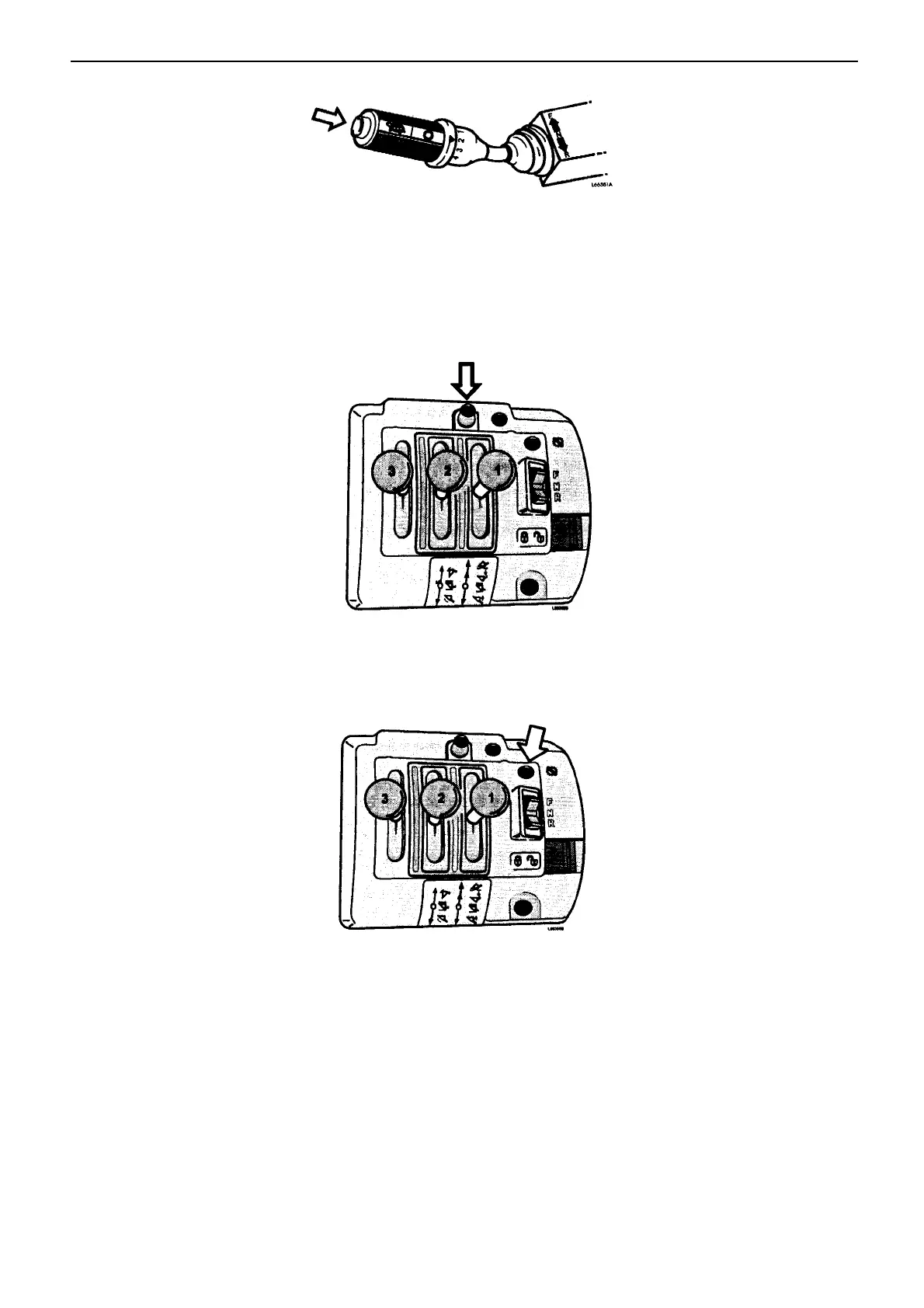

Kick-down button, gear selector control
هﺪﻧد بﺎﺨﺘﻧا ﺮﻳرﺎﻛ يور ﺮﺑ سﻮﻜﻌﻣ هﺪﻧد ﻪﻤﻛد
Kick-down button, control lever carrier
رﻮﺗﻮﻣ ردرﺎﺘﻳر
Engine retarding
