VU 1/VU 2/VU 3
Ambient conditions:
Operating temperature range 0–45 °C; 32–113 °F
Maximum air humidity 80 %

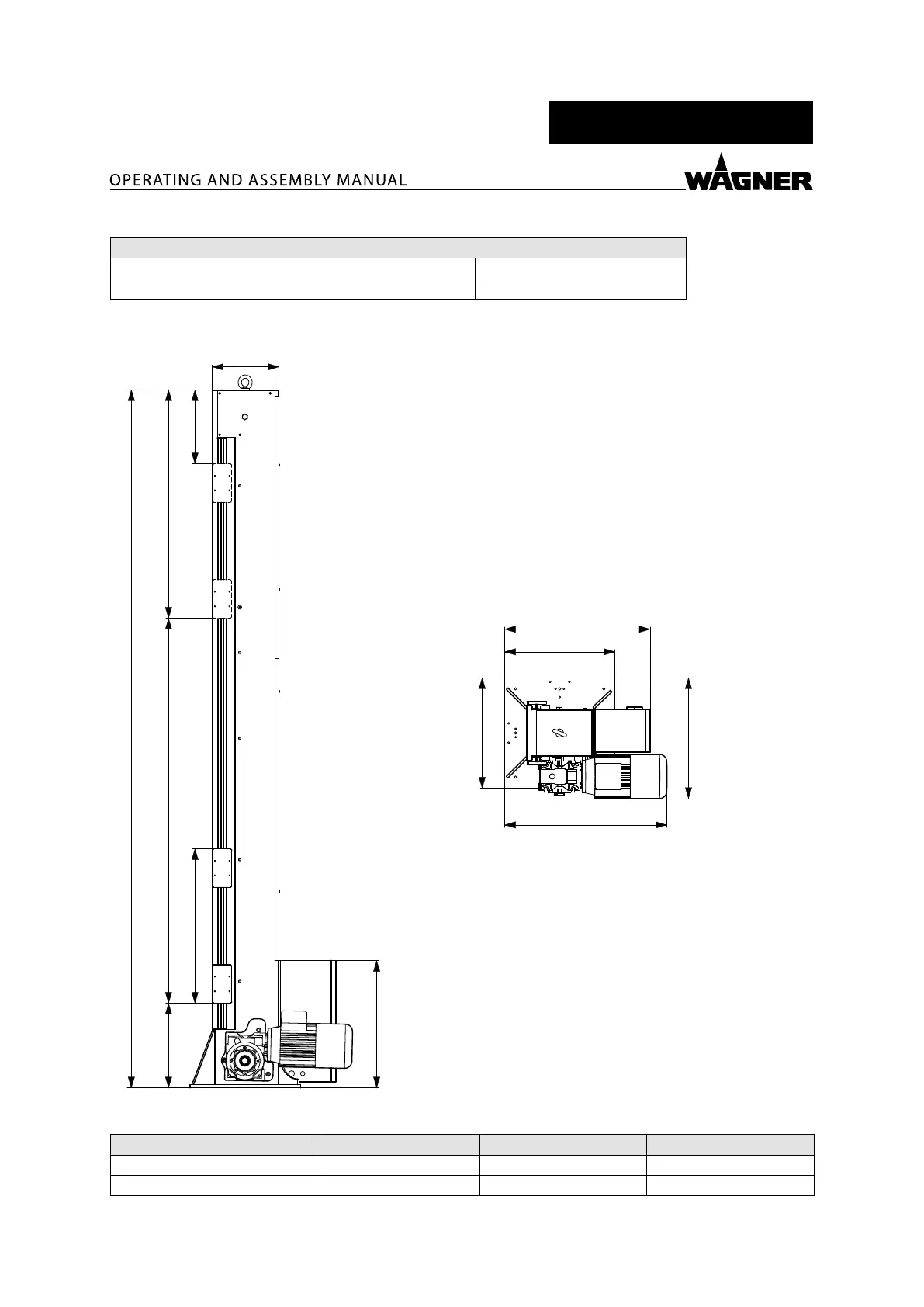

5.7.2 VU 1 DIMENSIONS
A
307 B 828
253
462
400
438
400
528
587
P_01801
560
268
Measurements in mm
Type VU 1–1800 VU 1–2400 VU 1–3000
Total/overall height A 2935 mm; 115.55 inch 3535 mm; 139.17 inch 4135 mm; 162.80 inch
Stroke/traveling distance B 1800 mm; 70.87 inch 2400 mm; 94.49 inch 3000 mm; 118.11 inch
