WAGNER VU 1 - VU 1 Gun Arrangement; Long Stroke Gun Arrangement for 2-4 Guns; Long Stroke Gun Arrangement for 5-8 Guns

40
VERSION 03/2020 ORDER NUMBER DOC2330732
VU 1/VU 2/VU 3

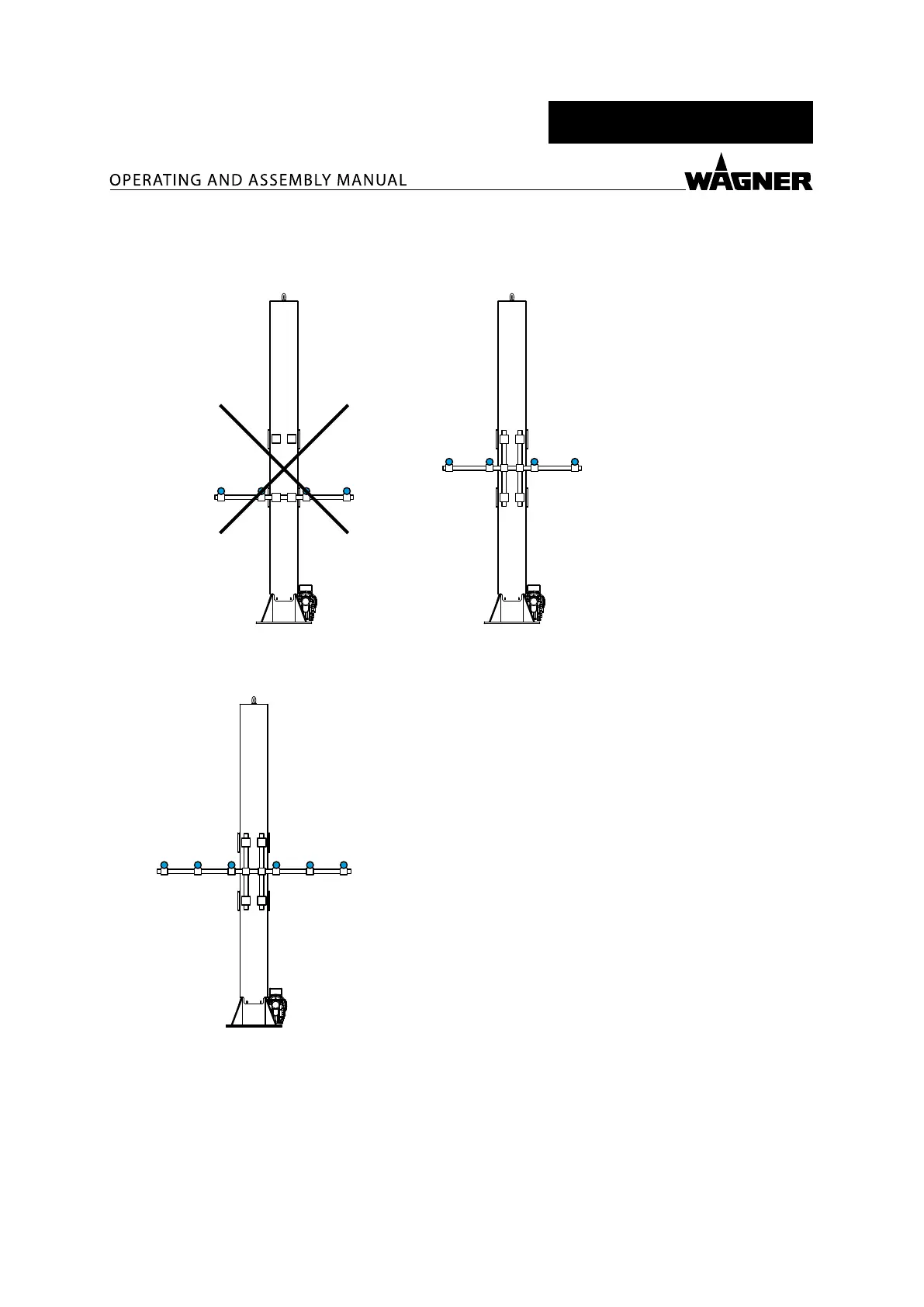

6.11 VU 1 GUN ARRANGEMENT
6.11.1 LONG STROKE GUN ARRANGEMENT FOR 24 GUNS
P_04280
2 to 4 guns horizontally
6.11.2 LONG STROKE GUN ARRANGEMENT FOR 58 GUNS
P_04281
5 to 8 guns horizontally
– Ideally there should be the same number of guns on the left as on the right
– The maximum number of guns depends upon the maximum load and acceptable
exing of the support
– Recommendation: no more than 8 guns
