6.6 ELECTRICAL CONNECTION
6.6.1 MCS 1 STANDALONE/PRIMATECH
P_04274
1
2
3
4
5
6
1
7

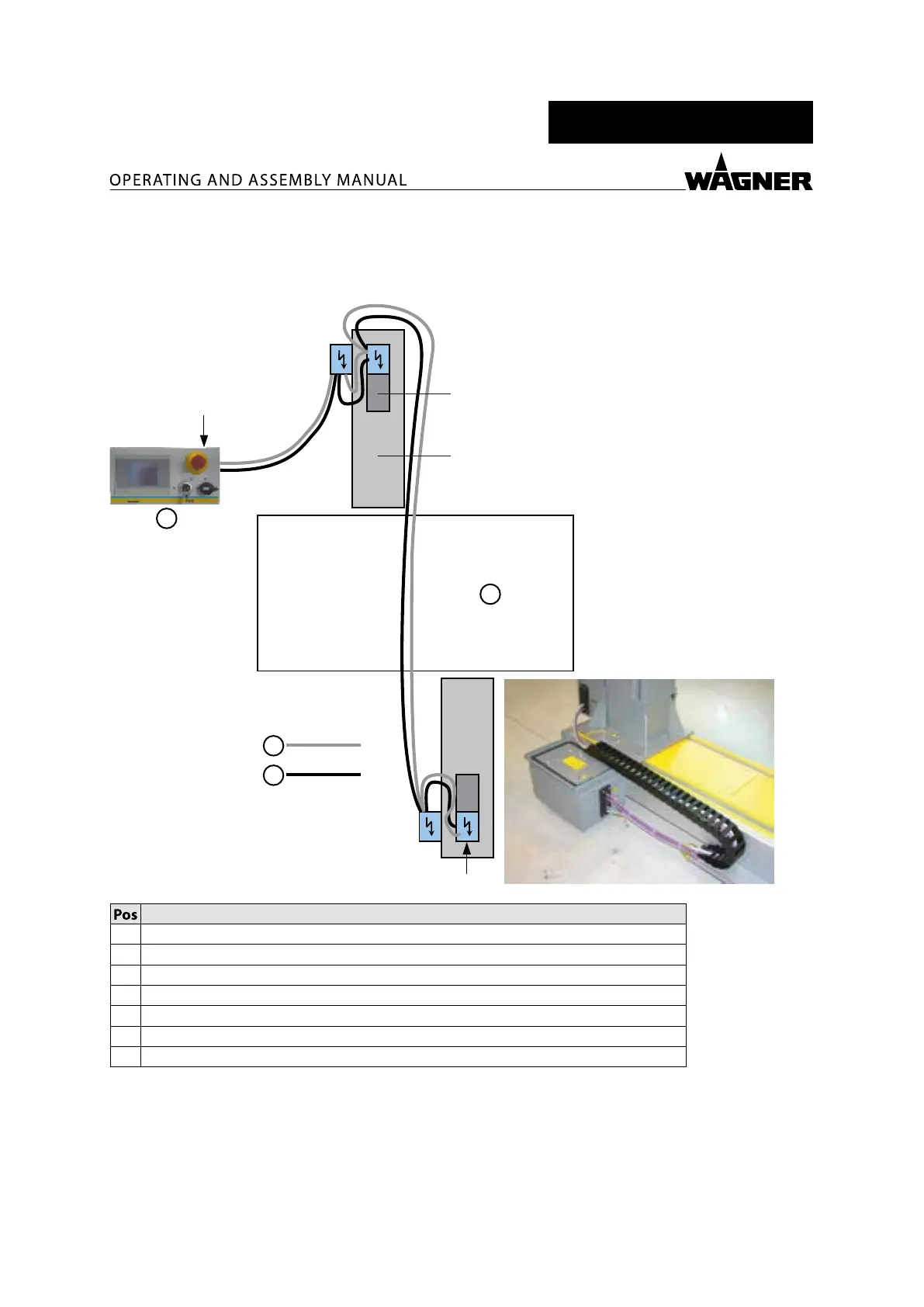

Designation
1 CAN bus termination
2 Reciprocator
3 Sliding table
4 Booth
5 Voltage supply
6 CAN bus
7 MCS 1
