17 INSTALLATION EXAMPLE AXIS SYSTEM ON VU 3
For details on the axis system, observe the superordinate operating manual of the axis system.
17.1 COMPONENTS

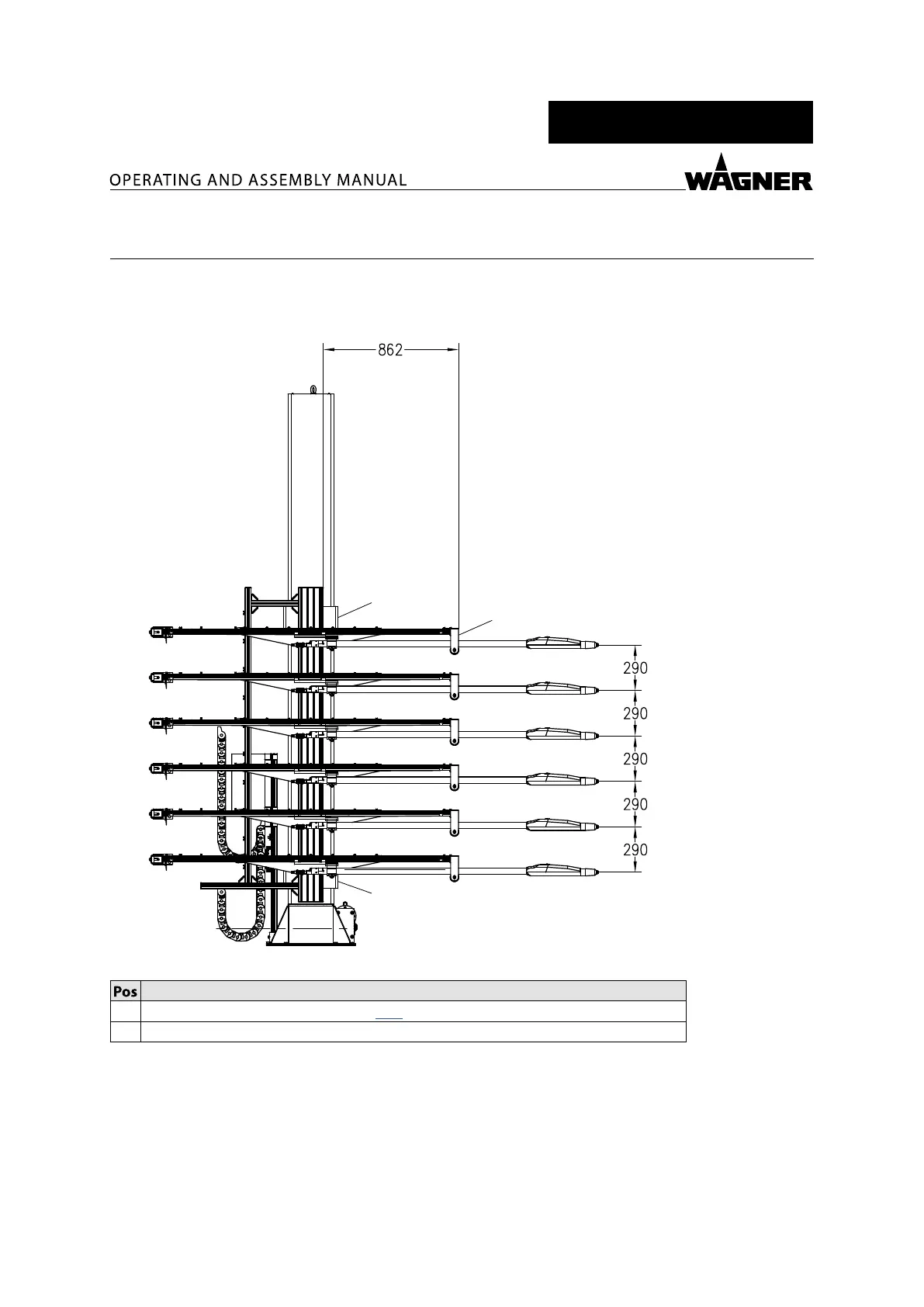

P_04351
1
1
2
Measurements in mm
Designation
1
U-beam for Z-axis unit (see Chapter 17.2)
2 Axis system
