66
VERSION 03/2020 ORDER NUMBER DOC2330732
VU 1/VU 2/VU 3

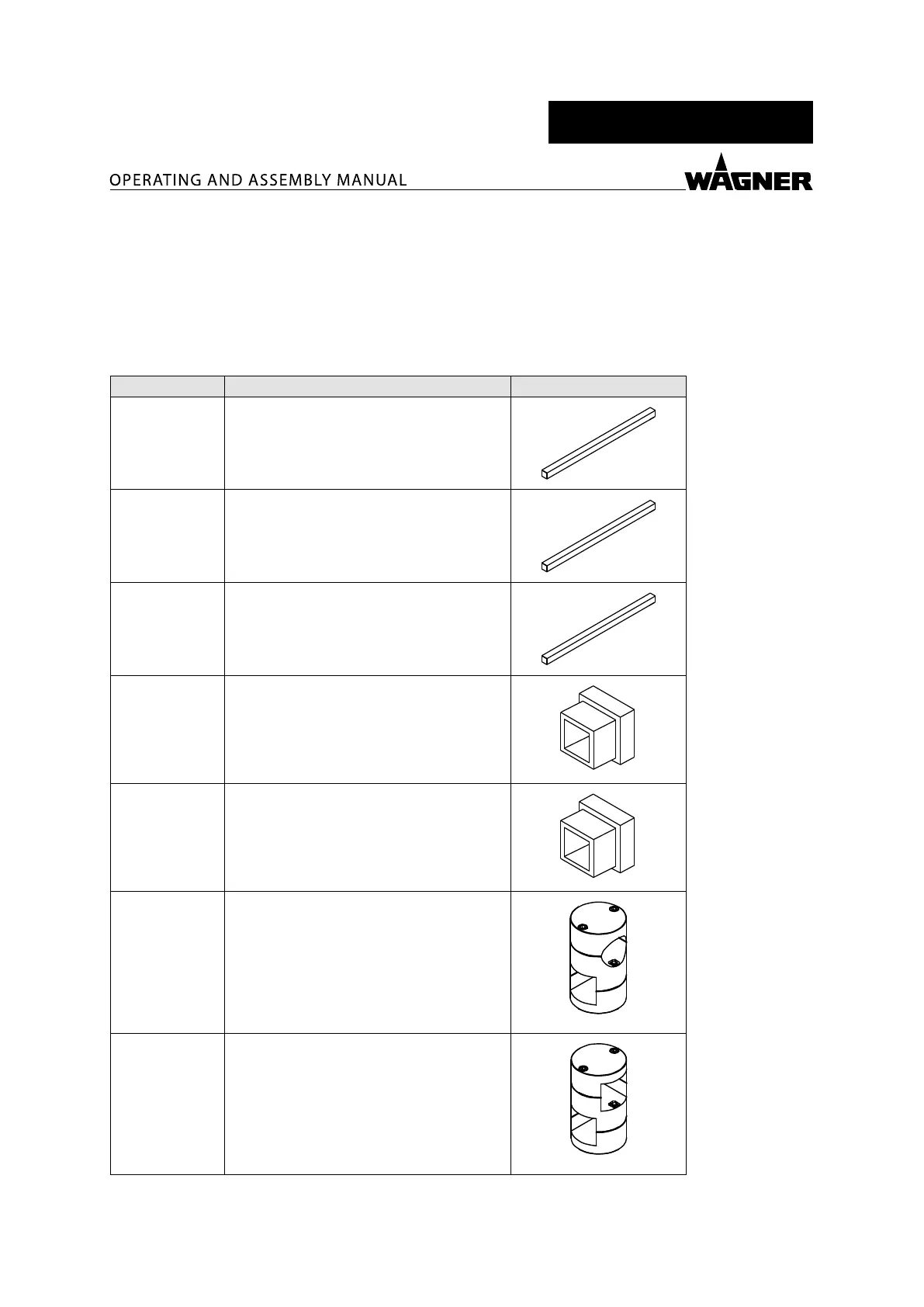

12.2 FASTENING ELEMENTS
The guns are mounted on the reciprocator by means of clamps and square tube.
For the vertical and horizontal construction of up to four guns, aluminum square tubes
can be used.
When mounting more than four guns horizontally, it is recommended that steel square tube
be used for the horizontal arms.
Order no. Designation
700120 Square aluminum tube, 40 x 40 x 2
P_01974
8034003 Square aluminum tube, 40 x 40 x 3
P_01974
3105130 Square steel tube, 40 x 40 x 2
P_01974
9998577 Protective cap 40, black, 3 mm
P_01975
9990548 Protective cap 40, black, 2 mm
P_01975
373235
Cross clamp, square - rounded
For attaching automatic XL spray guns
P_00337
373236
Cross clamp, square - square
For attaching automatic spray guns
P_00338
