WAGNER VU 1 - Mounting the Additional Weights

38
VERSION 03/2020 ORDER NUMBER DOC2330732
VU 1/VU 2/VU 3

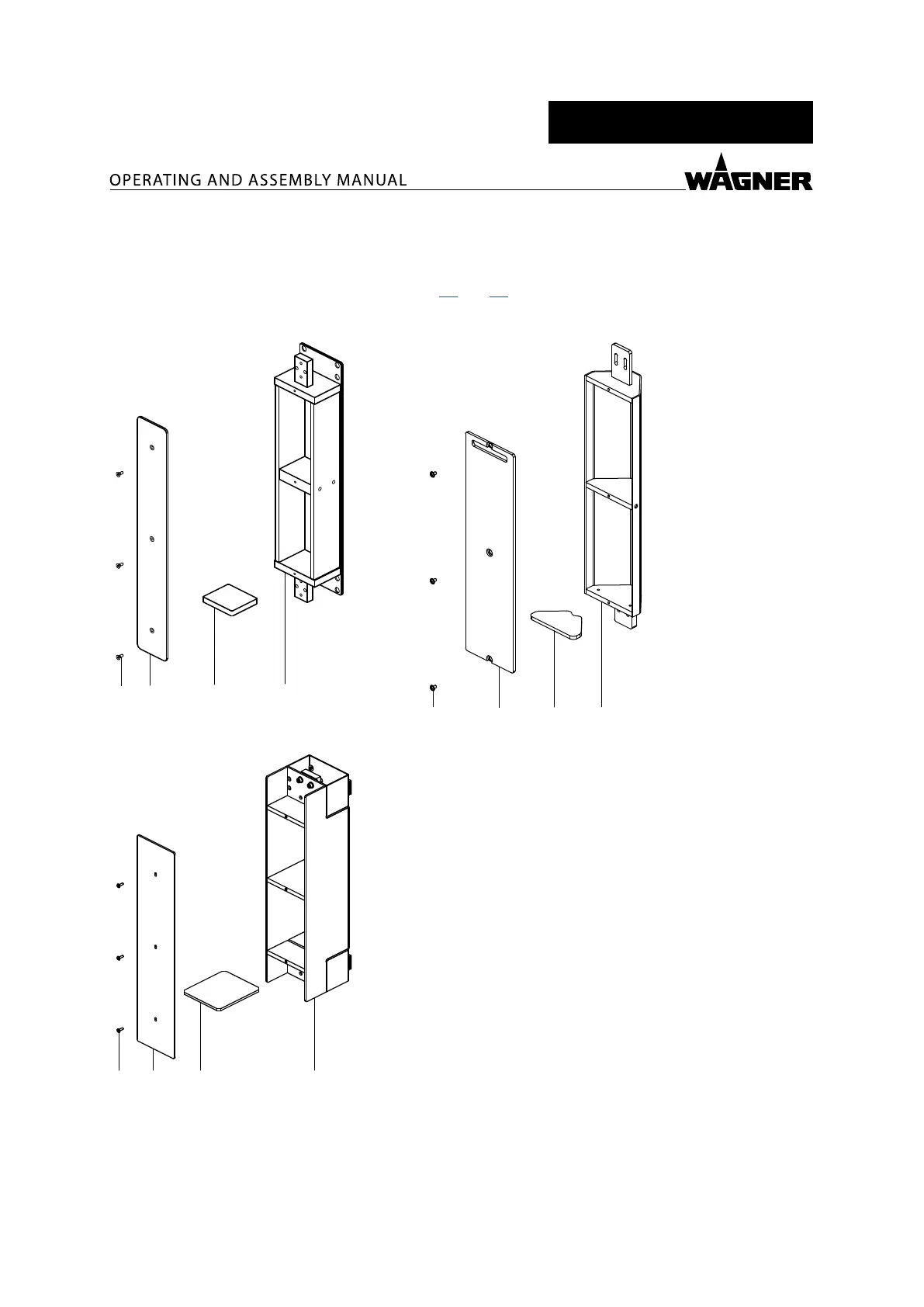

6.9 MOUNTING THE ADDITIONAL WEIGHTS
Depending on the number of mounted guns, a corresponding number of counterweights
must be mounted on the reciprocator (see chapter 6.7 and 6.8).
1 432
P_04288
1 432
VU 1 VU 2
VU 3
1 432
Procedure:
1. Unscrew bolts (1) and remove cover (2) from the carriage (4).
2. Insert the appropriate number of counterweights (3) into the carriage (4).
3. Reposition cover (2) on the carriage (4) and fasten with bolts (1).
