WAGNER VU 1 - Adjustment of the Upper and Lower Stops

39
VERSION 03/2020 ORDER NUMBER DOC2330732
VU 1/VU 2/VU 3

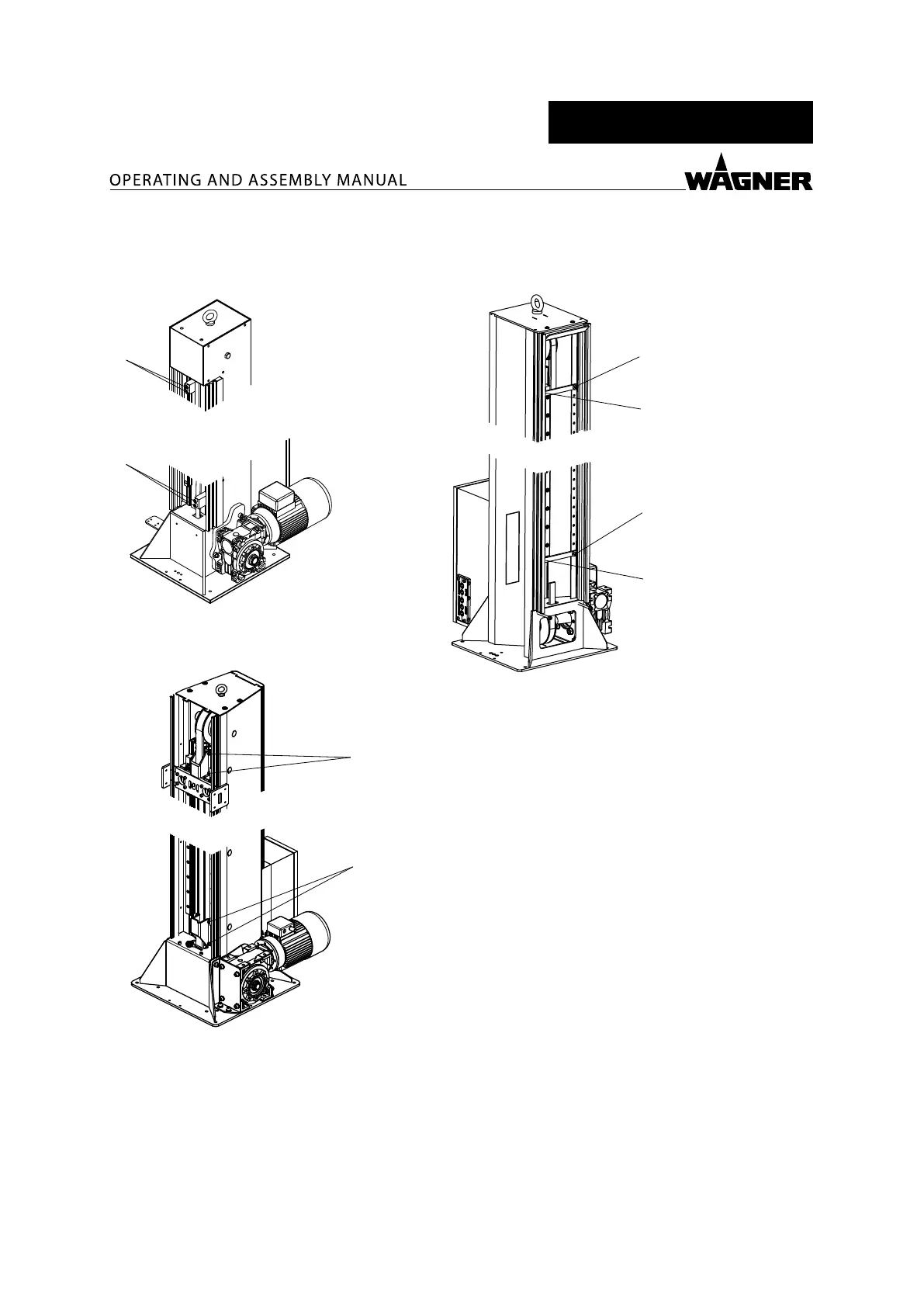

6.10 ADJUSTMENT OF THE UPPER AND LOWER STOPS
1
1
P_04289
1
1
1
1
1
1
VU 3
VU 1 VU 2
Procedure:
1. Loosen bolts (1) on the top and bottom limit stop.
2. Set the top and bottom limit stops in such a way that the guns cannot touch the
booth wall.
3. Tighten bolts (1) on the top and bottom limit stop.
