34
VERSION 03/2020 ORDER NUMBER DOC2330732
VU 1/VU 2/VU 3
6.6.5 SETTING UP THE FREQUENCY CONVERTER
The CAN node number has to be set on the reciprocator's frequency converter.
The setting takes place via the DIP switch 1-64.
Setting reciprocator 1: address 21 (DIP switch 1,3,5 ON)
Setting reciprocator 2: address 22 (DIP switch 2,3,5 ON)
Further reciprocators will be consecutively numbered (23, 24; ...).

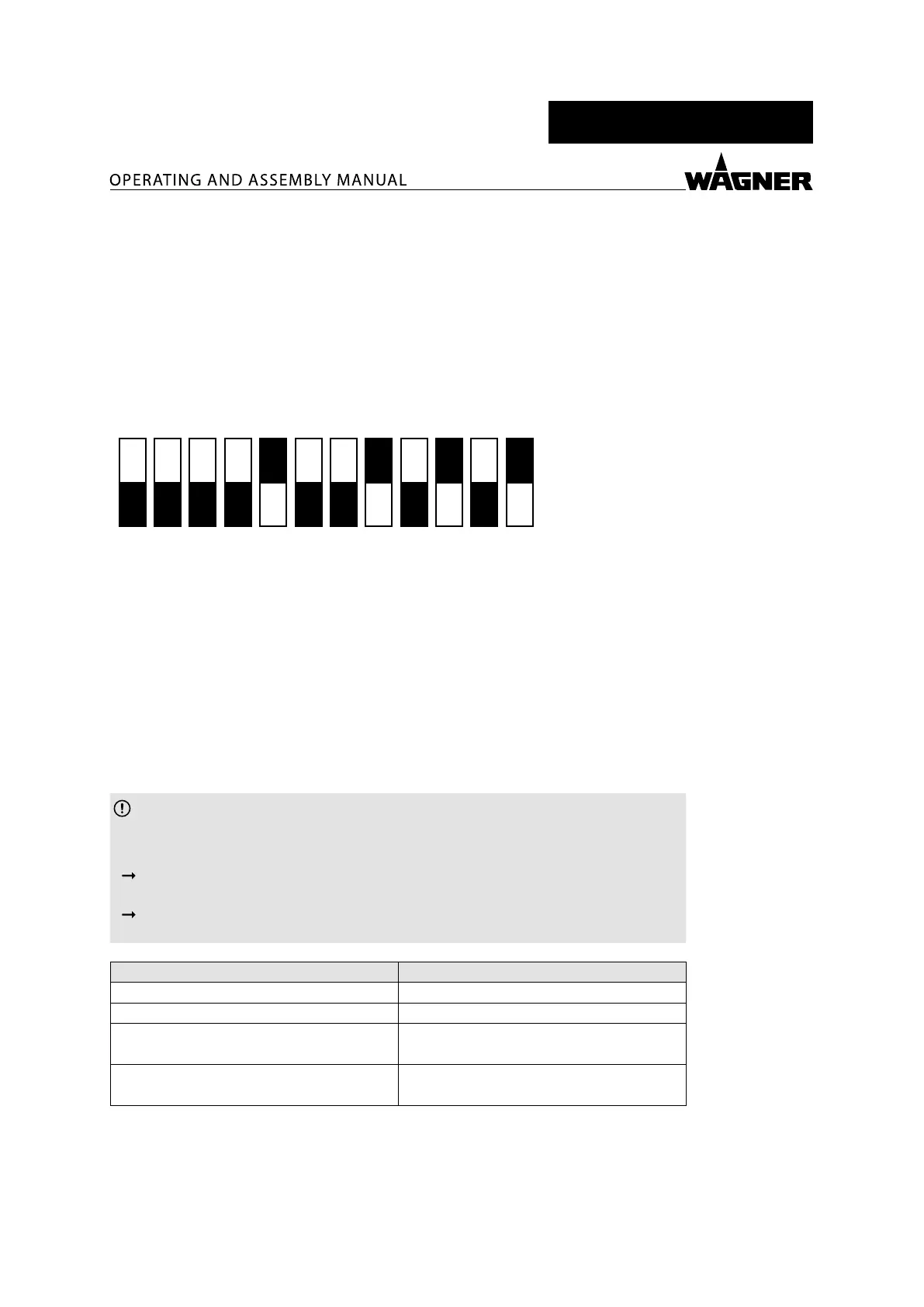

R d c b a 64 32 16 8 4 2 1
P_01990
Address: 21
Baud rate: 250
Terminating resistor: OFF
The baud rate can be set with switches a to d.
The value is set to 250 KB (switch "a" ON) in the factory.
On the last device of the CAN loop, switch R has to be set to ON.
6.7 DETERMINATION OF THE NUMBER OF GUNS
The number of guns is to be determined according to the type of gun.
NOTICE
Max. load on attachment bracket!
Danger of damage to the device.
Load capacity of the attachment bracket must not exceed 79 kg; 174.17 lbs for VU 1
and 33 kg; 73 lbs for VU 2 and 160 kg; 352.74 lbs for VU 3 (see chapter Technical Data).
Please ensure that the permissible load is not exceeded when changing the number
of guns at a later point in time.
Spray gun * Weight of the gun
PEA-C4 HiCoat Corona spray gun 555 g; 1.22 lbs
PEA-T3 Tribo spray gun 900 g; 1.98 lbs
PEA-C4XL-HiCoat Corona spray gun 1230 g/1450 g/1720 g/2000 g;
0.85/1.1/1.4/1.8 2.71 lbs/3.20 lbs/3.79 lbs/4.41 lbs
PEA-T3XL Tribo spray gun 1620 g/1840 g/2100 g/2400 g;
0.85/1.1/1.4/1.8 3.57 lbs/4.06 lbs/4.63 lbs/5.29 lbs
* The distance of the installed spray guns to each other must be at least 300 mm;
11.81 inches.
Mount the guns according to the operating manual of the respective gun.
