33
VERSION 03/2020 ORDER NUMBER DOC2330732
VU 1/VU 2/VU 3
1
2
P_01976
3
Procedure:
1. De-energize the device.
2. Secure it against being switched back on.
3. Ensure that it is de-energized.
4. Secure/fasten the lifting slide so it cannot move.
5. Switch the electrical power supply o.

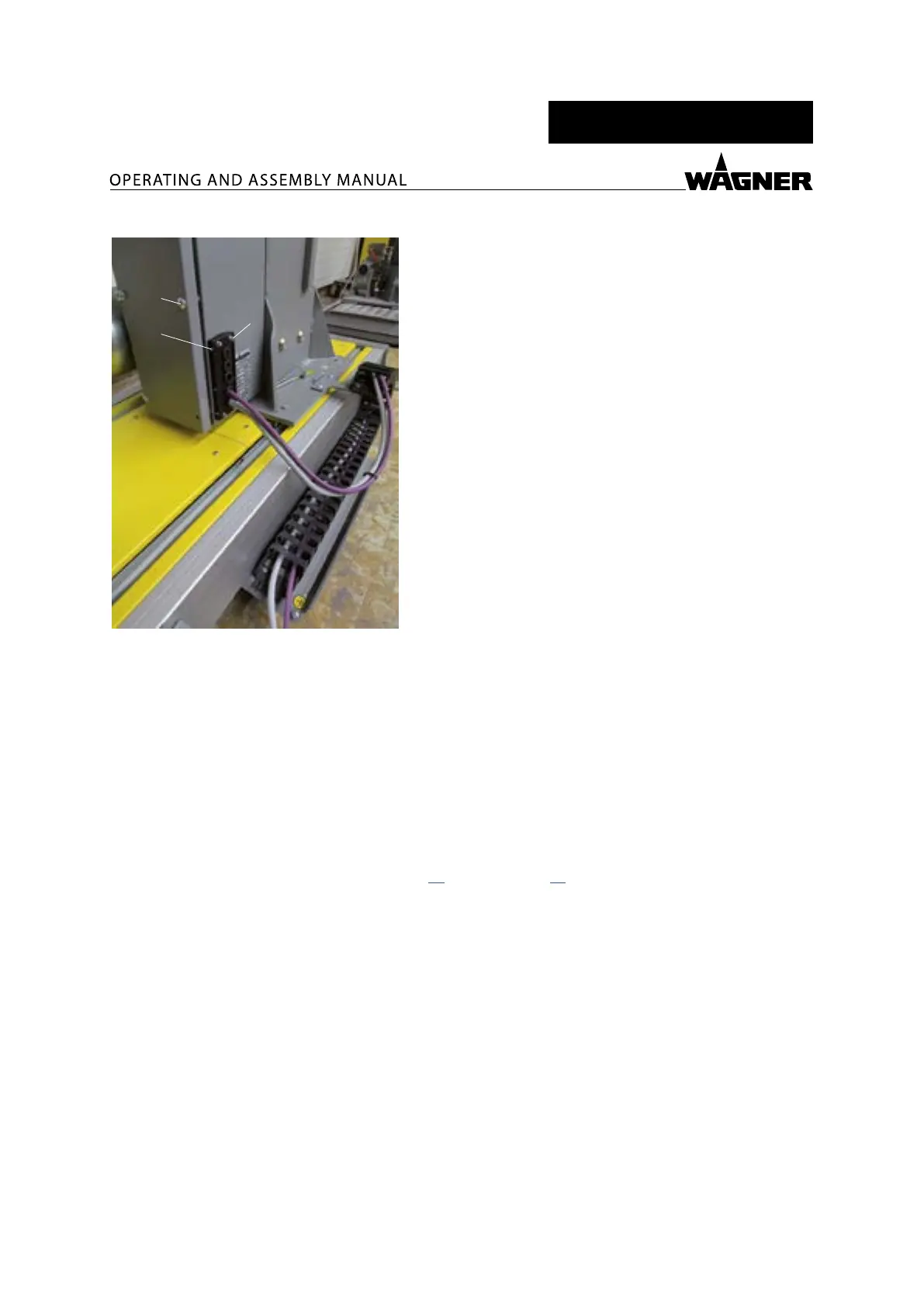

6. Unscrew the screws (1) on the reciprocator's control cabinet and take o the cover.
7. Unscrew screws (2) and remove the cable feedthrough from the control cabinet.
8. Unscrew screws (3) and pull the cable feedthrough apart.
9.
Pull the connection cable of the reciprocator through the cable feedthrough and
attach it to the control cabinet (see Chapter 15 and/or Chapter 16).
10. Put the cable feedthrough back together and secure it with screws (3).
11. Screw the cable feedthrough onto the control cabinet with screws (2).
12. Place the cover on the control cabinet and fasten it with screws (1).
13. Pull the connection cable through the energy chain of the sliding table and attach
it to the control cabinet of the sliding table.
