Cleaning the sampling cone assembly 5-25

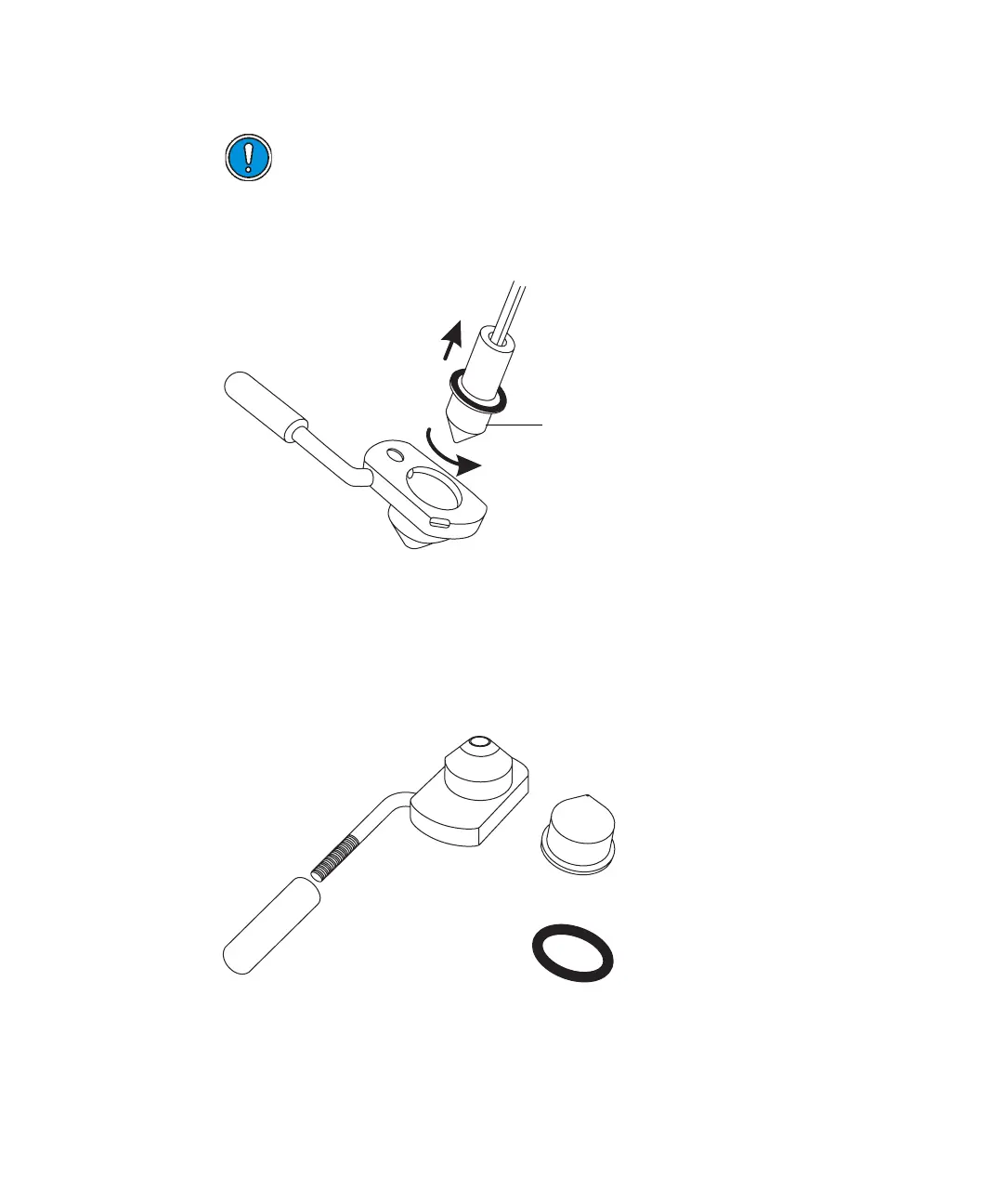

4. Rotate and lift the tool and collar to remove the sample cone from the
cone gas nozzle.
5. Remove the sample cone from the combined 2.5-mm Allen wrench and
cone extraction tool.
6. Replace the combined 2.5-mm Allen wrench and cone extraction tool in
its storage location on the source adaptor housing.
7. Remove the O-ring from the sample cone.
Caution: The sample cone is fragile. Never place it on its tip;
always place it on its flanged base.
Cone gas nozzle
Sample cone
Cone gas nozzle
O-ring
Cone gas nozzle
handle
Sample cone
