Setting up the camera 4-7
Setting up the camera
To set up the camera
1. On the Tune window click Source > Nanoflow.
2. Click to open the Camera Control dialog box.

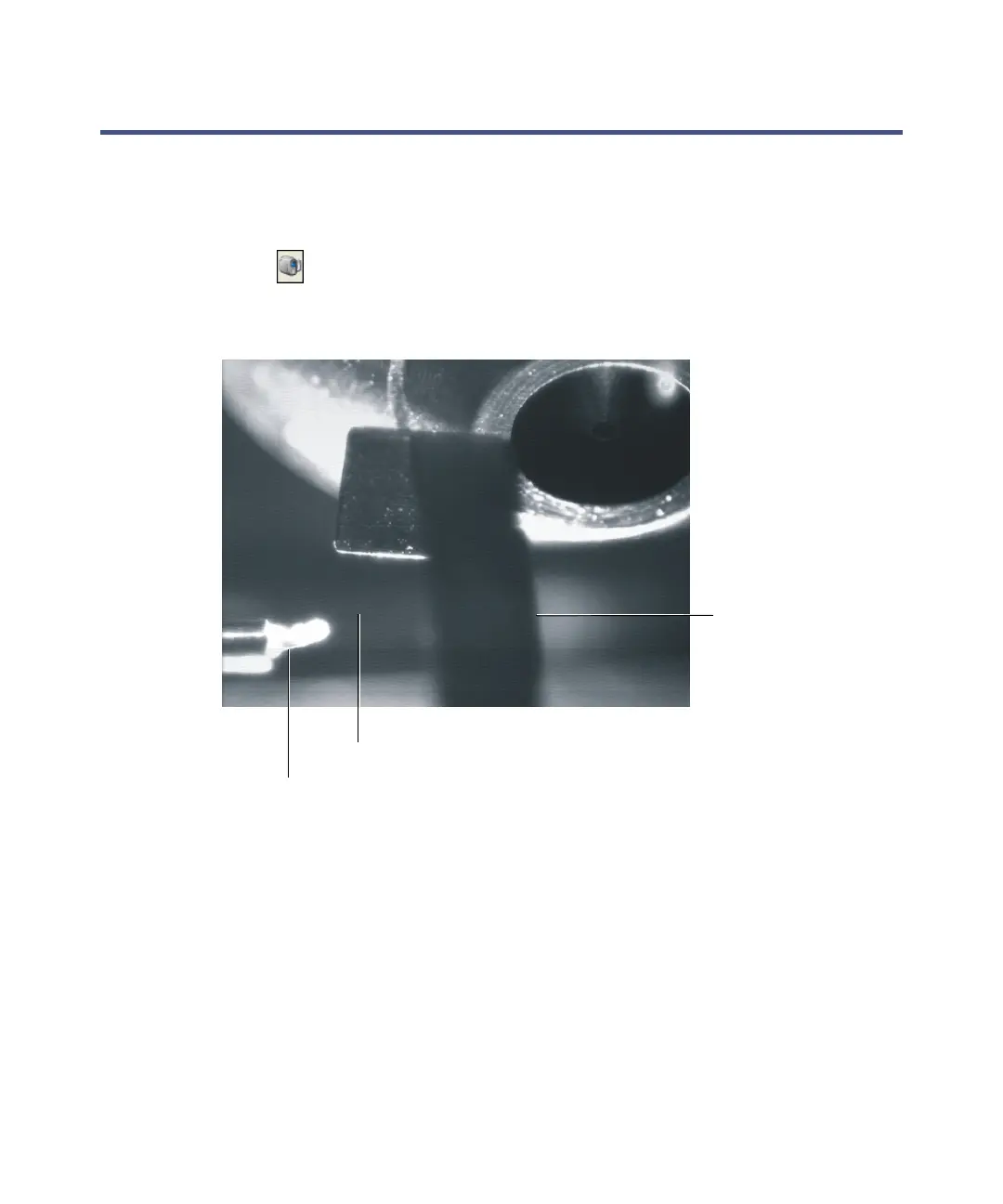

Camera Control view of sprayers and sample cone
3. Rotate the camera’s focusing ring to focus on the sample sprayer (see the
figure on page 4-2).
Sample cone
Baffle
Sample spray
Sample sprayer
