Cleaning the extraction cone 5-33
Removing the extraction cone from the ion block
Required materials
• Chemical-resistant, powder-free gloves
• Combined 2.5-mm Allen wrench and cone extraction tool
To remove the extraction cone from the ion block
1. On the rear of the ion block, using the combined 2.5-mm Allen wrench
and cone extraction tool, loosen the captive screws securing the 2 PEEK
extraction cone retainer clips, and then rotate the retainer clips clear of
the extraction cone.
Warning: The ion block components can be contaminated with
biohazardous and/or toxic materials. Always wear
chemical-resistant, powder-free gloves while performing this
procedure.

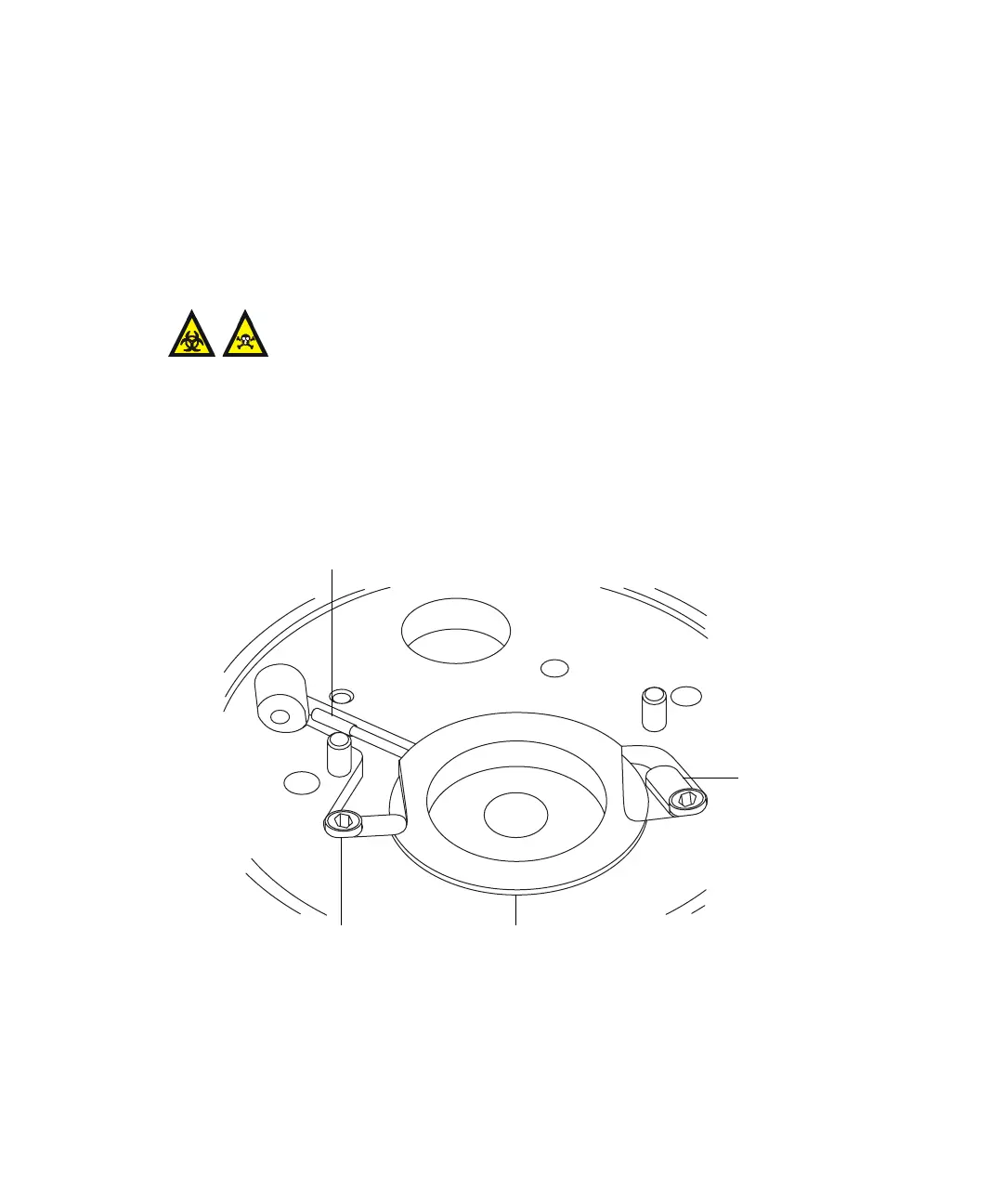

Securing screw Extraction cone
Retainer clip
rotated clear of the
extraction cone
Extraction cone handle insulator
