5-32 Maintenance Procedures

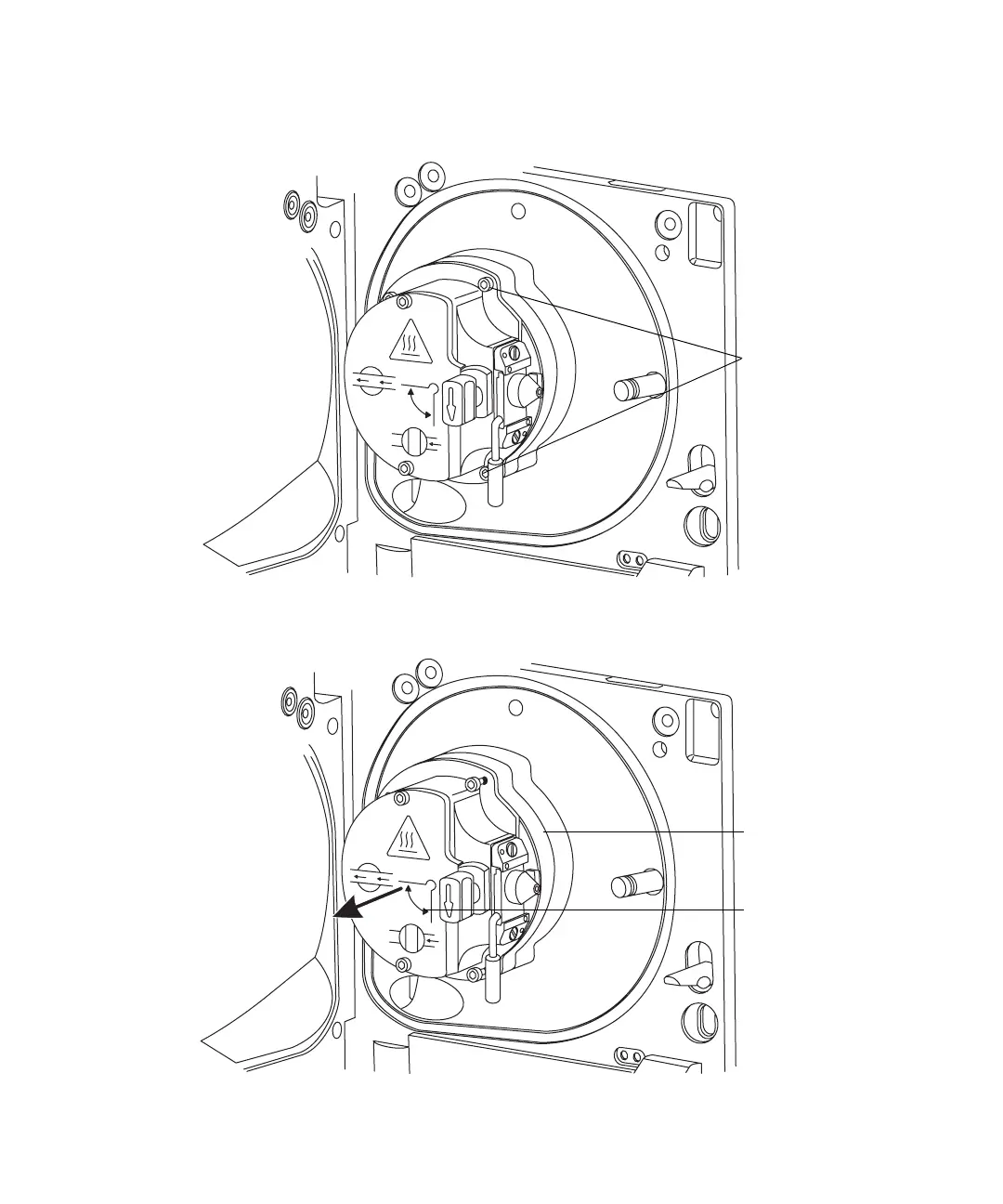

4. Using the combined 2.5-mm Allen wrench and cone extraction tool,
unscrew the 4 captive screws that secure the ion block assembly.
5. Remove the ion block assembly from the PEEK ion block support.
TP03130
Ion block assembly
securing screws
TP03130
Ion block assembly
PEEK ion block
support
