4-2 Configuring the NanoLockSpray source
Overview of the NanoLockSpray source
NanoLockSpray source

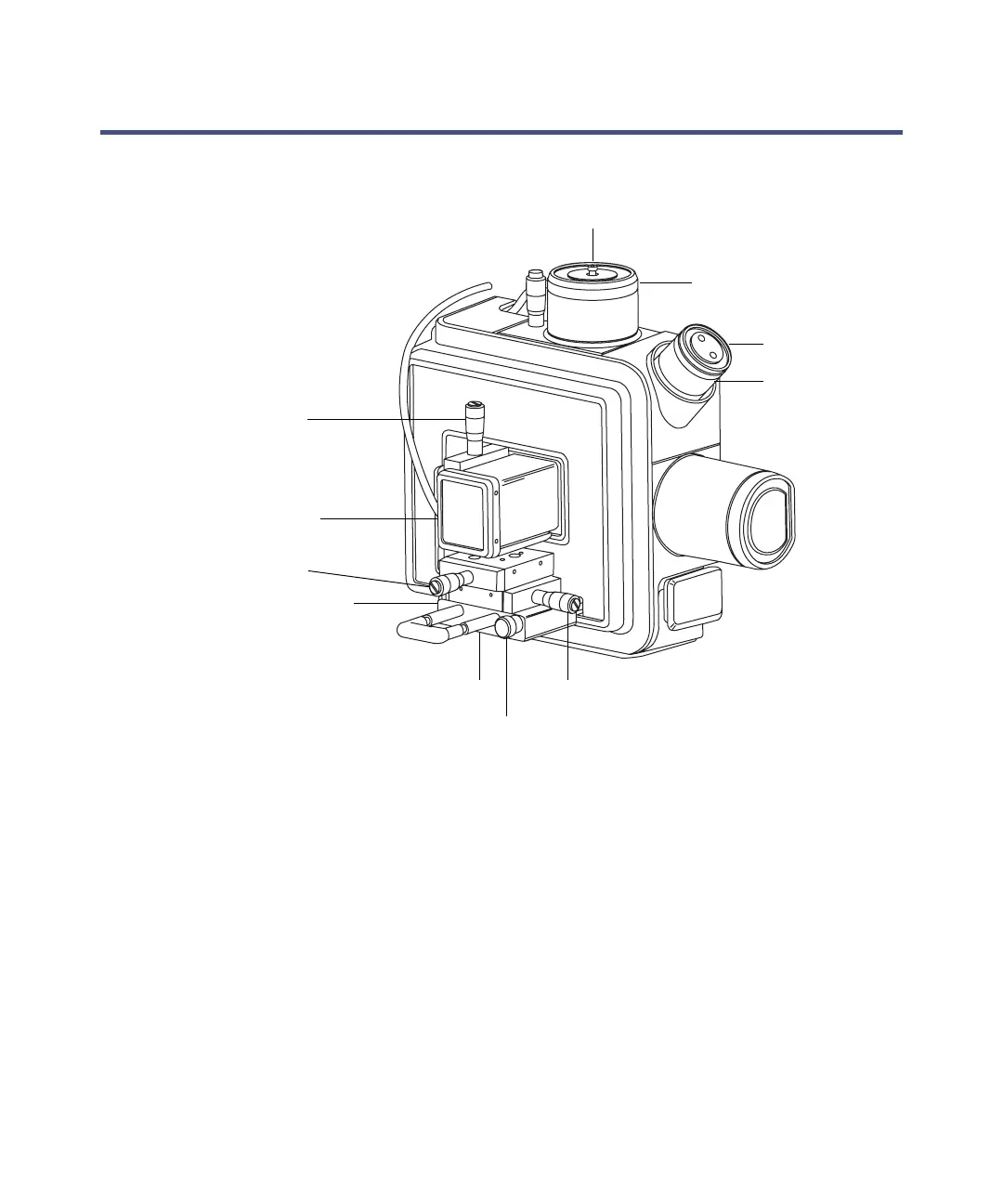

The NanoLockSpray source enclosure holds two nanospray sprayers
positioned orthogonally with respect to one another. The sample flows through
one sprayer and the lock-mass reference solution through the other. A
motorized baffle rotates to admit spray from either sprayer to the sampling
cone.
TP03199
Sprayer platform adjuster assembly
Thumbscrew
Thumbscrew (on left-hand
side of sprayer platform)
Sprayer safety cover
Z-position adjuster
Y-position adjuster
X-position adjuster
LockSpray sprayer inlet
NanoLockSpray reference
probe
Camera focussing
ring
Camera
