Waters SYNAPT G2 - Plumbing the Intellistart Fluidics Sample Delivery System

5-108 Maintenance Procedures
Plumbing the IntelliStart Fluidics sample delivery system
This section explains how to plumb the sample delivery system for standard
flow applications. For low flow, nanoACQUITY UPLC applications, the
column outlet passes directly to the nanoflow sprayer, bypassing the
IntelliStart Fluidics system.

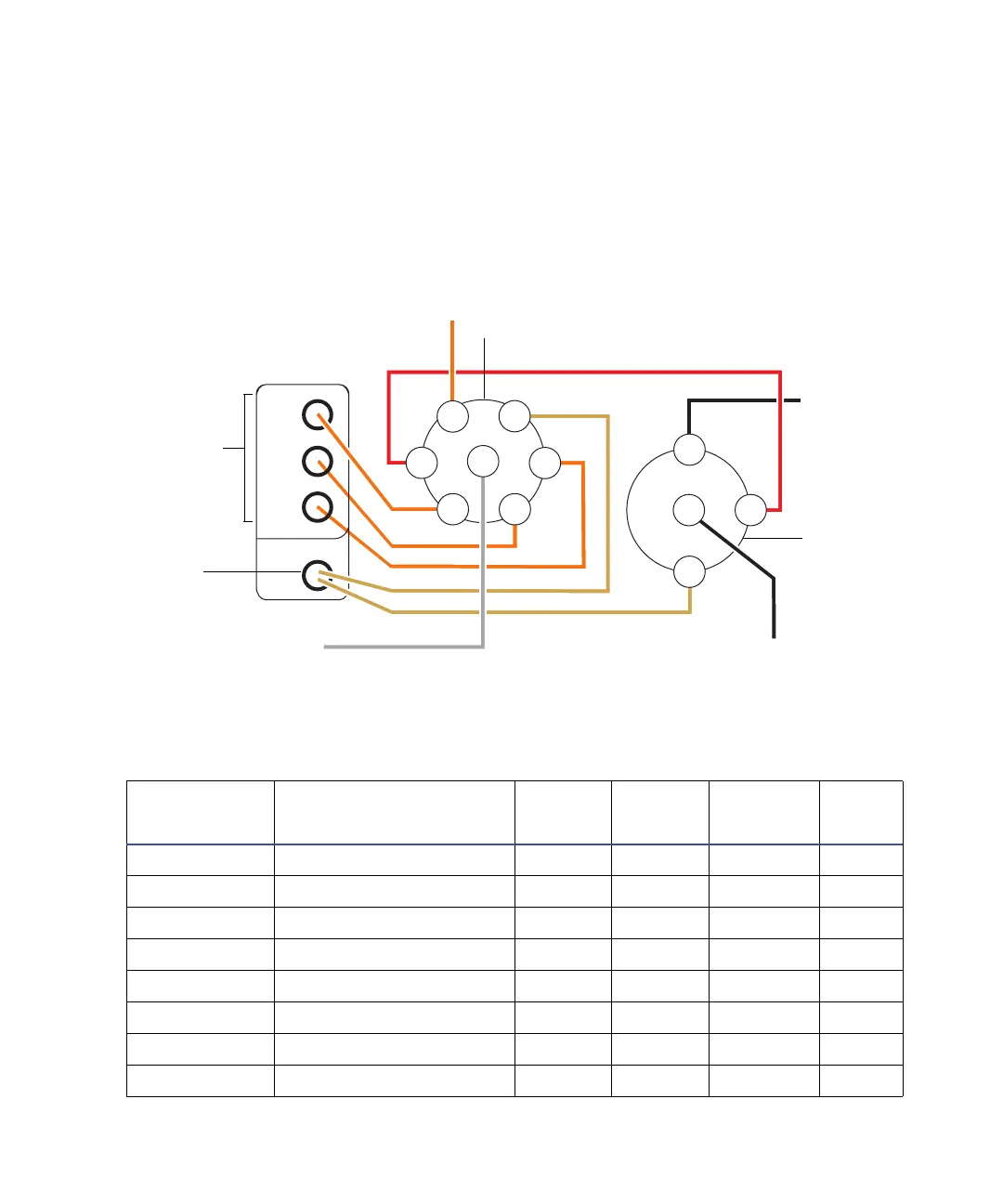

IntelliStart Fluidics sample delivery tubing schematic
All tubing is PEEK, with the exception of the connection between the pump
and sample selector valve, which is stainless steel.
Tubing dimensions—sample delivery system
Valve / Port Connection ID (inch)
OD
(inch)
Color
Length
(mm)
Sample / 1 Waste reservoir 0.040 1/16 Natural 1000
Sample / 2 Wash reservoir 0.020 1/16 Orange 1000
Sample / 3 Divert valve 0.005 1/16 Red 200
Sample / 4 Vial A 0.020 1/16 Orange 680
Sample / 5 Vial B 0.020 1/16 Orange 680
Sample / 6 Vial C 0.020 1/16 Orange 680
Sample / 7 Analyte pump 0.040 1/16 n/a 500
Divert / 4 Waste 0.040 1/16 Natural 1000
A
B
C
2
3
4
1
1
6
5
4
3
7
2
From pump
From wash bottle
To probe
From UPLC
Waste
port
Tubing
guides
Sample selector valve
Diverter
valve
