Waters SYNAPT G2 - Vacuum System Connections

Connecting the Edwards oil-free roughing pump B-3
Connecting the Edwards oil-free roughing pump
Required materials
• Chemical-resistant, powder-free gloves
• Sharp knife
•Speedivalves
• NW25 tees (included in the SYNAPT™ G2 installation kit)
• NW25 elbows (included in the SYNAPT G2 installation kit)
• NW25 center rings (included in the SYNAPT G2 installation kit)
• NW25 clamps (included in the SYNAPT G2 installation kit)
• NW40 center rings (included in the SYNAPT G2 installation kit)
• NW40 clamps (included in the SYNAPT G2 installation kit)
• NW25/NW40 adaptor (included in the SYNAPT G2 installation kit)
• 12.7-mm clear PVC exhaust tubing (included in the SYNAPT G2
installation kit)
• PVC hose clamps (included in the SYNAPT G2 installation kit)
• Vacuum hoses (included in the SYNAPT G2 installation kit)

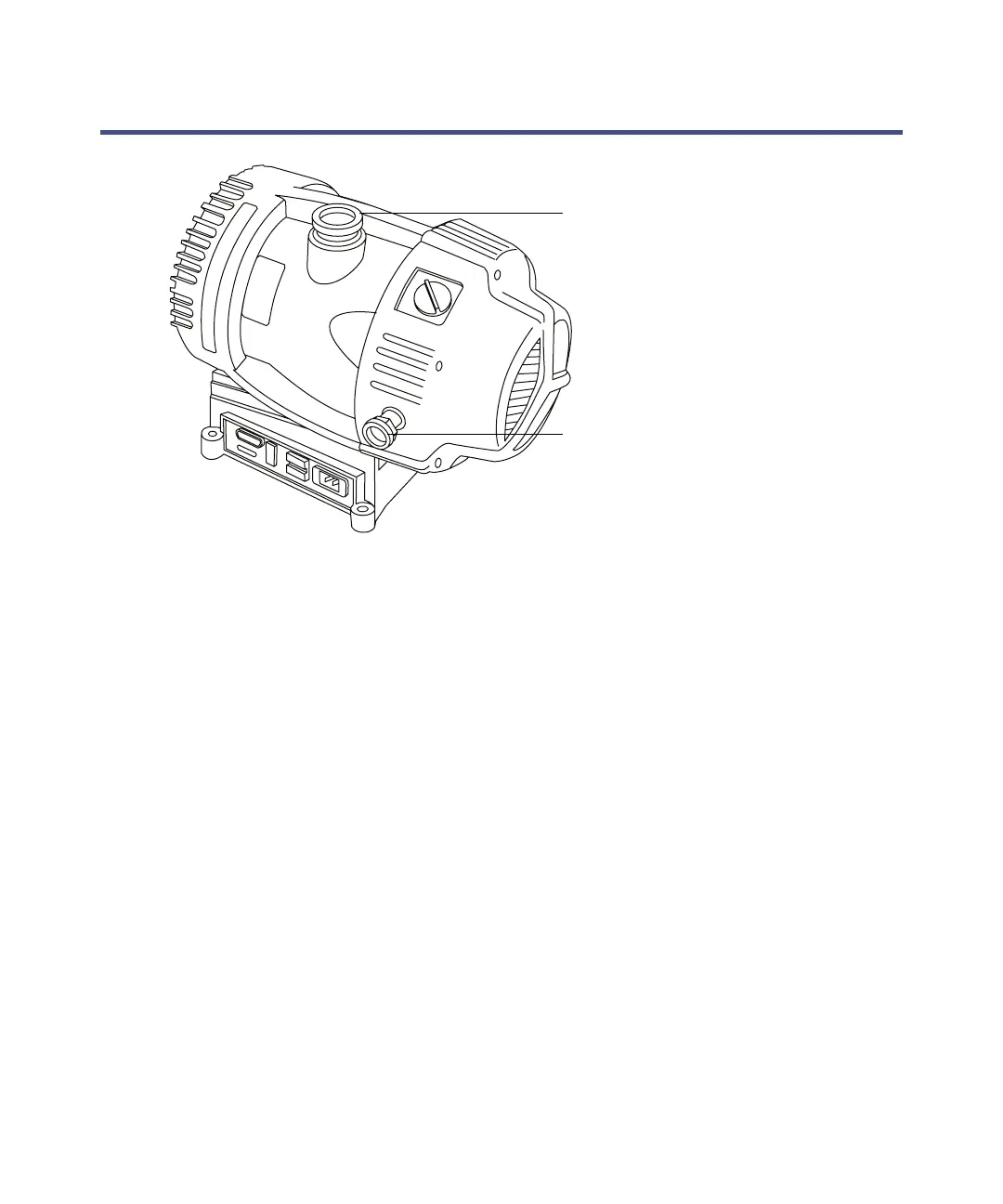

TP03165
Inlet flange
Exhaust port flange
