Replacing the NanoLockSpray reference probe capillary 5-79
6. Using the combined 2.5-mm Allen wrench and cone extraction tool,
unscrew the 3 fixing screws from the top of the NanoLockSpray
reference probe.
7. Remove the NanoLockSpray reference probe from the probe adjuster
assembly.
8. Unscrew the TaperTip PEEK coupler, and remove the TaperTip from
the union.
Warning: The NanoLockSpray reference probe tip consists of 5 cm
of exposed, fused-silica TaperTip, which is sharp and fragile. To
avoid puncture wounds, handle the probe with care.

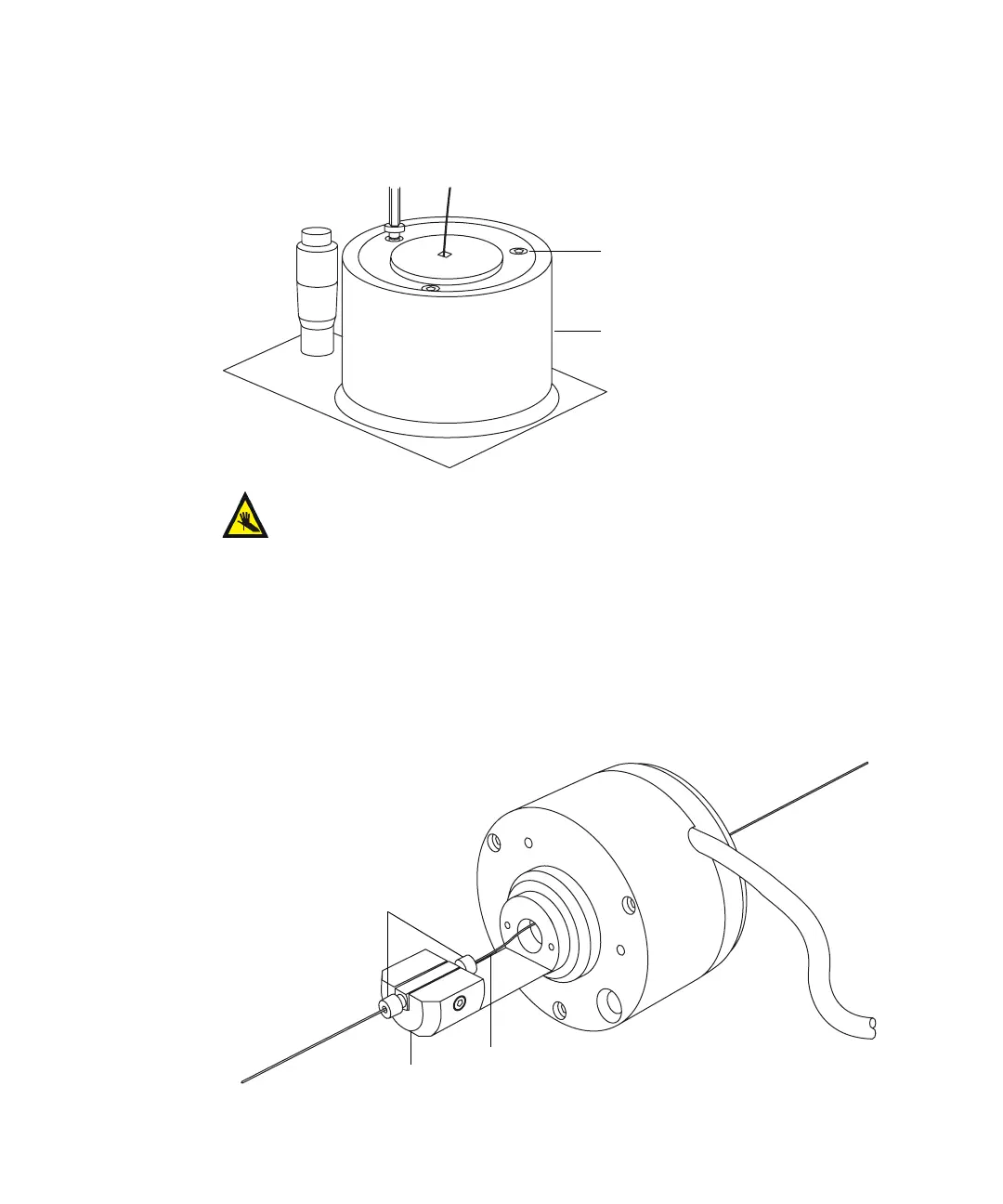

NanoLockSpray reference
probe
Fixing screw
TaperTip
PEEK couplers
Union
Fused-silica capillary
Fused-silica capillary with
PEEK protective sleeve
