5-88 Maintenance Procedures

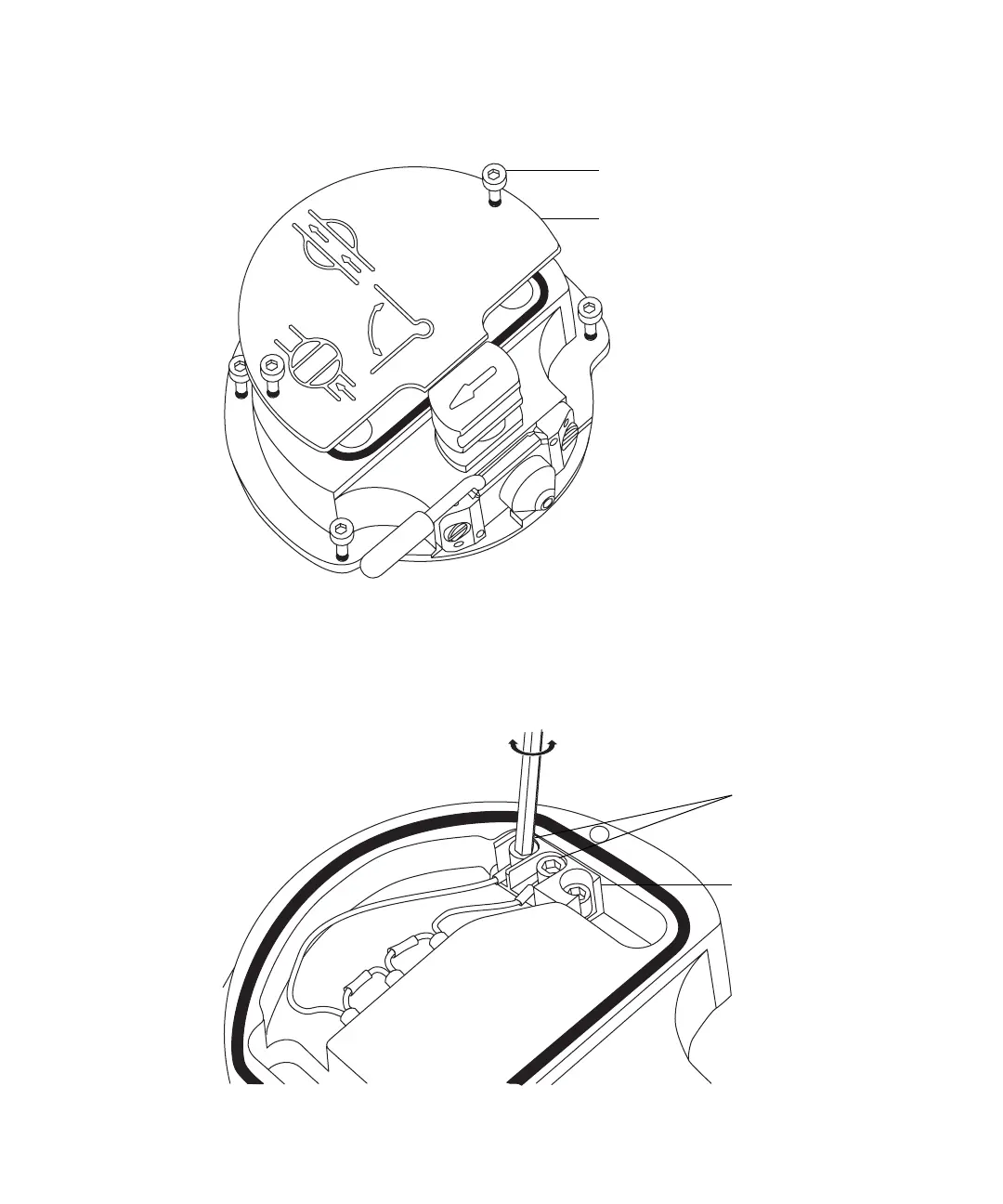

3. Using the combined 2.5-mm Allen wrench and cone extraction tool,
loosen the 2 captive screws securing the ion block cover plate.
4. Remove the ion block cover plate.
5. Using the combined 2.5-mm Allen wrench and cone extraction tool,
remove the 2 screws securing the heater wires to the PEEK terminal
block.
Ion block cover plate securing screw
Ion block cover plate
Heater cartridge wire
securing screws
PEEK terminal block
To Next Page
