5-92 Maintenance Procedures
1. Remove the source enclosure from the instrument (see page 5-8).
2. Using the O-ring removal kit, carefully remove the following seals from
the probe adjuster assembly:
• Probe seal
• Nebulizer gas seal
3. Using the O-ring removal kit, carefully remove the following seals from
the source enclosure:
• Source enclosure seal
• Nebulizer gas seal
• Desolvation gas seal

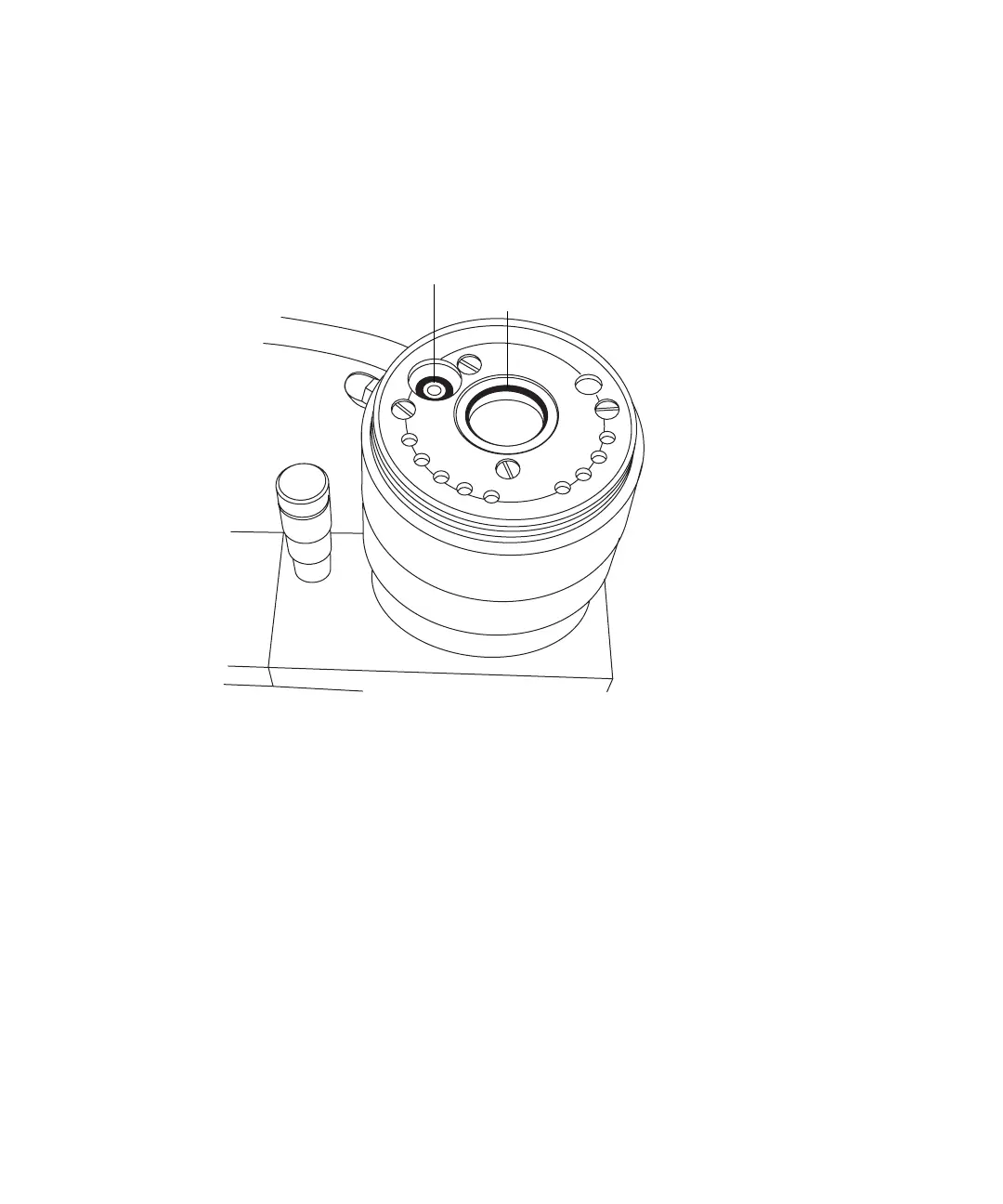

Probe adjuster nebulizer gas seal
Probe adjuster assembly probe seal
