Waters SYNAPT G2 - Page 184

5-106 Maintenance Procedures

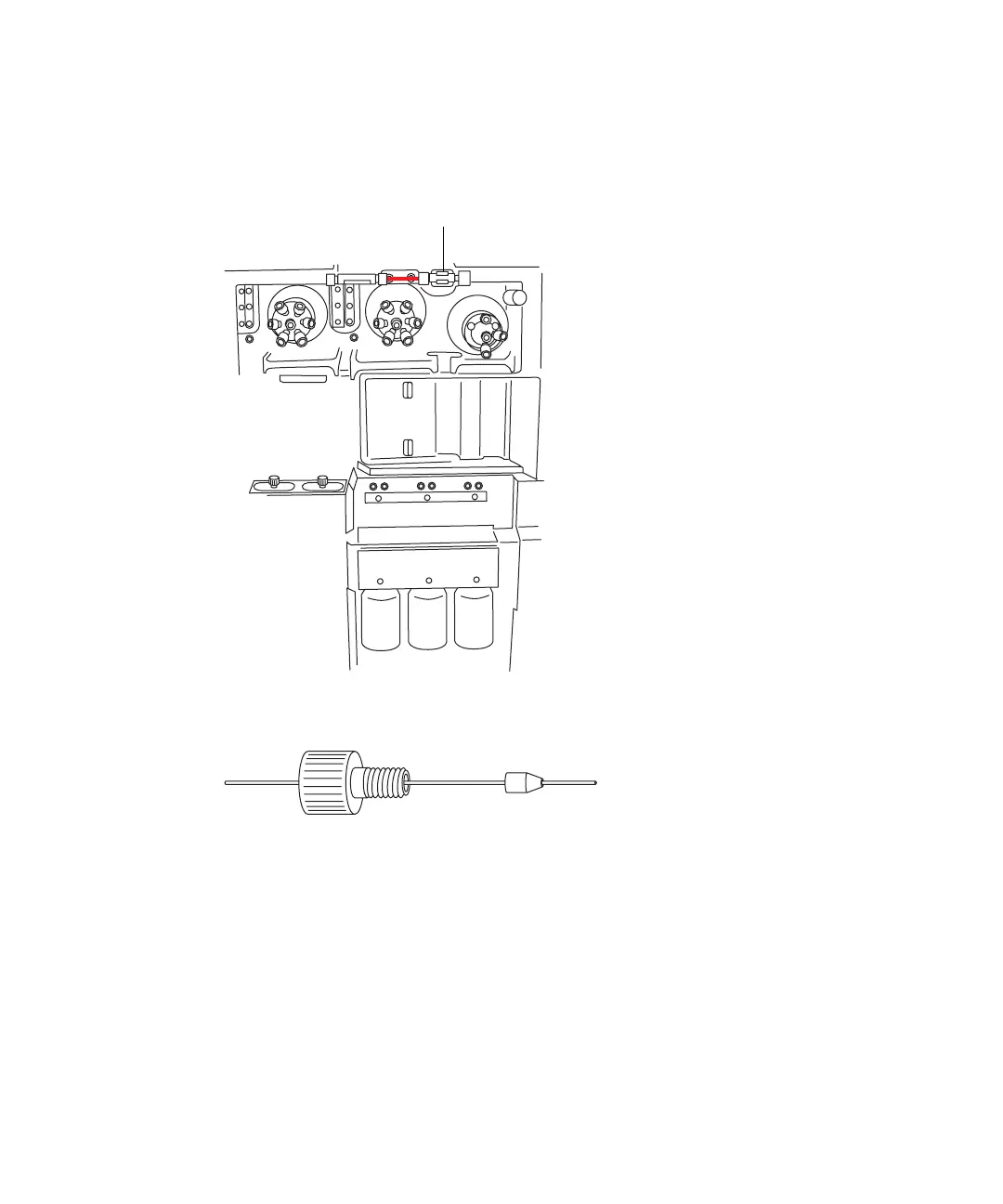

9. Using a 1/32-inch, Valco component fitting assembly, connect the red,
1/32-inch, 60-mm, PEEK tubing between the flow sensor and the
grounded union, where you use a short "finger tight" nut and 1/32-inch
ferrule.
Short "finger tight" nut and 1/32-inch ferrule
A
B
C
A
B
C
A
B
C
W
aters
A
B
C
Grounded union
