3-4 Configuring the LockSpray Source
ESI probe, mounted on the LockSpray source enclosure
4. Tighten the probe locking ring to secure the probe in place.
5. Connect the ESI probe’s cable to the high voltage connector.
6. Slide open the instrument’s source interface door.
Caution: To avoid nitrogen leakage, fully tighten the probe locking
ring.

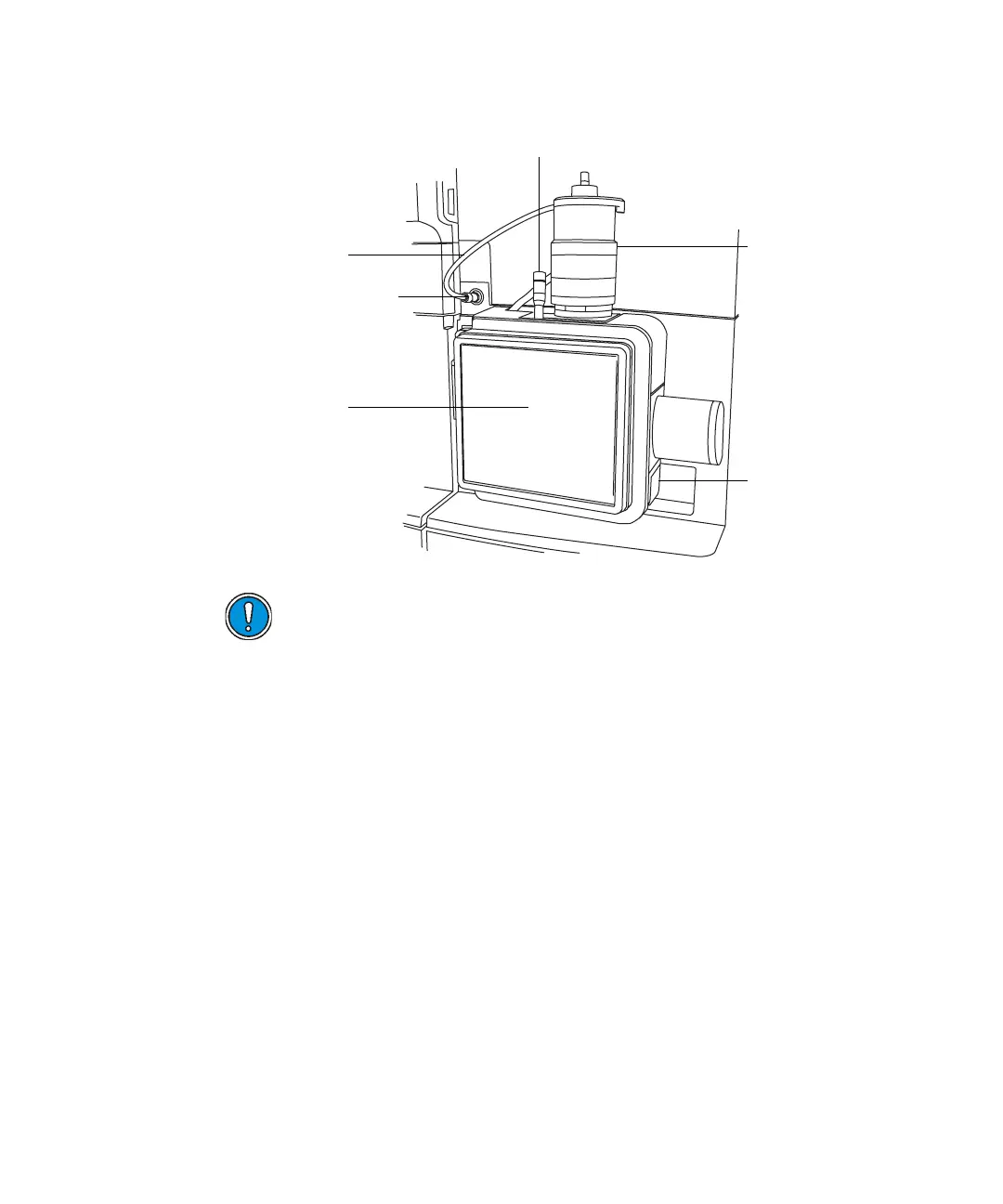

TP03128
ESI probe cable
ESI probe
Vernier probe adjuster
Probe locking ring
Source window
High voltage connector
Source enclosure
release
