Installing the ESI small bore capillary option 3-13

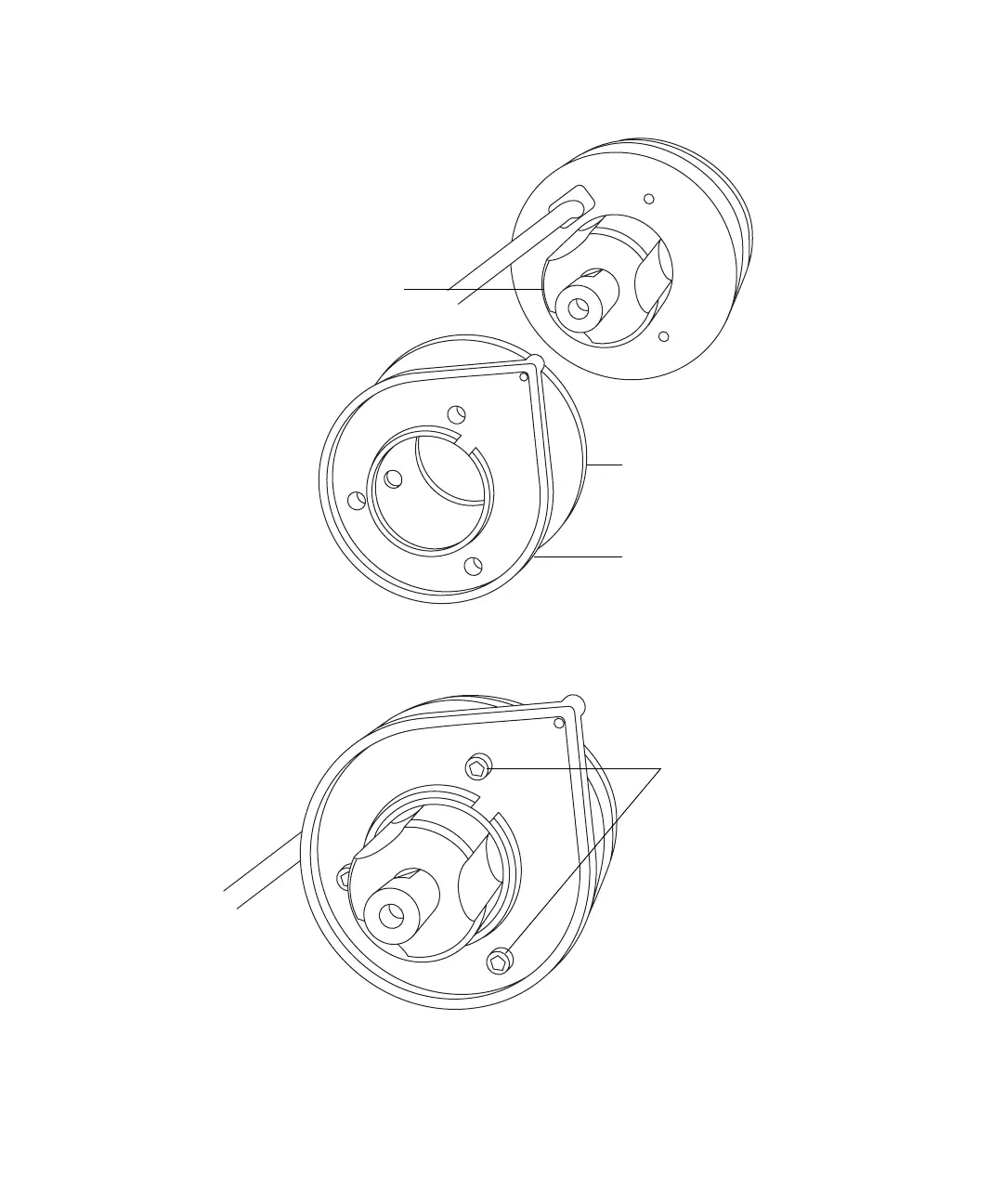

23. Fit the end cover and gasket to the probe assembly.
24. Using the combined 2.5-mm Allen wrench, fit and tighten the 3 screws
that retain the end cover.
End cover
Nebulizer adjuster knob
Gasket
End-cover retaining screws
