Waters TQ Detector User Manual

Installing the IonSABRE APCI probe 4-5
4. Secure the IonSABRE APCI probe by tightening the 2 thumbscrews
shown in the following figure.

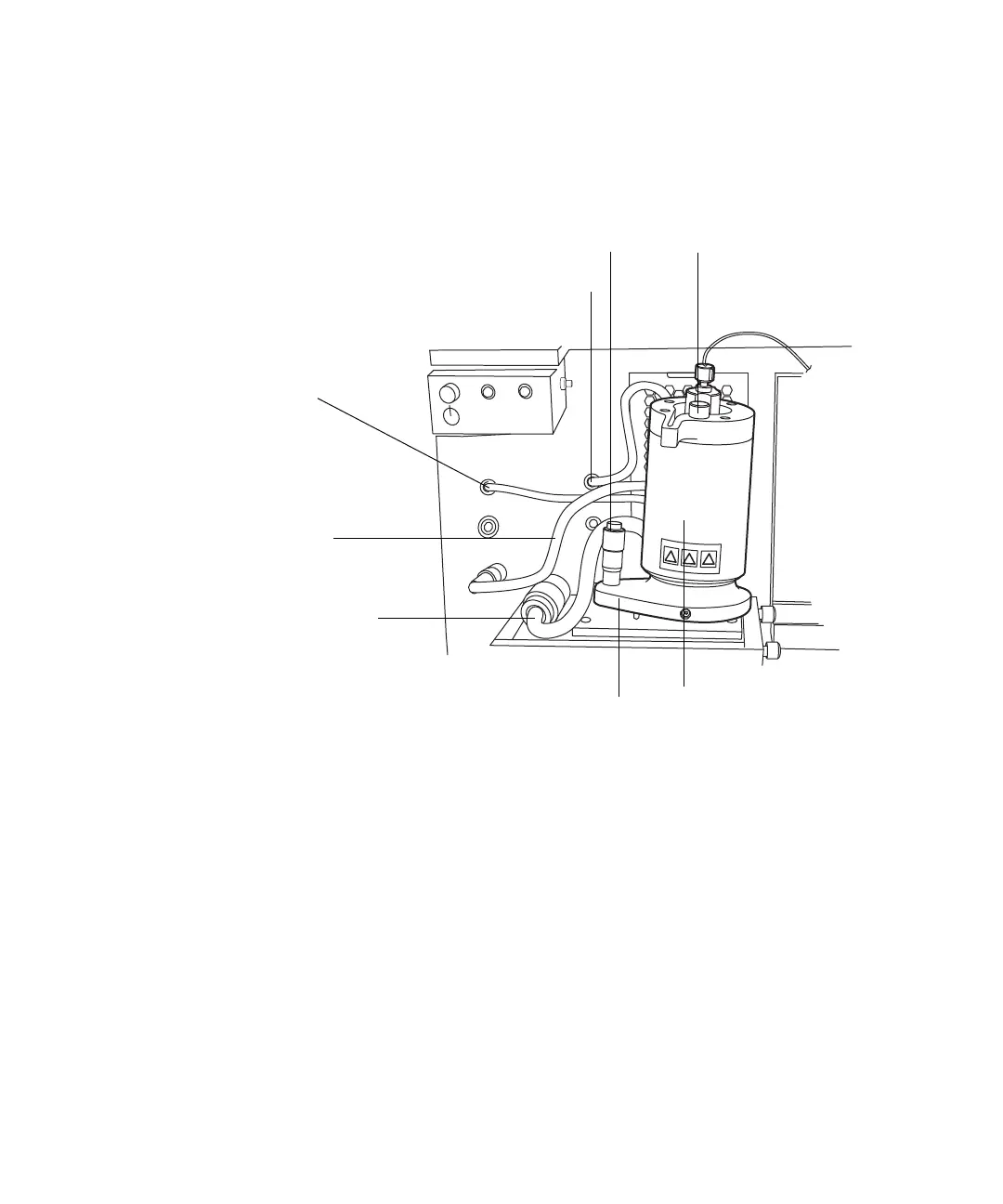

IonSABRE APCI probe mounted on the source enclosure, showing the
connections to the front panel
5. Connect the IonSABRE APCI probe’s PTFE tube to the nebulizer gas
connection.
6. At the instrument’s front panel, disconnect the probe adjuster
assembly’s electrical lead from the probe connection.
POWER
OPERATE
NEBULIZER
HV
APPI
PROBE
DESOLVATION
Thumbscrew
Nebulizer gas connection
Desolvation gas
connection
Probe adjuster assembly
APCI probe
electrical lead
Probe adjuster
assembly electrical
lead (not connected
when using the
IonSABRE APCI
probe)
Vernier probe adjuster
IonSABRE APCI probe
