5-22 Maintenance Procedures

3. Grasp the cone gas assembly connection tube, and use it as a lever to

rotate the cone gas assembly 90 degrees, moving the connection tube

from the vertical to the horizontal position.

4. Slide the cone gas assembly out of the ion block assembly.

Caution: Do not open the isolation valve at any time when the

cone gas assembly has been removed from the ion block

assembly.

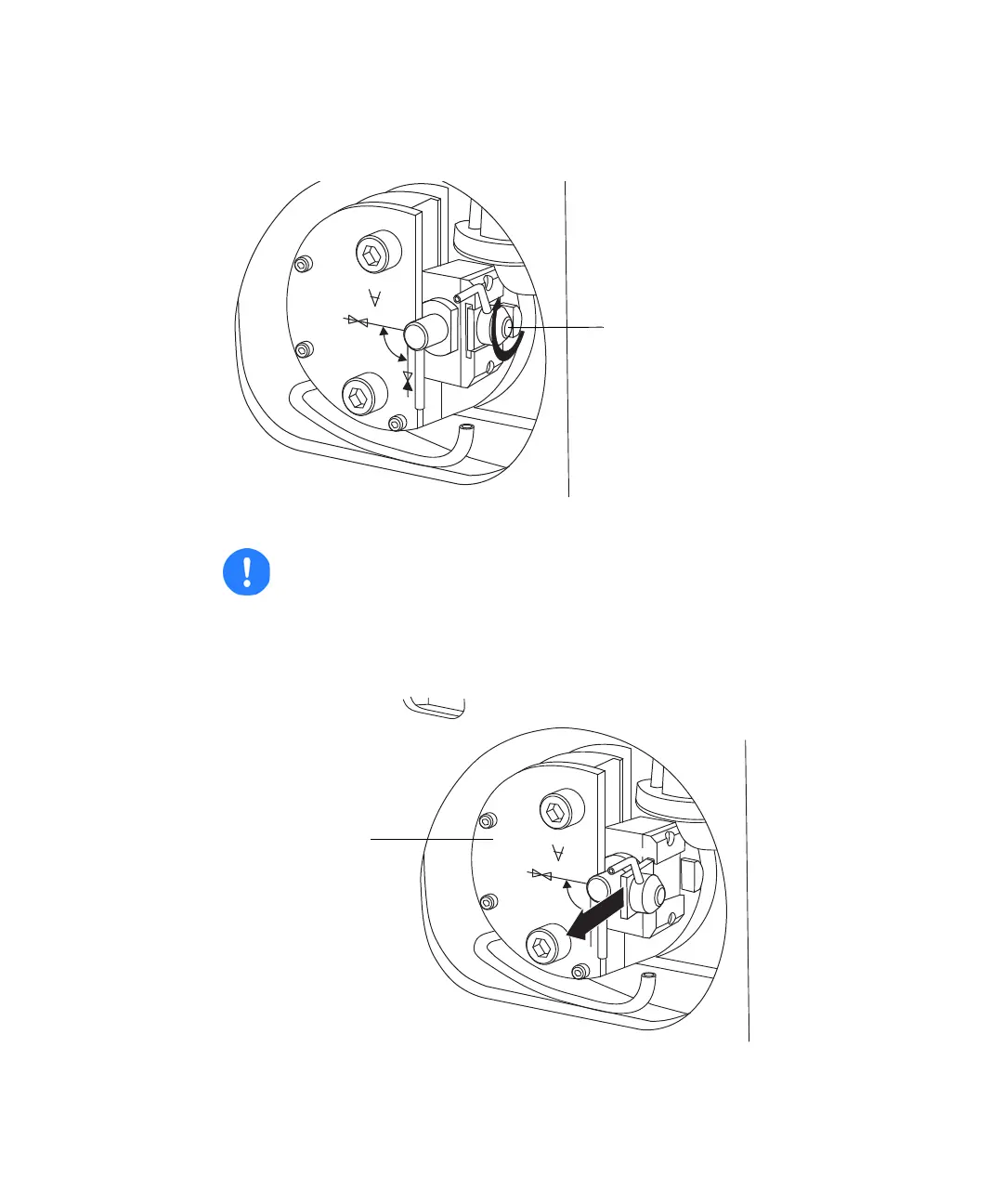

RP00007

Cone gas assembly

rotated 90 degrees

RP00008

Ion block assembly
