Operation
7.8 Working with the vehicle
128
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
Measures in case of system errors
1. Stop the vehicle immediately.
2. Note the LED code.
3. Contact an authorized service center.
ð The stability indicator must be checked and repaired immediately by
an authorized service center.
All repairs and adjustment work to be performed to the stability indicator
and overload shutdown may only be carried out by authorized qualified
personnel.
7.8.5
Load diagram
Invalid path '292282892/289181451/131846/'
5,0
4,5
3,0
3,5
4,0
1,5
2,0
1,0
0,5
2,5
0
-0,5
1,01,52,02,53,03,5
1568 kg
1358 kg
1044kg
933kg
0,5 m
[m]
[m]

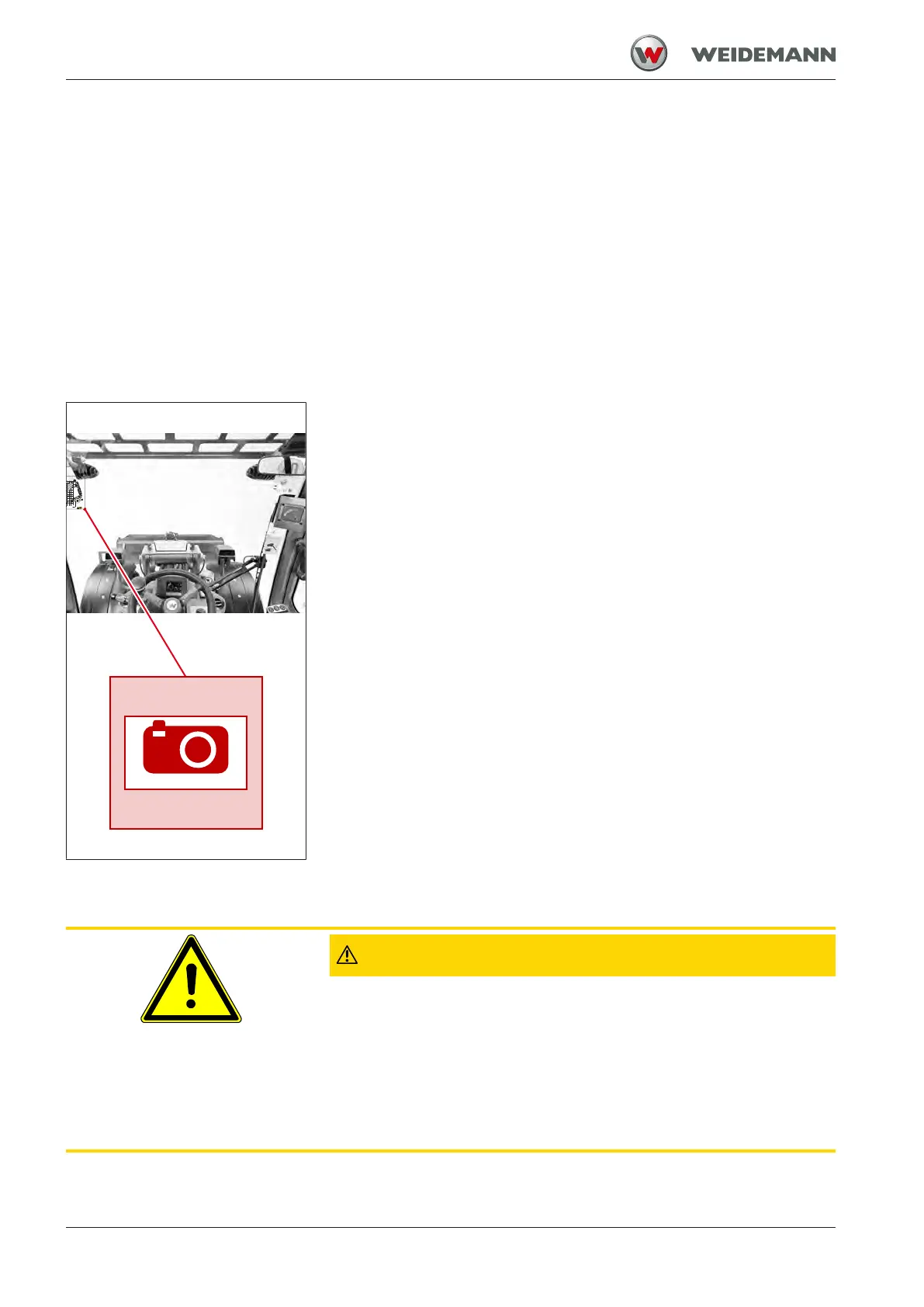

Fig.114: Load diagram in cab
Observe the specifications on the load diagram. The load diagram is loc-
ated in the cab on the front window. For more information about load ca-
pacity: see Payload, load capacity and axle load on page 236.
7.8.6
Using the joystick lock function
CAUTION
Risk of accident due to unintentional operation of the joystick when
driving on the road!
Unintentional operation of the joystick can lead to unintentional move-
ments of the loader unit. This can cause accidents that lead to injuries.
► Always lock the loader unit when driving on the road.
► Always lock the loader unit before leaving the vehicle.
► First take a seat on the seat, then unlock the joystick.
