Operation
7.10 Operating the rear hydraulic connections
144
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]

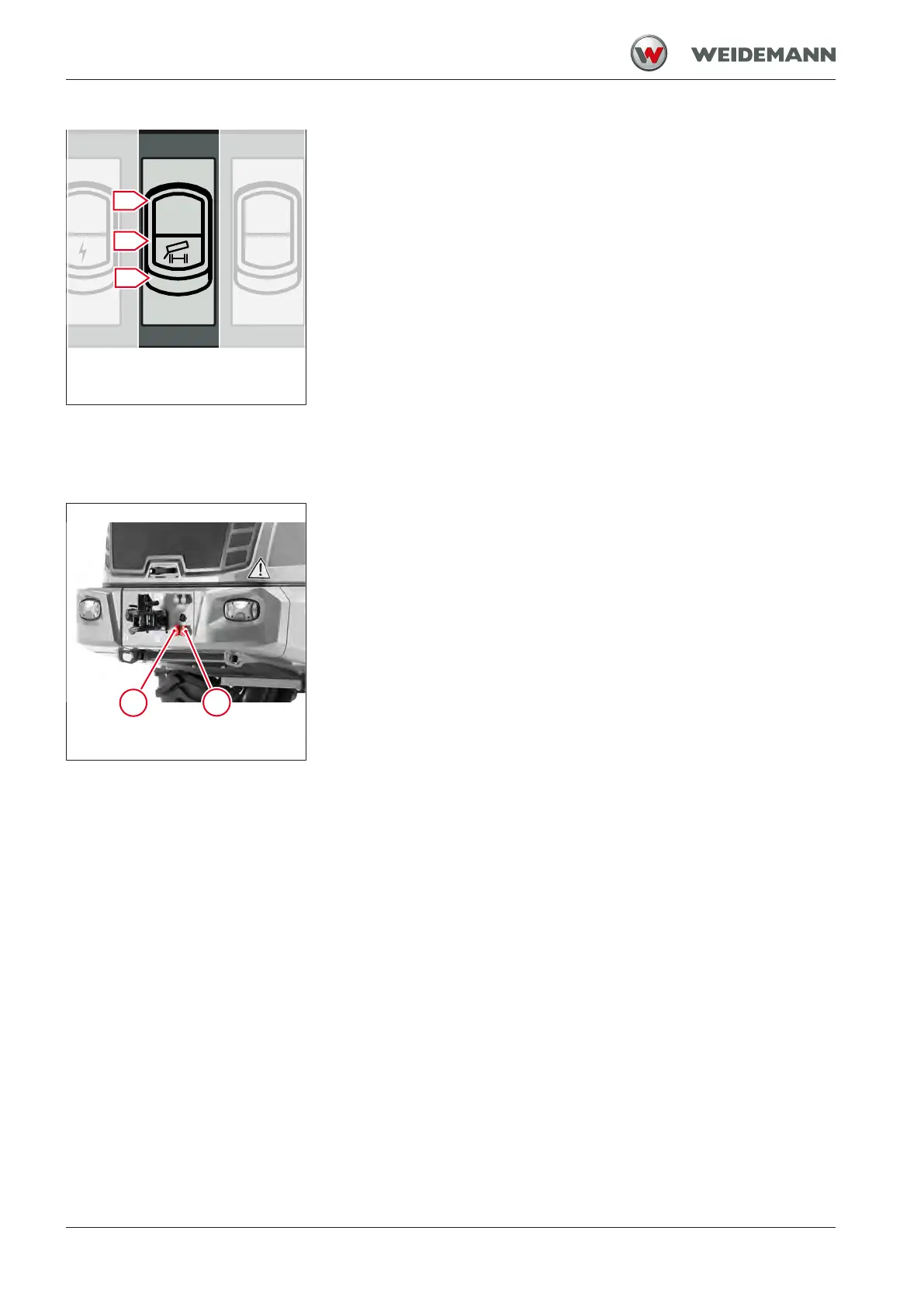

Fig.133: Operating the rear hy-
draulic connections in continuous op-
eration
The rear hydraulic connections in continuous operation are operated with
the switch in the switch panel on the side console.
The switch has three positions. The hydraulic connections are fitted with
red protective caps.
▪ Move the switch to position I.
ð Hydraulic connection 4 is pressure side, hydraulic connection 3 is re-
turn flow.
▪ Move the switch to position II.
ð Hydraulic connection 4 is return flow, hydraulic connection 3 is pres-
sure side.
▪ Move the switch to position 0.
ð The rear hydraulic connections are switched off.
7.10.3
Operating rear hydraulic connections with the scroll wheel
Fig.134: Active hydraulic connec-
tions for switch-over function
The vehicle is optionally equipped with a switch-over function. The
switch-over function enables the rear hydraulic connections 1 and 2 at
the rear to be operated via the scroll wheel for the third control circuit on
the joystick.
If this function is used, the hydraulic connections can also be used in con-
tinuous operation. For the operation of the hydraulic connections: see
Standard hydraulic connections in continuous operation on page 137.
The hydraulic connections on the loader unit and the rear hydraulic con-
nections cannot be operated at the same time for this function.
