Working with the 4-in-1 bucket

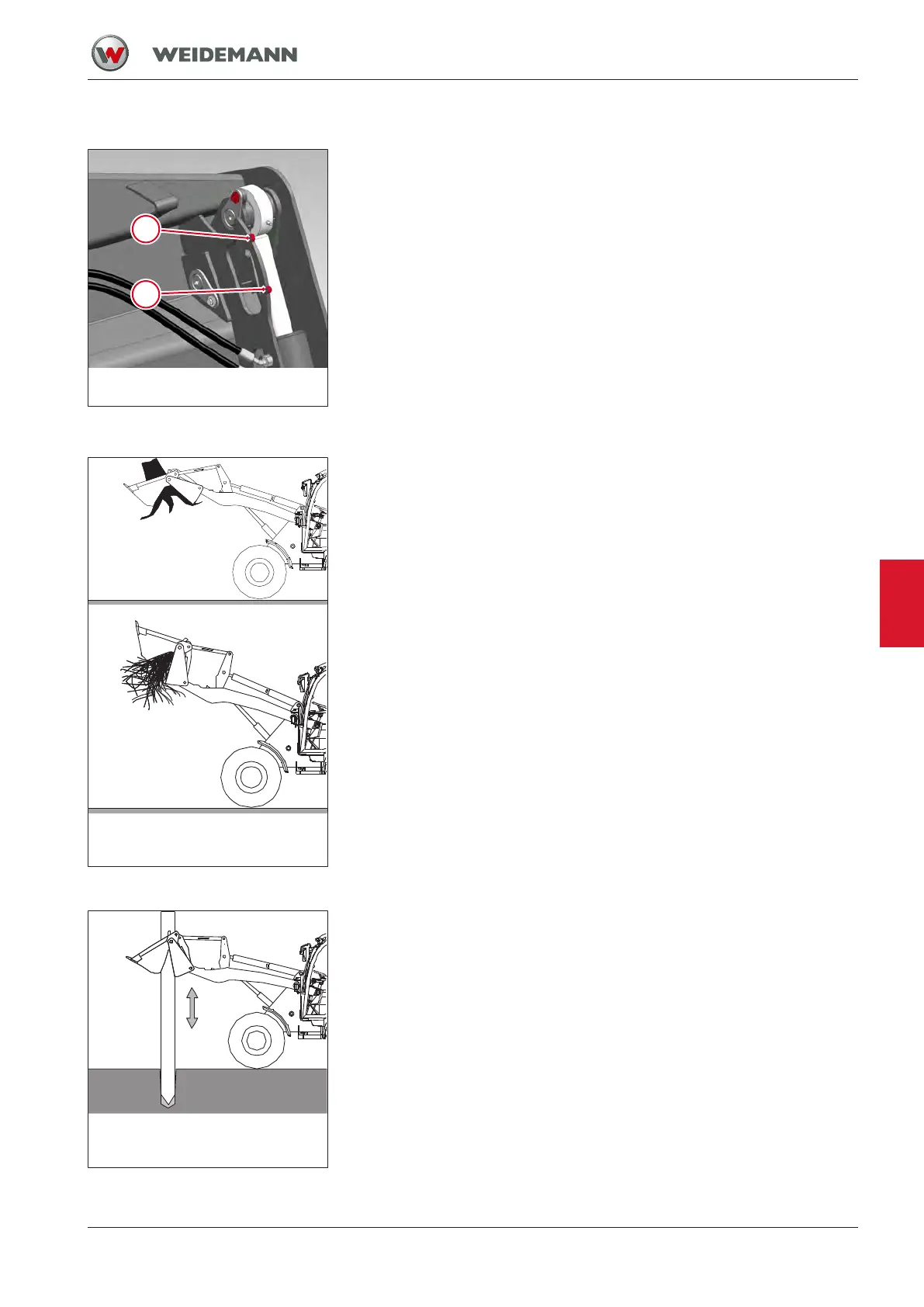

Fig.147: Working with the 4-in-1
bucket
Orientation aids are affixed to the attachment. The fastening screw for the
cylinder lock is marked in color. Marks are attached to the bucket itself
next to the hydraulic cylinders. The marks indicate how far the bucket is
open. This facilitates the application of, e.g. chippings or sand.
• Position I = Bucket is slightly open.
• Position II = Bucket is wide open.
Loading and excavation work
The closed 4-in-1 bucket can be used as a lightweight material bucket or
earth bucket. For operation, refer to the chapter see Using the lightweight
material bucket and earth bucket on page 150.
The bucket is opened, and not tilted out, for unloading at higher heights.
Fig.148: Grabbing large, bulky ob-
jects
Grabbing large objects
Bulky or large objects can be grabbed and safely transported with the 4-
in-1 bucket.
1. Open the bucket.
2. Position the bucket over the object to be grabbed.
3. Lower the loader unit.
4. Close the bucket.
ð Lift and transport the object to be picked up.
Fig.149: Pulling out and replacing
posts
Pulling out and replacing posts
1. Open the bucket.
2. Place bucket over the post.
3. Lower the loader unit.
4. Close the bucket.
5. Grasp the post securely.
6. Loosen the post by carefully moving it upwards and downwards.
7. Raise the loader unit.
ð Pull out the pole.
