7.12 Working with attachments
154
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
Grading
NOTICE
Damage to the loader unit!
Avoid damage to the telescopic boom!
When loading, leveling and digging with the telescopic boom extended,
large lever forces occur which can damage the telescopic boom and the
hydraulic cylinders.
When leveling and scraping operations with the stacking mode switched
on, the telescopic boom also extends and can bend.
► Not with telescopic boom extended for loading, leveling and digging.
► Only carry out leveling and scraping work when the telescopic boom
is completely retracted.
► When screeding surfaces, ensure that the bucket mode is switched
on.

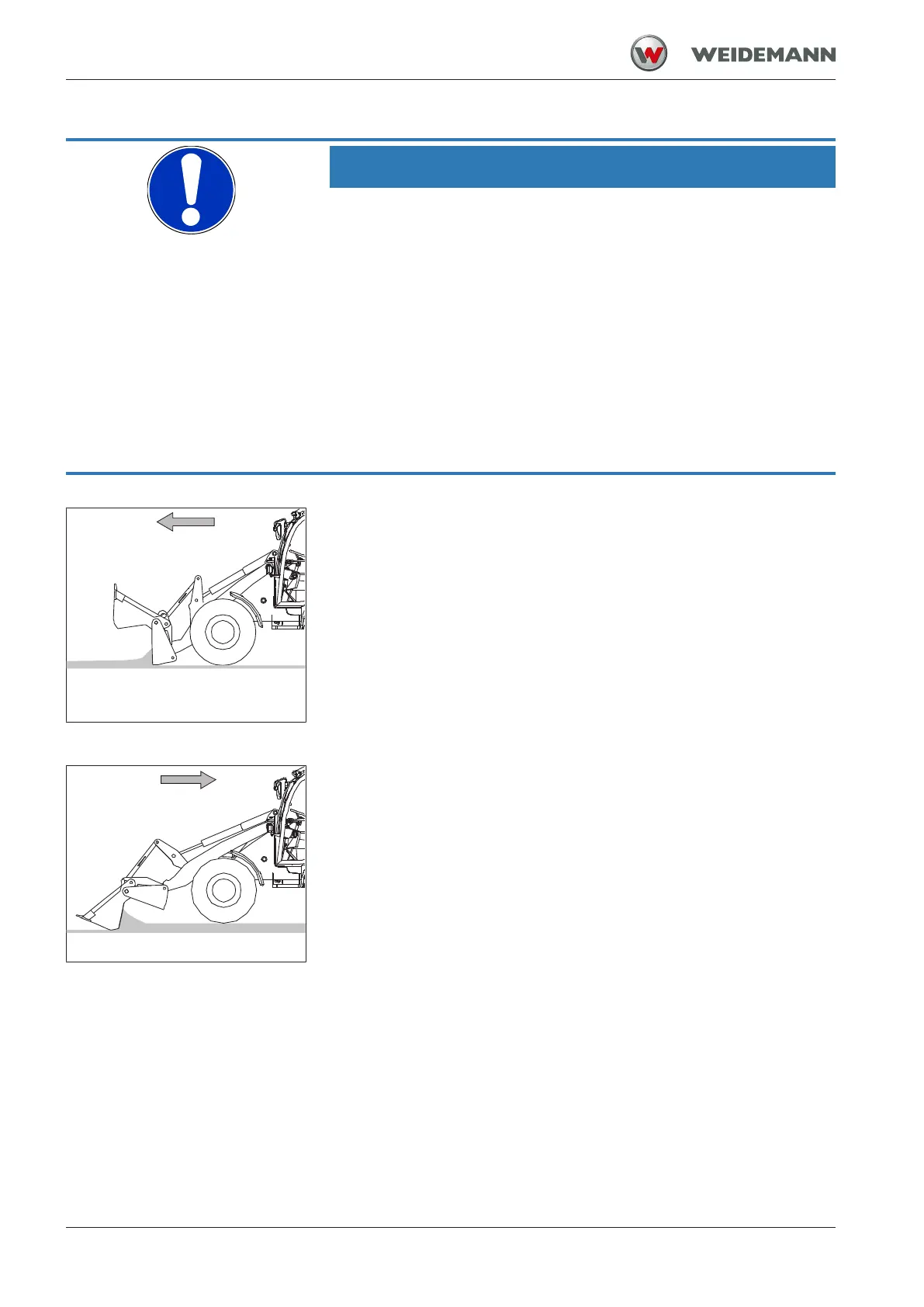

Fig.150: Grading with a 4-in-1
bucket
1. Fold up the front half of the bucket.
2. Lower the bucket to the ground.
3. Set the depth of the layer you want to remove with the lift hydraul-
ics.
4. Set the angle of the rear cutting edge.
ð Grade the surface by performing forward vehicle travel.
Fig.151: Draw material back
Draw material back
1. Fold up the front half of the bucket.
2. Lower the bucket to the ground.
3. Set the angle of the front cutting edge.
ð By reversing, the bucket fills slowly.
