Transportation
Loading the vehicle 8.2
169
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
Carry out loading
1. Carefully drive the vehicle onto the middle of the transport vehicle.
2. Lower the loader unit until the attachment rests on the loading sur-
face of the transport vehicle.
3. Switch the drive system to neutral.
4. Apply the parking brake.
5. Switch off the ignition and remove the starting key.
6. Exit the cab, close doors, windows and engine cover, lock and un-
lock.
7. Block the articulated pendulum joint see Blocking articulated pendu-
lum joint on page 169
8. Tie down the vehicle see Tying down the vehicle on page 172.
8.2.3
Blocking articulated pendulum joint
NOTICE
Vehicle damage.
The vehicle may be damaged by steering movements if the articulated
pendulum joint is blocked.
► Do not operate the steering system when the articulated pendulum
joint is blocked.
► First park the vehicle on the transport vehicle, then set the blocking
device.
► After the transport, first release the block, then drive the vehicle
down from the transport vehicle.

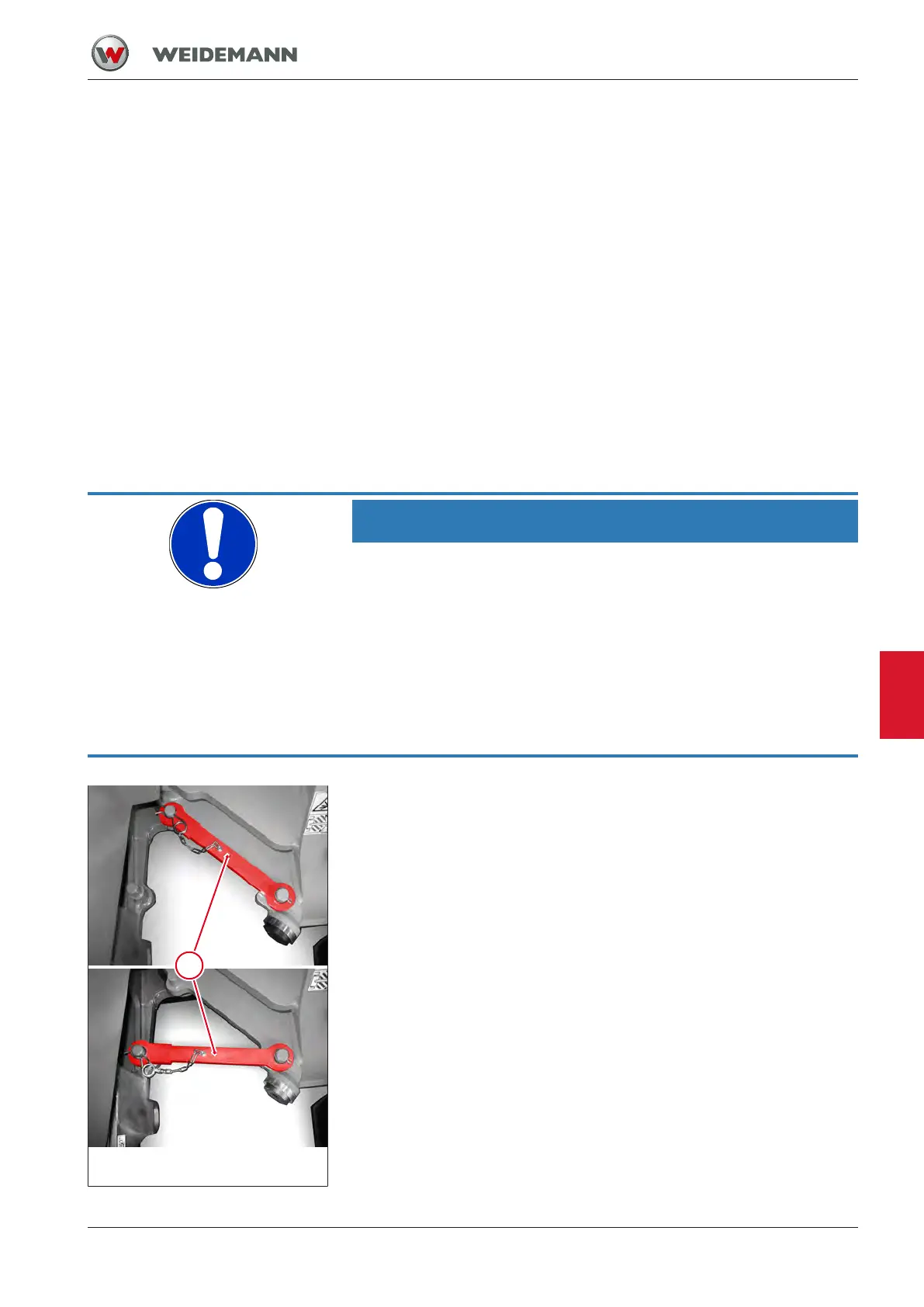

Fig.165: Block articulated pendulum
joint
Blocking device 1 is attached to the front of the vehicle by bolts and se-
cured with spring clips.
1. Park the vehicle in a straight line.
2. Remove the spring plugs.
3. Fasten the blocking device in the blocking position.
ð Position the blocking device on the pin on the rear chassis section
and if necessary, adjust with the steering wheel, and the engine
stopped, until the blocking device is positioned on the pin on the
front chassis section.
4. Secure the blocking device with the spring plugs.
Remove the blocking device in the reverse order.
