Commissioning en
Installation and operating instructions Wilo-Control EC/ECe-Booster 71

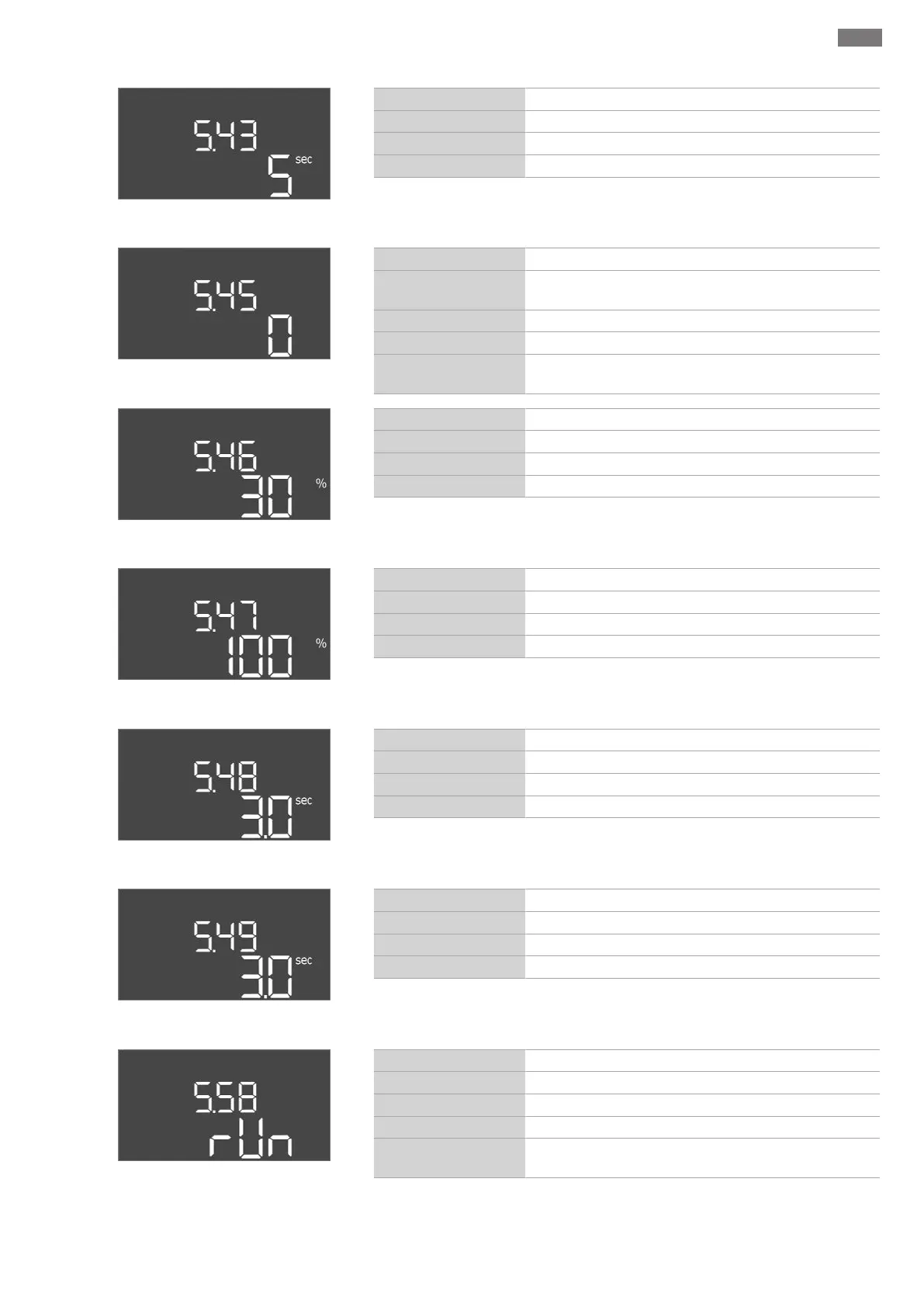

Fig.38: Menu 5.43
Menu no. 5.43
Description “Pump kick” running time
Value range 0 … 60s
Factory setting 5s
Fig.39: Menu 5.45
Menu no. 5.45
Description
Behaviour during sensor fault – number of pumps to be
switched on
Value range 0 … 3*
Factory setting 0
Explanation
* Maximum value dependent on number of pumps set
(Menu 5.02).
Fig.40: Menu 5.46
Menu no. 5.46 (Control ECe-Booster only)
Description Minimum speed of the pumps
Value range 0 … 50%
Factory setting 30%
Fig.41: Menu 5.47
Menu no. 5.47 (Control ECe-Booster only)
Description Maximum pump speed
Value range 80 … 100%
Factory setting 100%
Fig.42: Menu 5.48
Menu no. 5.48 (Control ECe-Booster only)
Description Acceleration ramp for frequency converter
Value range 0 … 10s
Factory setting 3s
Fig.43: Menu 5.49
Menu no. 5.49 (Control ECe-Booster only)
Description Deceleration ramp for frequency converter
Value range 0 … 10s
Factory setting 3s
Fig.44: Menu 5.58
Menu no. 5.58
Description Collective run signal (SBM) function
Value range on, run
Factory setting run
Explanation
“on”: switchgear ready for operation
“Run”: At least one pump is running.
