Wilo Control EC-Booster User Manual

en Commissioning
72 WILO SE 2019-07

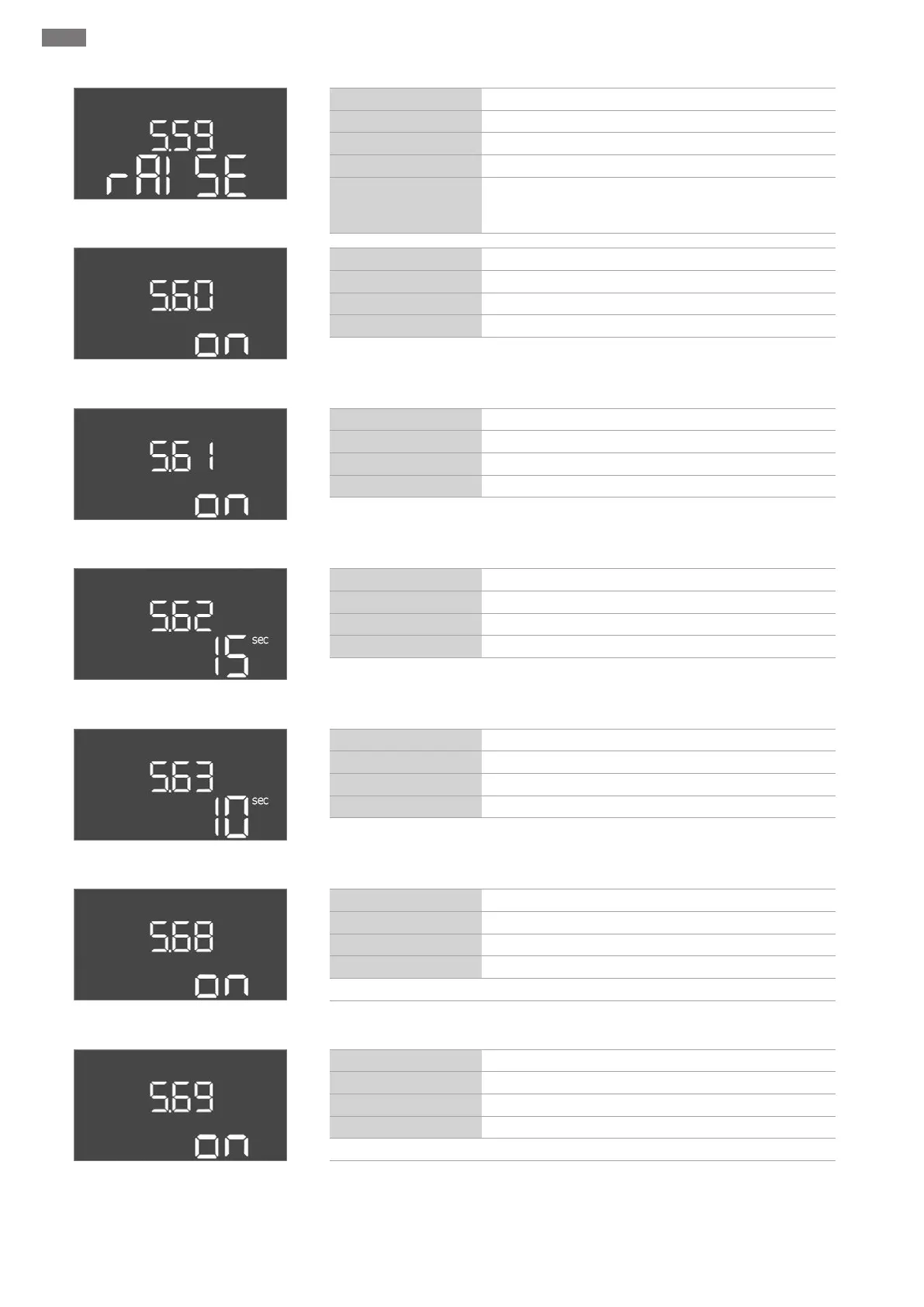

Fig.45: Menu 5.59
Menu no. 5.59
Description Collective fault signal (SSM) function
Value range fall, raise
Factory setting raise
Explanation
“fall”: The relay drops out. This function can be used to
monitor the mains voltage supply.
“raise”: The relay picks up.
Fig.46: Menu 5.60
Menu no. 5.60
Description Pump cycling
Value range on, off
Factory setting on
Fig.47: Menu 5.61
Menu no. 5.61 (Control ECe-Booster only)
Description Zero-flow test
Value range on, off
Factory setting on
Fig.48: Menu 5.62
Menu no. 5.62
Description Dry-running protection: Switch-off time delay
Value range 0 … 180s
Factory setting 15s
Fig.49: Menu 5.63
Menu no. 5.63
Description Dry-running protection: Reactivation time delay
Value range 0 … 1800 s
Factory setting 10s
Fig.50: Menu 5.68
Menu no. 5.68 (Control EC-Booster only)
Description Mains connection rotating field monitoring On/Off
Value range on, off
Factory setting on
NOTICE!Switch off during alternating current connection!
Fig.51: Menu 5.69
Menu no. 5.69 (Control EC-Booster only)
Description Motor current monitoring On/Off
Value range on, off
Factory setting on
NOTICE!Switch off during alternating current connection!
