Commissioning en
Installation and operating instructions Wilo-Control EC/ECe-Booster 73
Menu 1: Values for switching on and off

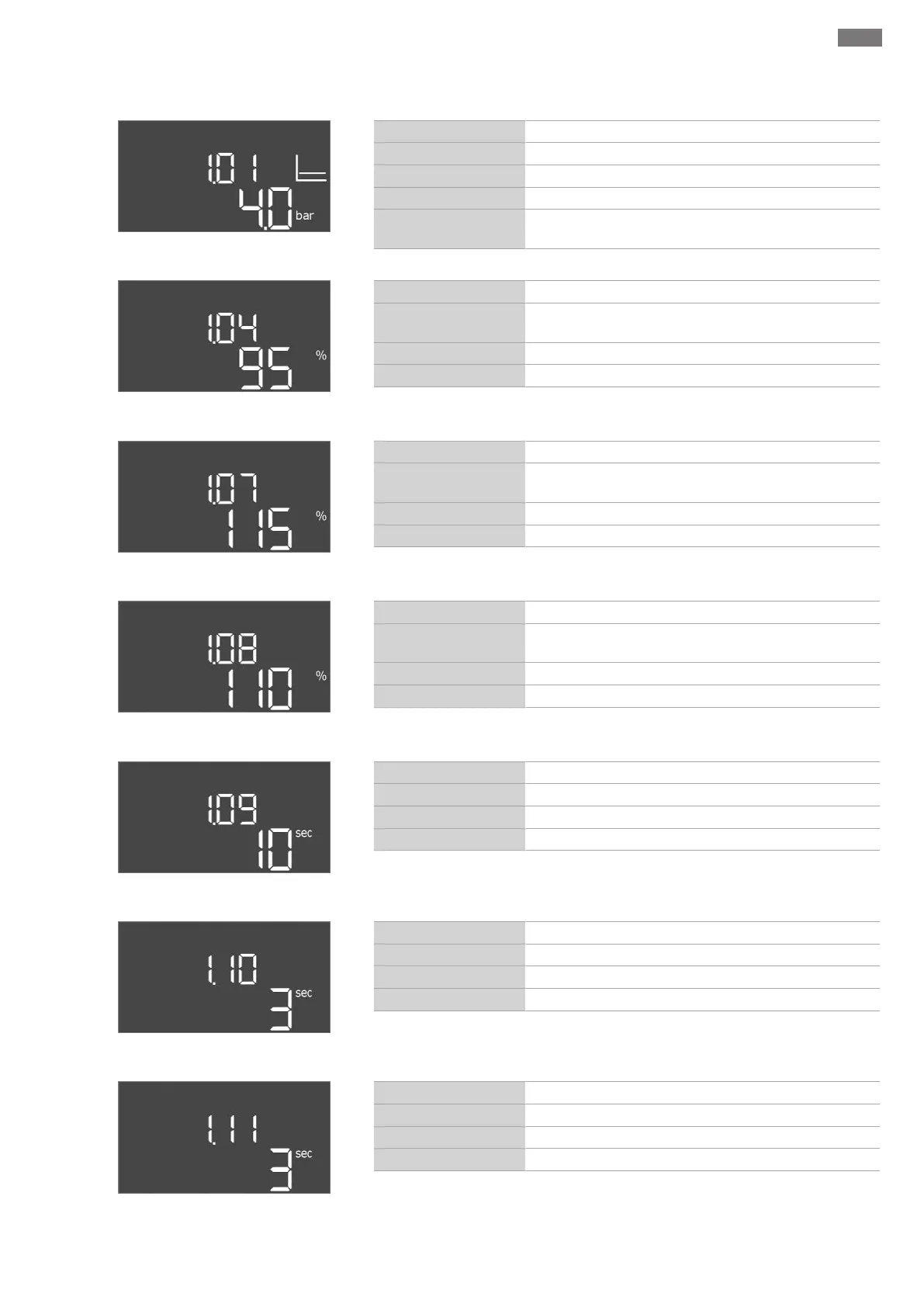

Fig.52: Menu 1.01
Menu no. 1.01
Description Pressure setpoint
Value range 0.1 … 25.0*bar
Factory setting 4bar
Explanation
* The maximum value is dependent on the set measure-
ment range of the pressure sensor (Menu 5.11).
Fig.53: Menu 1.04
Menu no. 1.04
Description
Activation threshold of the pump in % of the pressure set-
point
Value range 75 … 99%
Factory setting 95%
Fig.54: Menu 1.07
Menu no. 1.07
Description
Base-load pump deactivation threshold in % of pressure
setpoint
Value range 101 … 125%
Factory setting 115%
Fig.55: Menu 1.08
Menu no. 1.08 (Control EC-Booster only)
Description
Peak-load pump deactivation threshold in % of pressure
setpoint
Value range 101 … 125%
Factory setting 110%
Fig.56: Menu 1.09
Menu no. 1.09
Description Base-load pump switch-off delay
Value range 0 … 180s
Factory setting 10s
Fig.57: Menu 1.10
Menu no. 1.10
Description Peak-load pump activation delay
Value range 0 … 30s
Factory setting 3s
Fig.58: Menu 1.11
Menu no. 1.11
Description Peak-load pump switch-off delay
Value range 0 … 30s
Factory setting 3s
