WinGD X72DF User Manual

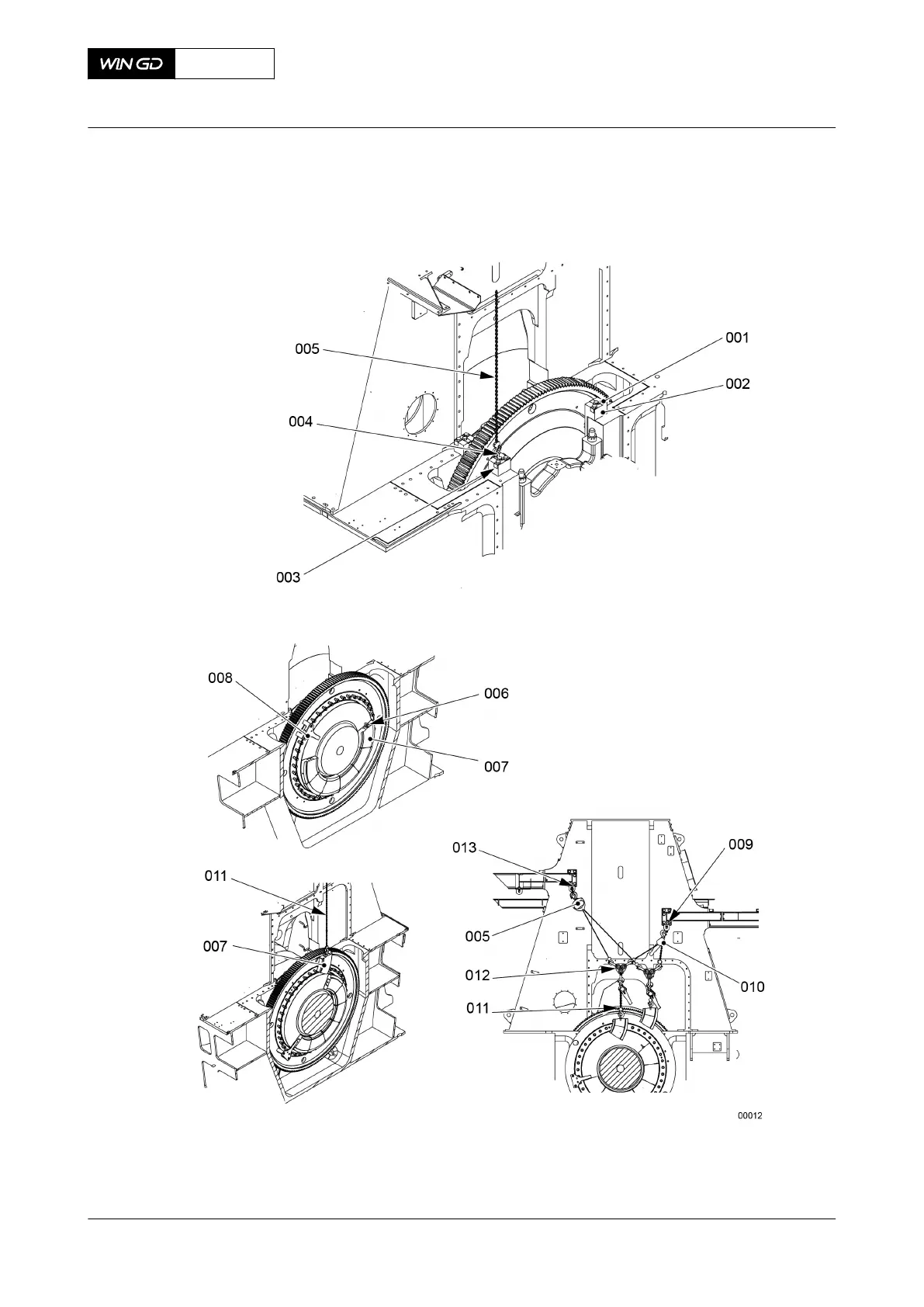

Fig 6-21 Thrust pad - install
15 Install the temperature sensors removed before.
16 Do a check of the clearances between the arbor supports and the thrust pads, refer to
section 6.4.2 Thrust bearing - do a check of the axial clearance with a dial gauge or
X72DF
AA00-1203-00AAA-720A-A
Maintenance Manual Thrust bearing - install the pads
Winterthur Gas & Diesel Ltd.
- 148 - Issue 002 2020-10
