WinGD X72DF - Flow Limiting Valve and Fuel Rail

To Next Page

To Previous Page

13 Install the leakage pipes (002 and 003, Figure 10-34) to the flow limiting valve (004).

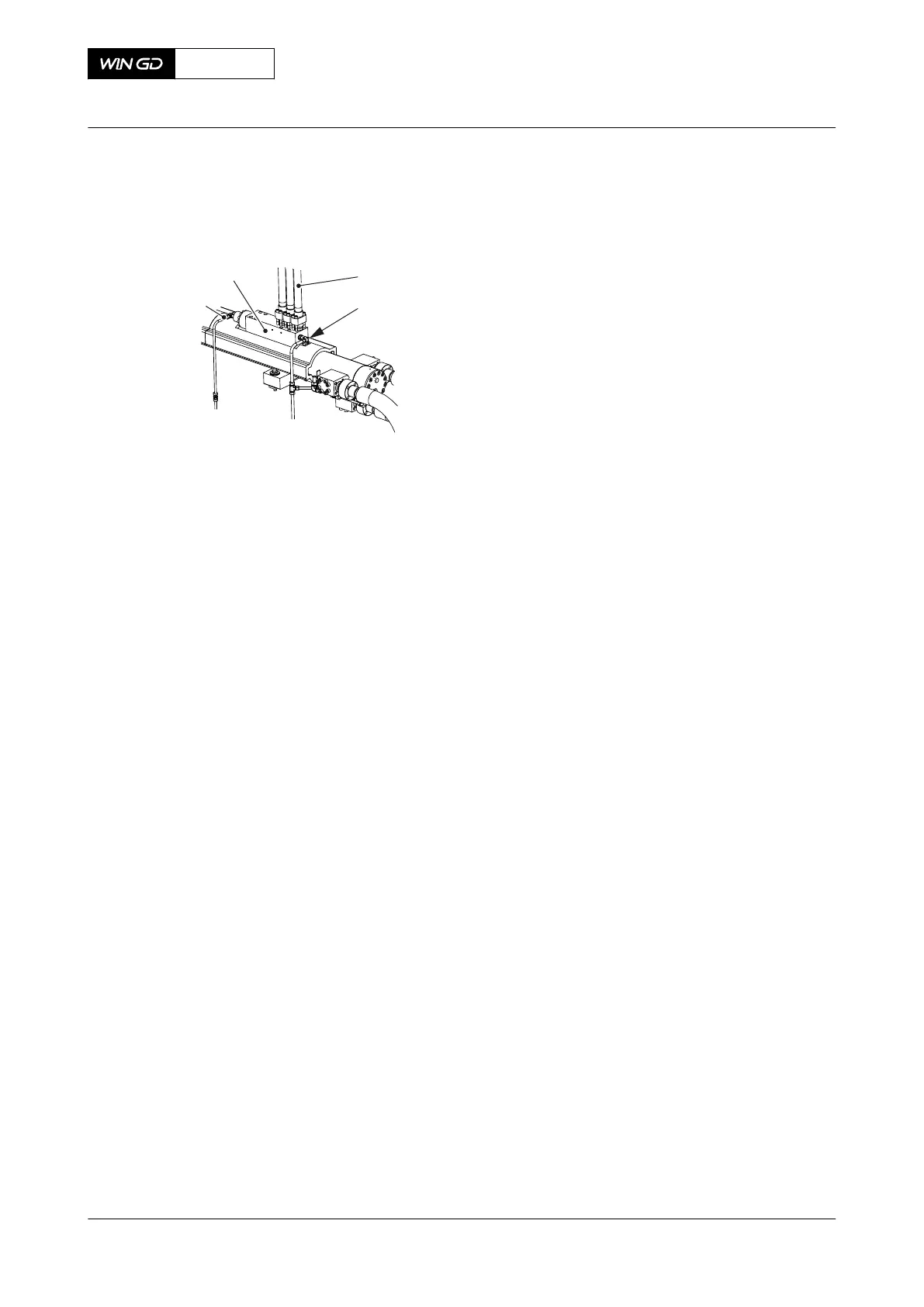

Fig 10-34 Flow limiting valve and fuel rail

WCH03227

001

004

Note: Some parts can look different.

002

00505

003

14 Install the HP fuel pipes (001), refer to section 13.3.4 HP fuel pipe (fuel rail to injection

valve) - install.

15 Operate the engine for a minimum of one hour with marine diesel oil.
